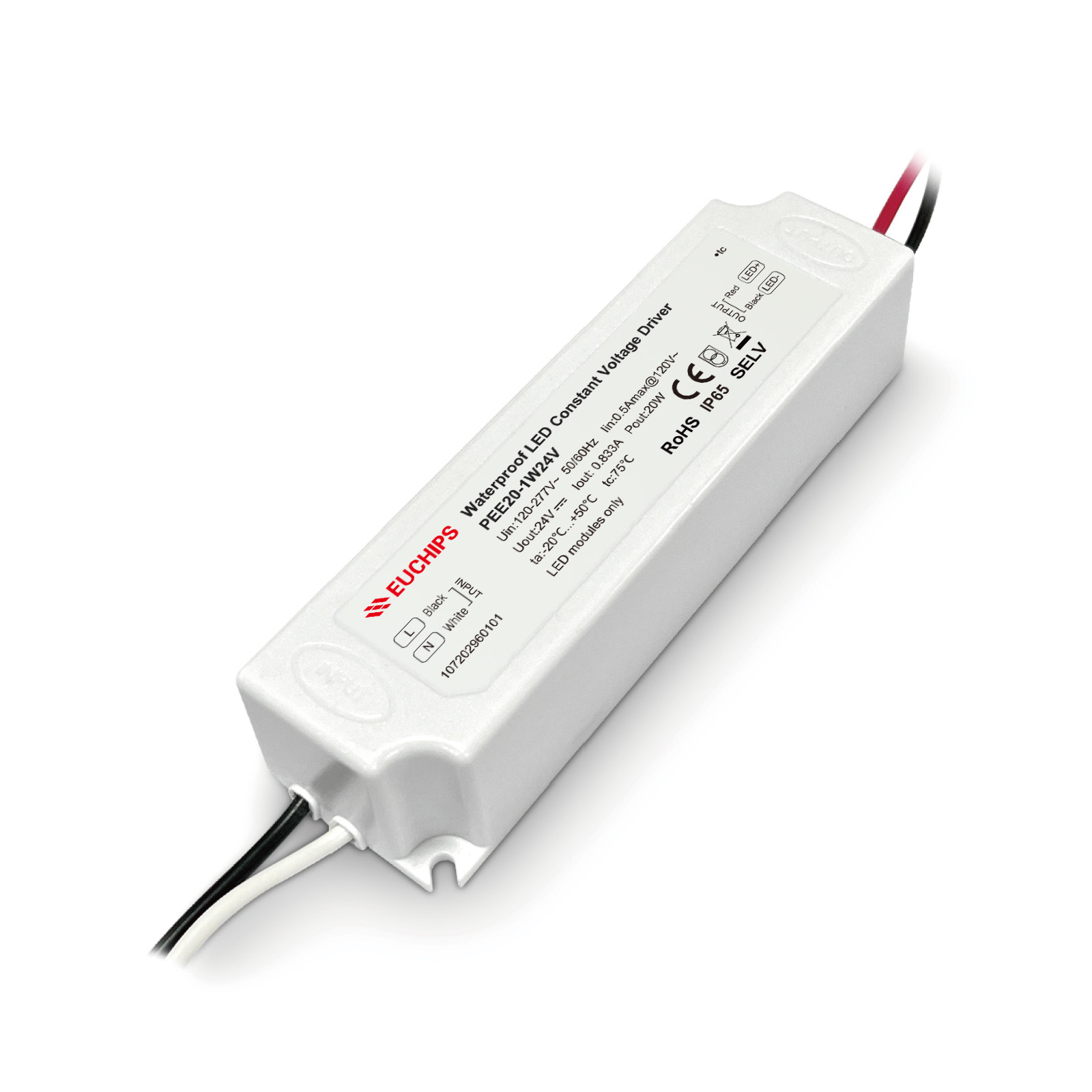

20W 24VDC Non-dimmable Waterproof CV Driver PEE20-1W24V
20W 24VDC Non-dimmable Waterproof CV Driver PEE20-1W24V
Features
·Insolated PC design
·Isolated design,safe and reliable
·Protections: Short circuit, Over load, over current
·Protection grades is as high as IP65
·5 years warranty
Technical Parameters
| Model | PEE20-1W24V | |
|
Input |
Efficiency | ≥86%@230VAC, Full load |
| Voltage | 120VAC-277VAC | |
| Frequency | 50/60Hz | |
| Current | 0.5Amax@120VAC | |
| No load power | <0.5W | |
| Inrush Current | Cold start,18A@230VAC 20us | |
|
Output |
Current/Voltage/Power | 0.833A/24VDC/20W |
| Channel | 1 | |
| Voltage Accuracy | ±5% | |
| No load output voltage | 25.2VDC max | |
| Turn On Delay Time | ≤0.5s, at230Vac (When the light begins to shine) | |
| Protection | Short Circuit | Auto recovery when failure is removed |
| Over Load | Protection, troubleshooting output normal | |
| Over Current | Protection, troubleshooting output normal | |
|
Safety & EMC |
Lightning Surge | L-N:2kV |
| Withstand Voltage | I/P-O/P:3750VAC/1min/5mA | |
| Safety Standards | EN61347-1 EN61347-2-13 UL1310 | |
| EMC | EN55015，FCC Part 15 Class B | |
|
Others |
Working Temp. | -20℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃ 20-90%RH | |
| Tc | 75℃ | |
| Material | PC | |
| IP Rating | IP65 | |
| Lifetime | 50 000h@tc:65℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 153g±5%/PCS; 60PCS/Carton; 9.5kg±5%/Carton; Carton Size: 282*230*140mm(L*W*H) | |
| Dimension | 118*35*26mm(L*W*H) | |
