20W 350~500mA Non-Dimmable CC LED Driver SCS20-1HMC
20W 350~500mA Non-Dimmable CC LED Driver SCS20-1HMC

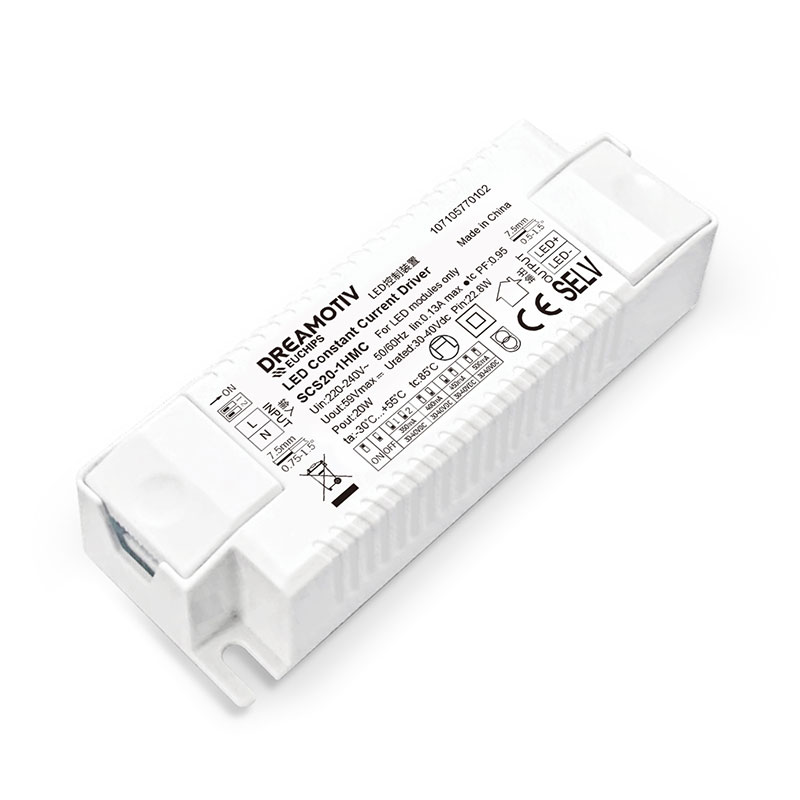

SCS20-1HMC is a 20W constant current LED driver, and the output current can be adjusted by dip. The end cover shells on both sides of the shell can be disassembled, and the independent type and the built-in type can be switched.
Features
· Single channel constant current output
· Short circuit, overload, overvoltage protection, V0 level flame-retardant shell
· Efficiency up to 92%
· End cover shell disassembly design, easy to install in narrow spaces
· No load power consumption ≤ 0.5W
· Lifespan of 50,000 hours, 5-year warranty
· Protection level IP20, suitable for indoor ClassⅡ lighting fixtures
Technical Parameters
| Model | SCS20-1HMC | ||
| Input | Input Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | ||
| Input Current | 0.13Amax@230VAC | ||
| Power Factor | 0.95@230VAC, Full load | ||
| Efficiency | 92%@230VAC, Full load | ||
| THD | 10%@230VAC, Full load | ||
| Standby power | <0.5W | ||
| No load power | <0.5W | ||
| Inrush Current | Cold start, 5.48A@230VAC 50us | ||
| Output | Current/Voltage/power | 350mA/30-40VDC/14W 400mA/30-40VDC/16W 450mA/30-40VDC/18W 500mA/30-40VDC/20W | |
| Output power range | 10W~21W | ||
| Current Accuracy | ±5% | ||
| Line Regulation | ±3% | ||
| Load Regulation | ±3% @Full load | ||
| Turn on delay Time | 0.5s, @230Vac (When the light begins to shine) | ||
| Protection | Short circuit Protection | Hiccup, self recovering after troubleshooting | |
| OverVoltage Protection | self recovering after troubleshooting | ||
| Overload Protection | Limit the output power to 110% -150% of the rated power | ||
| Safety& EMC | Surge | L-N:1KV | |
| Withstand Voltage | I/P-O/P: 3750VAC/1min/5mA | ||
|
Safety Standards |
CCC (China) GB19510.1，GB19510.14 TUV (Germany) EN61347-1，EN61347-2-13，EN62493 | ||
| CB (CBmember states) IEC61347-1，IEC61347-2-13 CE (European Union) EN61347-1，EN61347-2-13，EN62384 | |||
| RCM (Australia) AS 61347-1，AS 61347-2-13 ENEC (Europe) EN61347-1，EN61347-2-13，EN62384 | |||
|
EMC Emission |
CCC (China) GB/T17743，GB17625.1 BIS (India) IS15885 | ||
| CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547 KC (Korea) K00032 KN61000-3-2 KN61000-3-3 | |||
| RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547 UKCA (UK) BS EN61347-1，BS EN61347-2-13，BS EN62384 | |||
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | ||
| Environment | Working Temp. | -30℃~55℃ | |
| Storage Temp. | -40℃~85℃ | ||
| Storage Humidity | 20-90%RH (No condensation) | ||
| Others | RoHS | Comply with 2015/863/EU | |
| tc | 85℃ | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 50,000h@tc:85℃ | ||
| Warranty Condition | 5years | ||
| Switch Cycle | 25,000times | ||
| Body size | 115*41*28mm (L*W*H) | ||
| Packing(weight) | Net weight: 90g±5%/PCS; 100PCS/Carton; 9.5kg±5%/Carton; Carton Size: 475*220*165mm(L*W*H) | ||
| Noise | In a quiet environment，No noise outside 30-50cm | ||
| Comply with certification | CB, CE, CCC, BIS, KC, RCM, UKCA | ||
| Input Wire | 0.75. 1.5mm² (Wire outer diameter: Max:7mm, Min3mm) | ||
| Output Wire | 0.5. 1.5mm² (Wire outer diameter: Max:7mm, Min2mm) | ||
| Remark | All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions. | ||
