20W 350~700mA*1ch 0/1-10V CC Driver EULP20A-1HMC
20W 350~700mA*1ch 0/1-10V CC Driver EULP20A-1HMC

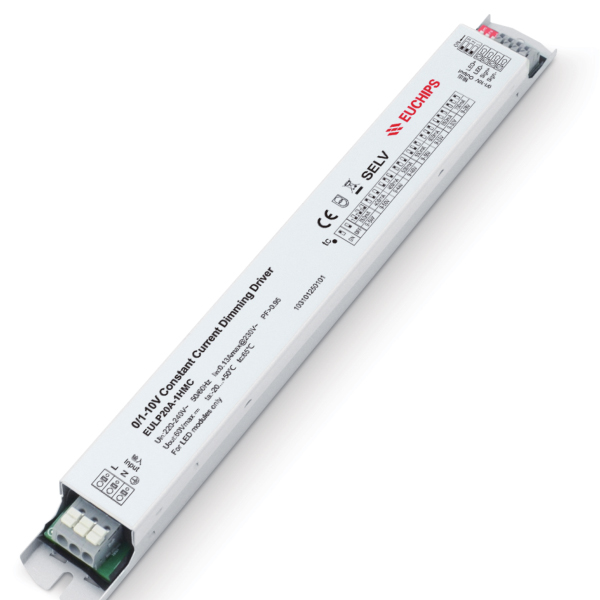

EULP20A-1HMC is a constant current output mode LED driver. The output current can be easily set via DIP switch, and the driver can be adjusted by the external 0/1-10VDC active signal, PWM signal , or adjustable resistance to achieve the smooth dimming effect.
Features
· Single channel output, output current level selectable by DIP S.W.
· Support 3-in-1 dimming mode(0/1-10V active signal, adjustable resistance, PWM)
· High input voltage of 220VAC ~ 240VAC
· High efficiency up to 85%
· Built-in active PFC function
· 100% output when no dimming signal input, can be used as normal power supply
· Dimming effect smooth, no flicker
· Protections: Short circuit, over load, Over Voltage
· Suitable for indoor LED lighting application, such as down light, panel light, and so on
Technical Parameters
| Model | EULP20A-1HMC | |
| Input | Efficiency | ≥85%@230VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| AC Current(max) | 0.13Amax@230VAC | |
| Standby power | <0.5W | |
| Inrush Current(max) | Cold start,14A(twidth=116us measured at 50% Ipeak)@230VAC | |
| Output | Current(mA)/Voltage (VDC) Power(W) | 350mA/9-54VDC/15.75W
400mA/9-50VDC/19.8W 450mA/9-44VDC/20W 500mA/9-40VDC/20W 550mA/9-36VDC/19.8W 600mA/9-33VDC/19.8W 650mA/9-30VDC/19.5W 700mA/9-28VDC/19.6W |
| Ripple Current | <3% | |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| No load output voltage | 60V Max | |
| Function | Dimming Type | 0/1-10V |
| Dimming Range | 1%-100% Dimming to off | |
| Protection | Short circuit | Close output，recovers automatically after fault removed |
| Over Voltage | Reduced current hiccup protection | |
| Over Load | Reduced current hiccup protection | |
|
Safety& EMC |
Surge | L-N 1KV L-PE 2KV N-PE 2KV |
|
Withstand Voltage |
INPUT-OUTPUT 3750Vac/1min/<5mA ; INPUT-PE 1500Vac/1min/<5mA ; OUTPUT-PE 500Vac/1min/5mA ; OUTPUT-SIGN 1500Vac/1min/<5mA | |
| Safety Standards | EN61347, GB19510 | |
| EMC Eission | EN50515, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Others | Working Temp. | -20℃ ~50℃ |
| Storage Temp., Humidity | -40 ~85 20-90%RH | |
| tc | 65℃ | |
| Material | Metal | |
| IP Rating | IP20
℃ |
|
| Lifetime | 50,000h@tc:65℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing(weight) | Net weight: 230g±5%/PCS; 50PCS/Carton; 12kg±5%/Carton; Carton Size:502*338*149mm(L*W*H) | |
| Dimension | 280*30*21mm（L*W*H） | |
