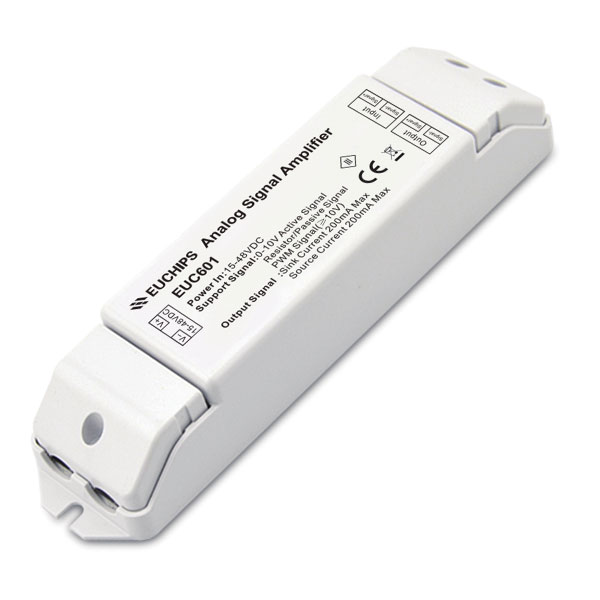

0-10V Analog Signal Amplifier EUC601
0-10V Analog Signal Amplifier EUC601
Features
Amplify driving ability of 0-10V signal, or convert PWM, passive signal to 0-10V signal
Support 0-10V active signal, resistance/passive signal, and PWM signal
High quality amplifier, output current of 200mA
Used for the situation that the main controller’s driver ability isn’t enough
Technical Parameters
| Model | EUC601 | |
| Output | Accuracy Channels | 1 |
| Voltage | 0-10VDC | |
| Current | 200mA | |
| Input | Voltage | 15-48VDC |
| Signal | 0-10V active signal, resistance/passive signal, or PWM signal | |
| Others | Dimension | 168*39.4*30 mm（L*W*H) |
| Packing Size | 470*200*220 mm(L*W*H),50pcs/6.0kg/Carton | |
| G.W. | 90g | |
| Working temp. | -20℃~40℃ | |
| Relative Humidity | 20~90% RH | |
