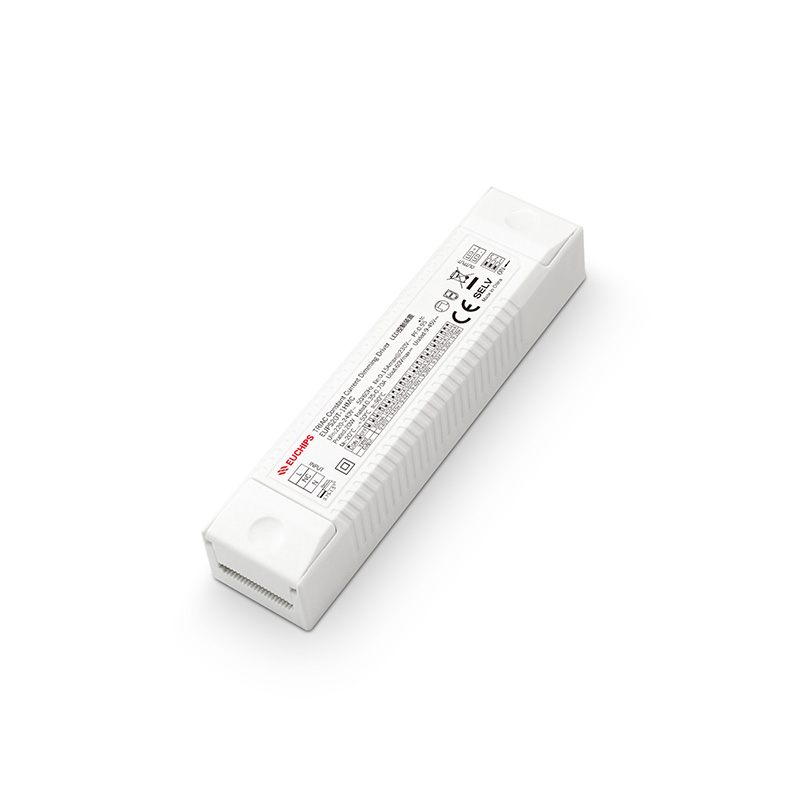

20W 350~700mA*1ch Phase-cut CC Driver EUPS20T-1HMC

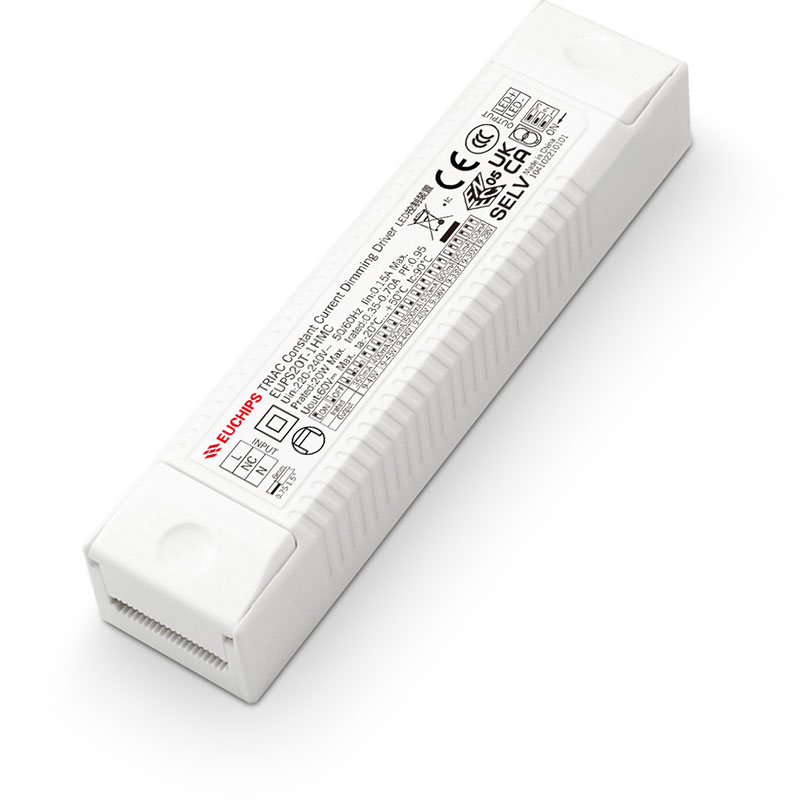

20W 350~700mA*1ch Phase-cut CC Driver EUPS20T-1HMC
Features
· Single channel constant current output, multi-level current optional
· Support Leading edge (Phase-Cut) and Trailing edge (ELV)
· Short circuit, overload, overvoltage, V0 flame retardant housing
· High voltage input: 220VAC ~ 240VAC
· Protection level IP20, suitable for indoor ⅠⅡⅢ lamps
· Dimming range 1%-100% dimming, smooth dimming without step sense and stroboscopic
· Built-in PFC chip to improve energy efficiency and reduce pollutio
· Life of 50,000 hours, 5 years warranty
· Suitable for LED indoor lamps, such as downlights, panel lights, etc
Technical Parameters
| Model | EUPS20T-1HMC | ||
| Input | Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | ||
| Efficiency | ≥80%@230VAC, full load | ||
| PF | ≥0.95@230VAC, full load | ||
| Current | 0.15A max | ||
| THD | <10%@230VAC, full load | ||
| Inrush current | Cold start, 6.8A@230VAC 12us | ||
| Standby power | ≤1.5W | ||
| No load power | ≤1.5W | ||
| Turn on Time | ≤ 0.75 s, at230Vac (When the light begins to shine) | ||
| Output | Current/Voltage/Power | 350mA/9-45VDC/15.75W 400mA/9-45VDC/18W
450mA/9-44VDC/20W 500mA/9-40VDC/20W 550mA/9-36VDC/20W 600mA/9-33VDC/20W 650mA/9-30VDC/20W 700mA/9-28VDC/20W |
|
| Channel | 1 | ||
| Current Accuracy | ± 5% (accuracy below 200mA ± 7%) | ||
| Ripple current | ±3% | ||
| No load output voltage | 59VDC max | ||
| Function | Dimming type | TRIAC/ELV | |
| Dimming range | 1% -100% dimming until turned off | ||
| Dimming curve | logarithm | ||
| Flicker | Flicker-free | ||
| Protection | Short circuit | Hiccup Protection, Auto-recovery after Fault Clearance | |
| Over load | Reduce current hiccup protection, troubleshoot and output normally | ||
| Over Voltage | Reduce current hiccup protection, troubleshoot and output normally | ||
| Safety&EMC | Surge | L-N:1KV | |
| Safety standards | I/P-O/P: 3000VAC/1min/5mA | ||
| Safety standards | CCC (China) GB19510.1，GB19510.14 TUV (Germany) EN61347-1, EN61347-2-13, EN62493 | ||
| CB (CB member states) IEC61347-1，IEC61347-2-13 CE (European Union) EN61347-1, EN61347-2-13, EN62384 | |||
| RCM (Australia) AS 61347-1, AS 61347-2-13 ENEC (Europe) EN61347-1, EN61347-2-13, EN62384 | |||
| EMC Eission | CCC (China) GB/T17743, GB17625.1 | ||
| CE (European Union) EN55015, EN61000-3-2, EN61000-3-3, EN61547 | |||
| RCM (Australia) EN55015, EN61000-3-2, EN61000-3-3, EN61547 | |||
| EMC | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | ||
| Insulation Resisance | 5Mfi | ||
| Others | Working temp. | -20℃~50℃ | |
| Storage Temp., Humidity | -40℃~85℃ 20-90%RH (No condensation) | ||
| tc | 90℃ | ||
| Material | PC | ||
| IP rating | IP20 | ||
| Lifetime | 50,000h@tc:90℃ | ||
| Warranty | 5 years | ||
| Switch cycle | >25,000times | ||
| Dimension | 125*29.6*22.6mm(L*W*H) | ||
| Packing size | Net weight: 100g±5%/PCS; 120PCS/Carton; 12.5kg±5%/Carton; Carton Siz: 433*230*200mm(L*W*H) | ||
| Remarks | All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions. | ||
