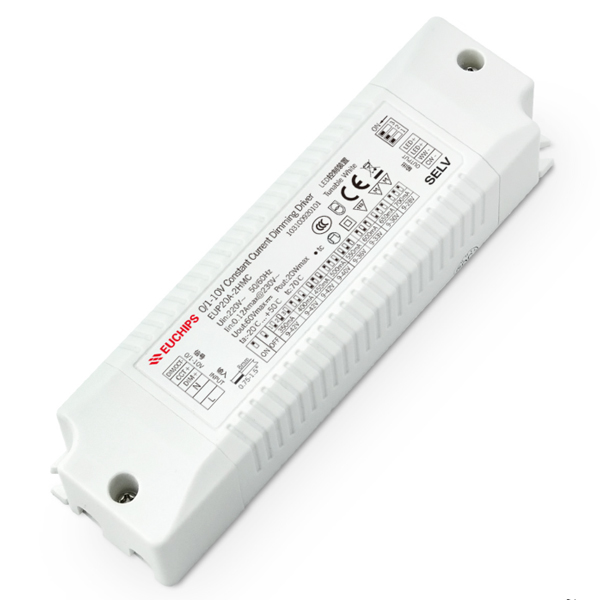

20W 350~700mA*2ch 0/1-10V CC Driver EUP20A-2HMC

Short Description:

  • Item No.: EUP20A-2HMC
  • Input Voltage: 220-240VAC
  • Output Current: 350/400/450/500/550/600/650/700mA
  • Output Voltage: 9-42VDC
  • Output Power: 20W
  • Dim Mode: 0/1-10V
  • G.W.: 110g
  • Size: 150*43*29mm

Product Detail

Product Tags

20W 350~700mA*2ch 0/1-10V CC Driver EUP20A-2HMC

EUP20A-2HMC is a 20W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch.

Features

·Two channel output, output current level selectable by DIP S.W.
·High efficiency up to 85 %
·Built-in active PFC function
·Protections: Short circuit, over load, over Voltage
·Suitable for indoor LED lighting application, such as down light, panel light, and so on

Technical Parameters

Model EUP20A-2HMC
Input Efficiency >85%@230VAC,Full load
Voltage 220VAC-240VAC
Frequency Range(Hz) 50/60Hz
Power Factor ≥0.95@230VAC,Full load
THD(full load) <10%@230VAC, Full load
AC Current(max) 0.12Amax@230VAC
Standby power <0.5W
Inrush Current(max) Cold start,10A(twidth=14us measured at 50% Ipeak)@220VAC
Output Current(mA)/Voltage (VDC) Power(W) *350mA/9-42VDC/14.7W

400mA/9-42VDC/16.8W

450mA/9-42VDC/18.9W

500mA/9-40VDC/20W

550mA/9-36VDC/19.8W

600mA/9-33VDC/19.8W

650mA/9-30VDC/19.5W

700mA/9-28VDC/19.6W

Ripple Current <3%
Channel 2
Current Tolerance ±5% ; *350mA ±7%
No load output voltage 60V Max
Turn on delay Time <1s, at230Vac
Function Dimming Type 0/1-10V
Dimming Range 0.2%-100% Dimming to off
color temperature 3000k-6000k
Protection Short Circuit Close output, recovers automatically after fault removed
Over Load Close output, recovers automatically after fault removed
over Voltage Close output, recovers automatically after fault removed
Safety& EMC Surge L-N:1KV
Withstand Voltage I/P-O/P: 3750VAC/1min/5mA
Safety Standards EN61347, GB19510
EMC Eission EN55015, EN61000-3-2
EMC Immunity EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
Others Working Temp. -20℃~50℃
Storage Temp., Humidity -40℃~85℃,20-90%RH
tc 70℃
Material PC
IP Rating IP20
Lifetime 50,000h@tc:70℃
Warranty Condition 5 Years
Switch Cycle >25,000 times
Packing(weight) Net weight:  110g±5%/PCS;  50PCS/Carton; 6.3kg±5%/Carton; Carton  Size: 319*254*136mm(L*W*H)
Dimension 150*43*29mm(L*W*H)
