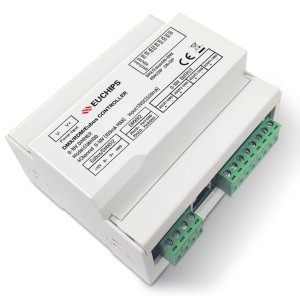

100mA*4ch EUBUS Module EUA410D

Short Description:

  • Item No.: EUA410D
  • Size: 105*88*65mm

Product Detail

Product Tags

100mA*4ch EUBUS Module EUA410D

Welcome to use EUA410D 0-10V dimming module. This product adopts advanced microcomputer control technology to analyze the DMX512(1990)/RDM widely adopted in the world and the self-developed EU-Bus protocol. It supports RDM address redirection and outputs 4 channels DC 0-10V analog control signals at the same time, with the maximum output signal current of each channel being 100mA.

Features

· It conforms to DMX512(1990)/RDM international standard protocol and the self-developed EU-Bus protocol
· Output 4 channels of DC 0-10V analog control signals, and the maximum output signal current of each channel is 100mA
· 0-10V signal plus or minus short connection, the module has short-circuit protection function
· Two signal input interfaces: green terminal and RJ45 network port
· In DMX mode, RDM function is supported, and the address can be changed by upper computer software
· Arbitrarily change DMX address and switch input signal mode by dialing the code key
· Small volume, standard 35mm guide housing, easy to install
· Applicable to smart home, office, school, hotel, stadium, building outdoor scene and other occasions Ming control

Technical parameters

The input voltage 12V
Input control signal DMX512/RDM, EU-BUS signals
Maximum carrying current of 0-10V signal 100 ma * 4 road
The dimming range 1% - 100%.
The equipment size 105*88*65 (L * W * H)
Packing size 125*100*68 (L * W * H)
Working temperature - 20 ℃ and 40 ℃
The quality assurance 3 years
