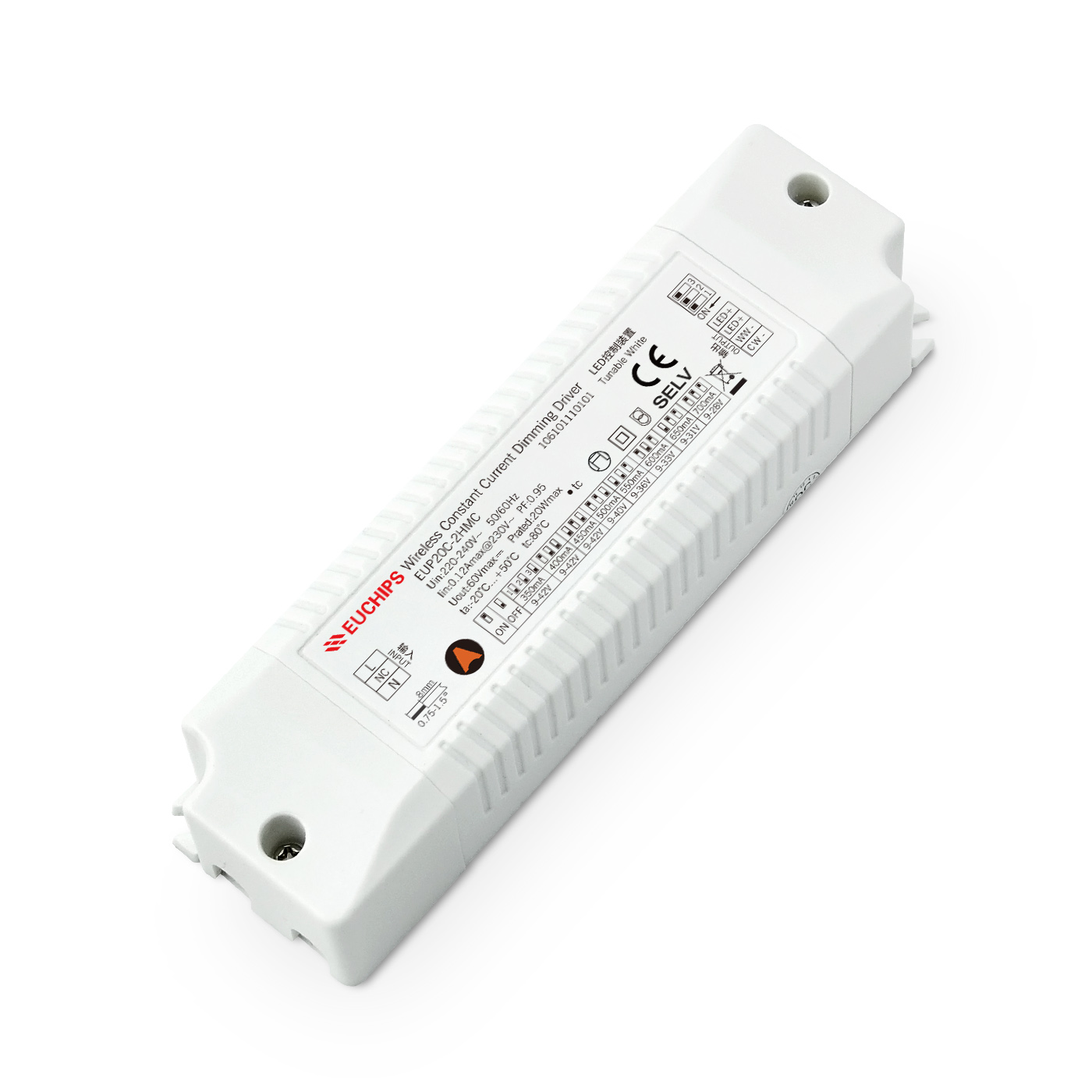

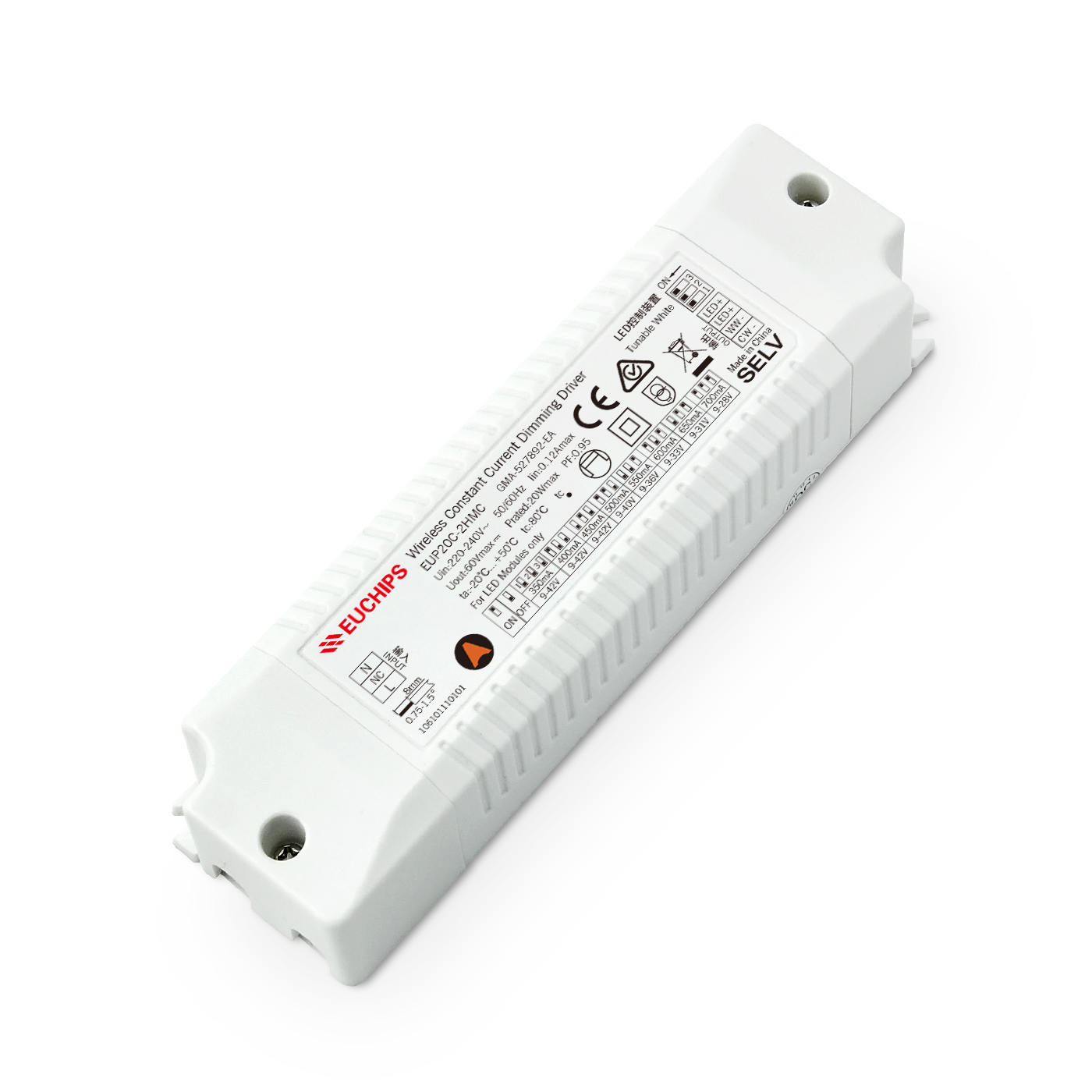

20W 350~700mA*2ch Casambi CC Dimming Driver EUP20C-2HMC

Short Description:

Item No.: EUP20C-2HMC
Output Power: 20W

Download Certificates Download Test Reports

Product Detail

Product Tags

20W 350~700mA*2ch Casambi CC Dimming Driver EUP20C-2HMC

EUP20C-2HMC is a 20W AC/DC constant current mode output LED driver, multiple current selectable by DIP switch, Using Casambi wireless control and dimming, the curve is smooth and flicker free.

Features
· Strong scalability, suitable for small home systems to large commercial or industrial lighting systems
· Flexible wireless control allows for remote management and real-time adjustment of lighting settings
· Good compatibility, able to integrate with various third-party devices and protocols
· User friendliness, easy control and configuration through smart device applications
· Overload, overvoltage, short circuit protection
· 50,000-hour lifespan with a 5-year warranty
· IP20 protection rating, suitable for indoor Class I, II, and III luminaires

Technical Parameters

Model	EUP20C-2HMC
Input	Efficiency	>86%@230VAC,Full load
	Voltage	220VAC-240VAC
	Frequency Range(Hz)	50/60Hz
	Power Factor	≥0.95@230VAC,Full load
	THD(full load)	<10%@230VAC, Full load
	AC Current(max)	0.12Amax@230VAC
	Standby power	<1W
	Inrush Current(max)	Cold start,15A(twidth=14us measured at 50% Ipeak)@230VAC
	Current(mA)/Voltage (VDC)	350mA/9-42VDC/14.7W 400mA/9-42VDC/16.8W 450mA/9-42VDC/18.9W 500mA/9-40VDC/20W
	Power(W)	550mA/9-36VDC/19.8W 600mA/9-33VDC/19.8W 650mA/9-31VDC/20.15W 700mA/9-28VDC/19.6W
	Ripple Current	<3%
Output	Channel	2
	Current Tolerance	±5%
	No load output voltage	60V Max
	Turn on delay Time	<1s, at230Vac
Function	Dimming Type	Bluetooth 4.0 or 5.0 Low Energy(BLE)
	Dimming Range	0.5%-100% Dimming to off
	color temperature	2700K-6500K
Protection	Short Circuit	No output, self-recovery after fault resolution.
	Overload	Hiccup, self-recovery after fault removal.
	Overvoltage	Hiccup, self-recovery after fault removal.
Safety& EMC	Surge	L-N:1KV
	Withstand Voltage	I/P-O/P: 3000VAC/1min/5mA
	Safety Standards	IEC/EN61347-1,IEC/EN61347-2-13,GB19510.1,GB19510.14,
	EMC Eission	EN50515,EN61000-3-2 Class C,IEC61000-3-3,GB/T17743
	EMC Immunity	EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1
Others	Working Temp.	-20℃~50℃
	Storage Temp., Humidity	-40℃~85℃, 20-90%RH
	tc	80℃
	Material	PC
	IP Rating	IP20
	Lifetime	50,000h@tc:70℃
	Warranty Condition	5 Years
	Switch Cycle	>25,000 times
	Packing(weight)	Net weight: 125g±5%/PCS; 50PCS/Carton; 6.65kg±5%/Carton; Carton Size: 319254136mm(LWH)
	Dimension	1504329mm（LWH）
