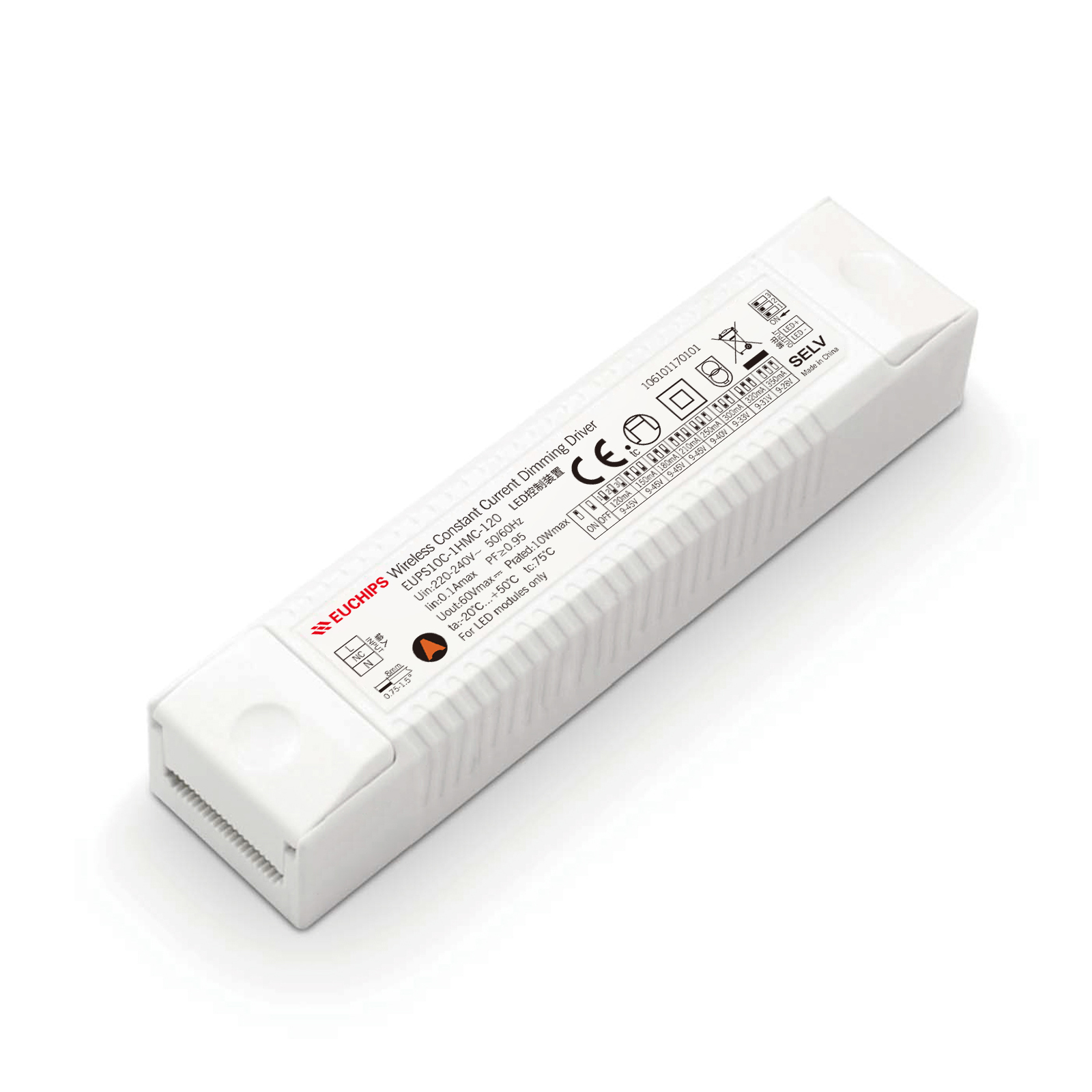

10W 120~350mA Casambi CC Dimming Driver EUPS10C-1HMC-120

Short Description:

Item No.: EUPS10C-1HMC-120
Output Power: 10W

Download Certificates Download Test Reports

Product Detail

Product Tags

10W 120~350mA Casambi CC Dimming Driver EUPS10C-1HMC-120

EUPS10C-1HMC-120 is an LED driver capable of providing 8 current levels. The output current can be easily set through a DIP dip switch. Using Casambi wireless control and dimming, the curve is smooth and flicker-free

Product Features

Strong scalability, suitable for small home systems to large commercial or industrial lighting systems
Flexible wireless control allows for remote management and real-time adjustment of lighting settings
Good compatibility, able to integrate with various third-party devices and protocols
User friendliness, easy control and configuration through smart device applications
Short circuit protection, overload protection, and overvoltage protection
50,000-hour lifespan with a 5-year warranty
IP20 protection rating, suitable for indoor Class I, II, luminaires

Technical Parameters

Model	EUPS10C-1HMC-120
Input	Voltage	220VAC-240VAC
	Frequency Range(Hz)	50/60Hz
	AC Current(max)	0.1Amax@230VAC
	Power Factor	≥0.95@230VAC, Full load
	Efficiency	>80%@230VAC, Full load
	THD	<10%@230VAC, Full load
	Standby power	<0.5W
	Inrush Current(max)	Cold start 4A (twidth=20us measured at 50% Ipeak)@230VAC
Output	Current(mA)/Voltage(VDC)/Power(W)	120mA/9-45VDC/5.4W150mA/9-45VDC/6.75W 180mA/9-45VDC/8.1W 210mA/9-45VDC/9.45W 250mA/9-40VDC/10W 300mA/9-33VDC/9.9W 320mA/9-31VDC/9.92W 350mA/9-28VDC/9.8W
	Ripple Current	±5%
	No-load output voltage	60V Max
	PstLM	≤1
	SVM	≤0.4
	PWM Dimming frequency	20KHz
	Line Regulation	±1% @ Full load
	Load Regulation	±0.5% @ Full load
	Turn on delay Time	<0.75s, at 230Vac (When the lights start to illuminate, reaching 90% brightness)
	Current Selection Table	Remark: Function default setting is 120mA (@switch are all OFF state)
Function	Dimming Type	Bluetooth 4.0 or 5.0 Low Energy (BLE)
	Dimming Range	1%-100% Dimming to off
	Dimming Curve	Linearity
	Flicker free	Flicker free
Protection	Short circuit	Shut down output, Auto-recovery after Fault Clearance
	Overvoltage	Shut down output, Auto-recovery after Fault Clearance
	Overload	Overload protection at ≥120% load; hiccup protection; output returns to normal after fault cleared
	Surge	L-N:1kV
	Withstand Voltage	I/P-O/P: 3000VAC/1min/5mA
Safety & EMC	Safety Standards	CCC (China): GB19510.1, GB19510.14CB (CB member states): IEC61347-1, IEC61347-2-13 CE (European Union): EN61347-1, EN61347-2-13, EN62384 ENEC (Europe): EN61347-1, EN61347-2-13, EN62384 TUV (Germany): EN61347-1, EN61347-2-13, EN62493 RCM (Australia): AS 61347-1, AS 61347-2-13
	EMC Emission	CCC (China): GB/T17743, GB17625.1CE (European Union): EN55015, EN61000-3-2, EN61000-3-3, EN61547 RCM (Australia): EN55015, EN61000-3-2, EN61000-3-3, EN61547
	EMC Immunity	EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
Environment	Working Temp	-20℃~50℃
	Storage Temp	-40℃~85℃
	Storage Humidity	20-90%RH (No condensation)
Others	RoHS	Comply with 2011/65/EU
	tc	75℃ for safety & life
	material	PC
	IP Rating	IP20
	Lifetime	50,000h@tc:75℃
	Warranty Condition	5years
	Switch Cycle	25,000times
	Body size	1253022.6mm (LWH)
	Packing(weight)	Net weight: 63g±5%/PCS; 120PCS/Carton; 8.06kg±5%/Carton; Carton Size: 505237199mm(LWH)
	Noise	In a quiet environment, no noise beyond 30-50cm
Remark	All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25℃ without any special instructions.
