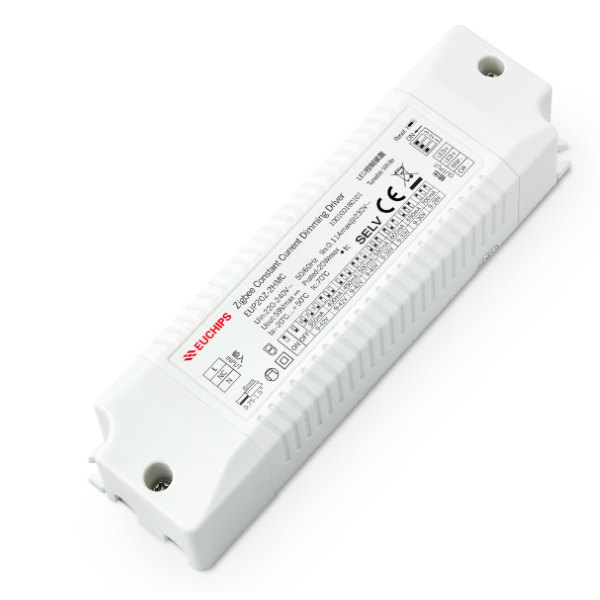

20W 350~700mA*2ch Zigbee CC Driver EUP20Z-2HMC
20W 350~700mA*2ch Zigbee CC Driver EUP20Z-2HMC
EUP20Z-2HMC is a 20W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch.
Features
· Output current level selectable by DIP S.W.
· Wide input voltage of 220VAC ~ 240VAC
· High efficiency up to 85%
· Built-in active PFC function
· Protections: over load, short circuit
· Suitable for indoor LED lighting application, such as down light, panel light, and so on
Technical Parameters
| Model | EUP20Z-2HMC | |
| Input | Efficiency | 85%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| AC Current(max) | 0.11Amax@230VAC | |
| Inrush Current(max) | Cold start,10A@220VAC | |
| Output | Current(mA)/Voltage (VDC) Power(W) | 350mA/9-42VDC/14.7W 400mA/9-42VDC/16.8W 450mA/9-42VDC/18.9W 500mA/9-40VDC/20W 550mA/9-36VDC/19.8W 600mA/9-33VDC/19.8W 650mA/9-30VDC/19.5W 700mA/9-28VDC/19.6W |
| Ripple Current | <3% | |
| Channel | 2 | |
| Current Tolerance | ±5% ; *350mA ±7% | |
| No load output voltage | 59V Max | |
| Turn on delay Time | ≤0.75s | |
| Standby power | <0.7W | |
| Function | Dimming Type | Zigbee |
| Dimming Range | 1%-100% | |
| color temperature | 2700k-6500k | |
| Protection | Short Circuit | No output - recovers automatically after fault removed |
| Over Load | Hiccup, output current Reduced | |
| Safety& EMC | Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3750VAC/1min/5mA | |
| Others | Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃ 20-90%RH | |
| tc | 70℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:70℃ | |
| Warranty Condition | 5 Years | |
| Switch Cycle | >25,000 times | |
| Packing(weight) | Net weight: 110g±5%/PCS; 50PCS/Carton; 6.3kg±5%/Carton; Carton Size: 319*254*136mm(L*W*H) | |
| Dimension | 150*43*29mm（L*W*H） | |
