Features
- Single-channel constant voltage output, maximum output current 0.5A
- Meet DALI protocol IEC 62386
- Short circuit, overcurrent, overload protection
- Enclosure with V-0 Flame-Retardant Rating
- The dimming range is 0.3% to 100%, featuring smooth, step-free dimming and flicker-free operation
- Equipped with an integrated PFC chip, it enhances energy utilization and minimizes grid pollution
- The dimming curve can be customized
- Compact design for easy installation in tight spaces.
- 50,000-hour lifespan with a 5-year warranty
- IP20 protection rating, suitable for indoor Class I, II luminaires
Technical Parameters
| Model |

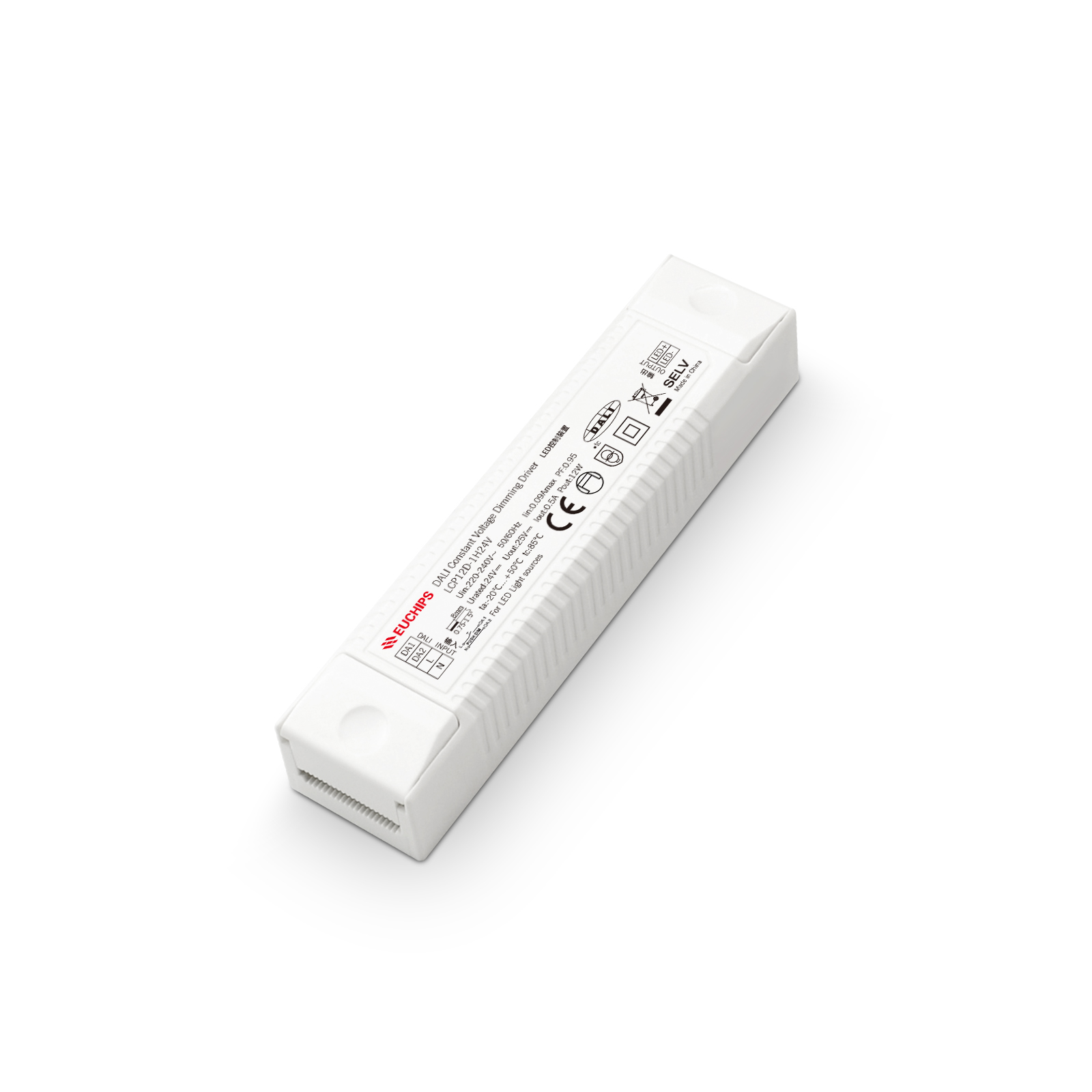

LCP12D-1H24V |
| Input |
Rated Voltage |
220VAC-240VAC |
| Frequency Range(Hz) |
50/60Hz |
| Input Current |
0.09Amax@230VAC |
| Power Factor |
≥0.95@230VAC, Full load |
| Efficiency |
≥79%@230VAC, Full load |
| THD(full load) |
<10%@230VAC, Full load |
| Standby power |
<0.5W |
| No load power |
<0.5W |
| Inrush Current |
Cold start, 6.2A@230VAC 430us |
| Output |
Output Voltage |
24VDC |
| Output Voltage Accuracy |
±3% |
| Output Current |
0.5A |
| Output Power |
12W |
| Output Power Range |
0W~12W |
| PstLM |
≤1 |
| SVM |
≤0.4 |
| PWM Dimming frequency |
20KHz |
| Line regulation |
±2%@Full load |
| Load regulation |
±2%@Full load |
| Turn on delay Time |
<0.75s, at230Vac (When the light begins to shine) |
| Function |
Dimming Type |
DALI2.0 and Touch DIM |
| Dimming Range |
0.3%-100% |
| Dimming curve |
Logarithm |
| Flicker |
Flicker free |
| Protection |
Short circuit |
Without output, troubleshooting results in normal output |
| Overcurrent |
Output Voltage decreases and burps, self recovers after troubleshooting |
| Overload |
Output Voltage decreases and burps, self recovers after troubleshooting |
| Safety & EMC |
Surge |
L-N:2.5kV |
| Withstand Voltage |
I/P-O/P: 3000VAC/1min/5mA I/P-Signal: 1500VAC/1min/5mA O/P-Signal: 500VAC/1min/5mA |
| Safety standard |
CCC (China) GB19510.1，GB19510.14 TUV (Germany) EN61347-1，EN61347-2-13，EN62493 |
|
CB (CB member states) IEC61347-1，IEC61347-2-13 CE (European Union) EN61347-1，EN61347-2-13，EN62384 |
|
RCM (Australia) AS 61347-1，AS 61347-2-13 ENEC (Europe) EN61347-1，EN61347-2-13，EN62384 |
| EMC Emission |
CCC (China) GB/T17743，GB17625.1 |
|
CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547 |
|
RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547 |
| EMC lmmunity |
EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 |
