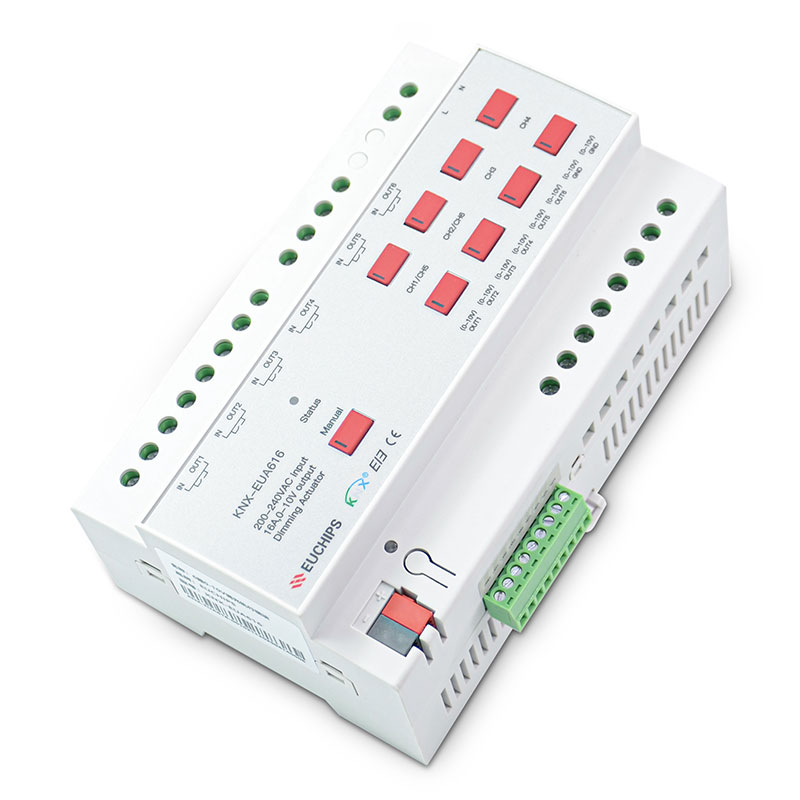

6ch 0-10V Dimming Controller KNX-EUA616
6ch 0-10V Dimming Controller KNX-EUA616
Features
· Control the regulator or electronic ballast through the 0-10V interface output;
· Equipped with 6-channel 16A switch control;
· It has a manual control dimming function;
· It has both relative dimming and absolute dimming functions.
· It has the function of status report feedback;
· It has scene control function;
· It has the function of channel LED indication;
· The selection function of relay switch state after the bus voltage is restored;
· It is equipped with a timed cycle function, which can realize the staircase light function and the cycle flashing function.
· It features 4-channel I/O input function, allowing for the input of commands such as switches, curtains, dimming, and scenes.
Technical Parameters
| Product model | KNX-EUA616 |
| Rated voltage | 200 ~ 240VAC |
| Working frequency | 50/60Hz |
| Bus voltage | 21-30VDC |
| Bus current | ≤12mA |
| Working power | ≤4.2 W |
| Output voltage | 0-10VDC(output type), with a maximum output of 40mA per loop |
| Relay switching current (per circuit) | Pure resistive load :Max 16A; Incandescent lamp :Max 10A; Fluorescent lamp with electronic ballast :Max 4A |
| Shell material | PA66 |
| Size | 145mm X 90mm X 64mm |
| Weight | 0.4KG |
| Installation method | 35mm DIN rail mounting |
| Working temperature | -5°C- 45°C |
| Storage temperature | - 25°C…+55°C |
| Transportation temperature | - 25°C-…+70°C |
| Relative humidity | Max 90% |
