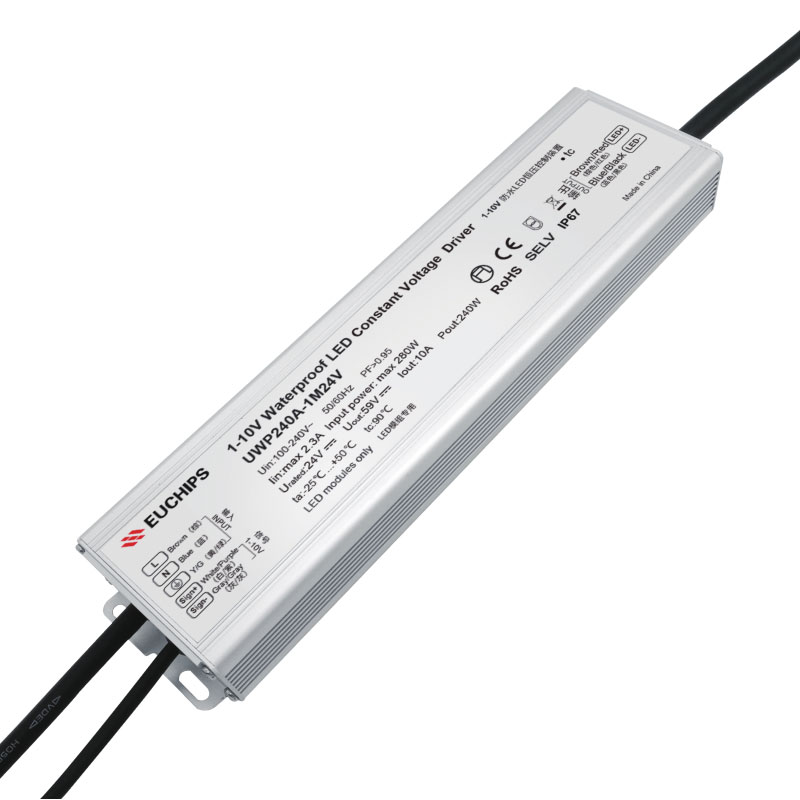

240W 24VDC 0/1-10V Waterproof Ultra-thin CV Driver UWP240A-1M24V

Short Description:

  • Item No.: UWP240A-1M24V
  • Input Voltage: 100-240VAC
  • Output Power: 240W

Product Detail

Product Tags

240W 24VDC Constant Voltage Driver UWP240A-1M24V

UWP240A-1M24V is a LED dimmable driver with constant voltage output, it can be used
outdoor and achieve smooth dimming efect through external 0/1-10V active signal/PWM.


1. Single-channel with 24V constant voltage output.

2. Wide voltage input range from 100VAC to 240VAC

3. With built-in active PFC function

4. Supporting 3-in-1 dimming way (0/1-10V active signal/adjustable resistor/PWM signal)

5. 1-100% full dimming range,smooth dimming curve,flicker-free,high efficiency up to 92.5%

6. Can be used as normal driver when signal suspending,as well as full-load output

7. Protections:short circuit,over load,over voltage,over temp. and lightning protection

8. Ultra-thin design with waterproof IP67 and applicable to various of LED CV lights

Technical Parameters

Model UWP240A-1M24V
Input Efficiency 92.5%@240VAC, Full load
Voltage 100VAC-240VAC
Frequency 50/60Hz
Power Factor ≥0.95@230VAC, Full load
THD <10%230VAC, Full load
Standby power <0.5W
Current 2.3Amax@100VAC
Inrush Current Cold start 50A(measured50% Ipeak twidth=60us)@230VAC
Output Current/Voltage/Power 10A/24VDC/240W
Ripple Current 480mVp-p
Channel 1
Voltage Tolerance ±5%
Protection Short Circuit Close output,recovers after fault condition is removed
Over Voltage Shut down the output, After restart recovers automatically
Over Current Hic cup, recovers after fault condition is removed
Safety&EMC Surge L-N:2kV,L,N-FG:4kV
Withstand Voltage I/P-O/P: 3000VAC/1min/5mA; I/P-Gnd: 1500VAC/1min/5mA; O/P-Gnd: 500VAC/1min/5mA
Safety Standards IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14
EMC Eission EN50515, EN61000-3-2 Class C, IEC61000-3-3,
EMC Immunity EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1
Function Dimming mode 0/1-10V
Dimming range 1%-100%
Others Working Temp. -25℃~+50℃
Storage Temp.; Humidity -40℃~85℃, 20-90%RH
Tc 90℃
Material Metal
IP Rating IP67
Lifetime 50,000h@tc:85℃
Warranty Condition 5 years
Switch Cycle >25,000 times
Packing Size Net weight: 1055g±5%/PCS; 20PCS/Carton; 26.1kg±5%/Carton; Carton Size: 355*290*180mm(L*W*H)
Dimension 270*68*30mm(L*W*H)
