10W 120/180/240/300mA*1ch DALI CC Driver EUP10D-1HMC-0

Short Description:

  • Item No.: EUP10D-1HMC-0(DALI2.0)
  • Input Voltage: 220-240VAC
  • Output Current: 120/180/240/300mA
  • Output Power: 10W
  • Dim Mode: DALI/Touch DIM
  • Size: 150*43*29mm

Product Detail

Product Tags

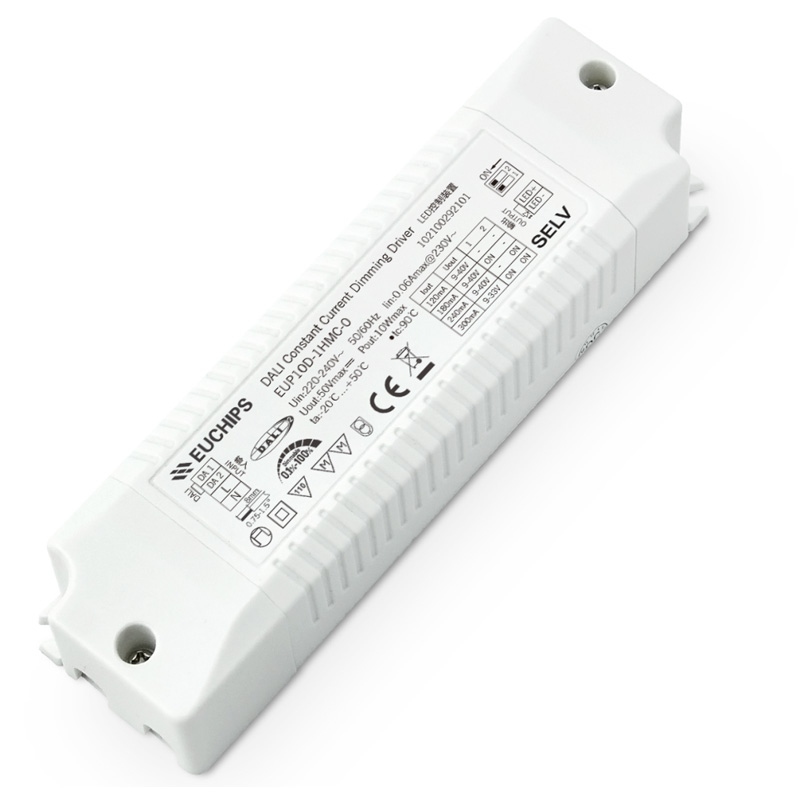

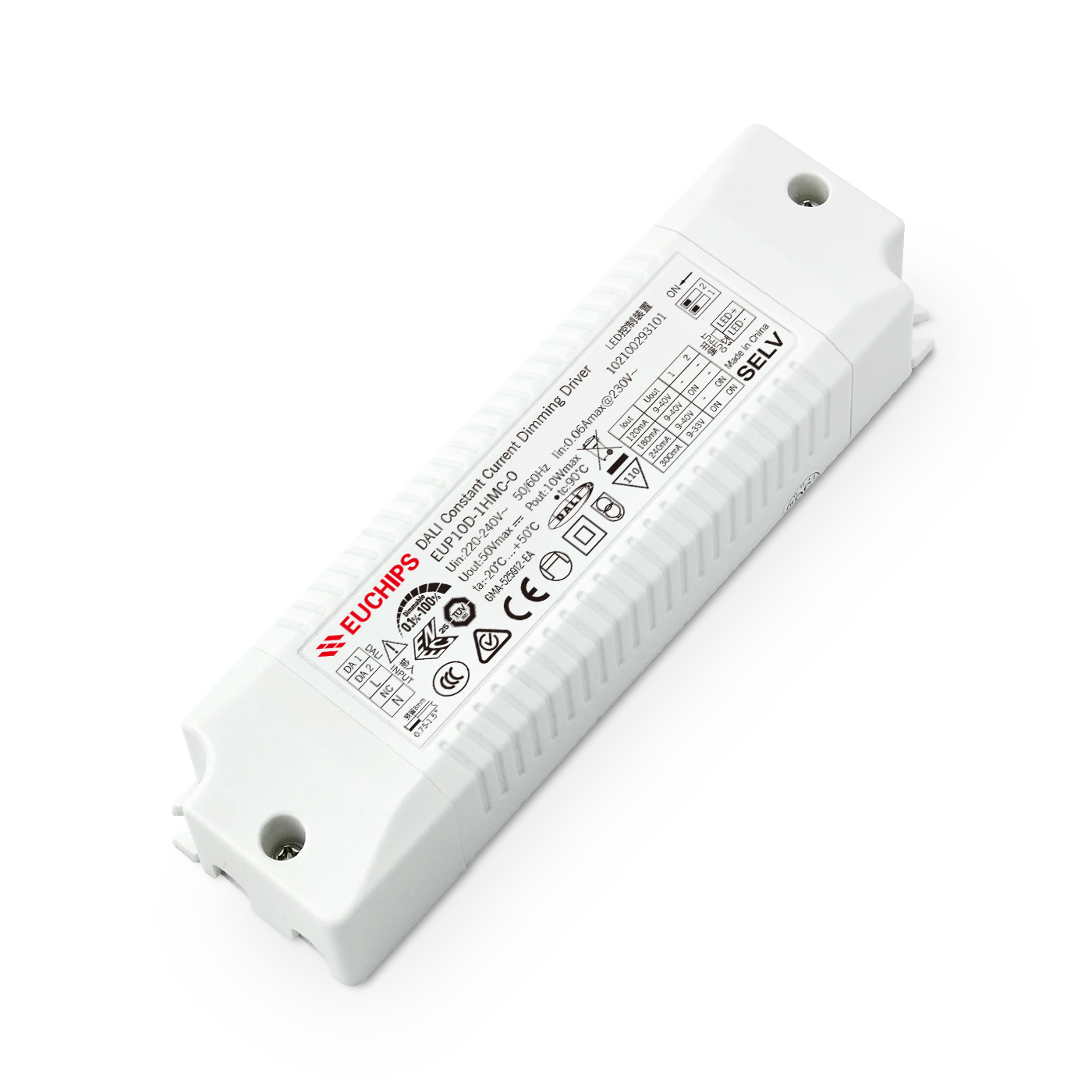

10W 120/180/240/300mA DALI Constant Current LED Dimming Driver EUP10D-1HMC-0

EUP10D-1HMC-0 is a 10W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch and complies with DALI standard protocol IEC 62386. EUP10D-1HMC-0 can be connected to DALI main controller or Touch DIM to a chieve a smooth dimming effect.

Product Features

1. Single channel output, output current level selectable by DIP S.W.

2. Meet DALI Protocol IEC 62386-207 Ed2.0

3. Support Touch-DIM function

4. Built-in active PFC function

5. Dimming effect smooth, no flicker

6. Protections: Short circuit, over load

7. Suitable for indoor LED lighting application, such as down light, spotlights, panel light, and so on

Technical Parameter

Model EUP10D-1HMC-0
Input Efficiency 80%@230VAC, Full load
Voltage 220VAC-240VAC
Frequency 50/60Hz
Power Factor ≥0.95@230VAC,Full load
THD(full load <10%@230VAC, Full load
AC Current(max) 0.06Amax@230VAC
Standby power <0.5W
Inrush Current(max) Cold start,18A(twidth=14us measured at 50% Ipeak)@230VAC
Output Current(mA)/Voltage (VDC)/
Power(W)
120mA/9-40VDC/4.8W
180mA/9-40VDC/7.2W
240mA/9-40VDC/9.6W300mA/9-33VDC/9.9W
Ripple Current <3%
Channel 1
Current Tolerance ±5%
No load output voltage 55V Max
Function Dimming Mode DALI/Touch DIM
Dimming Range 0.1%-100% Dimming to off
Protection Short circuit Close output,recovers automatically after fault removed
Over Load When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced.
Safety&EMC Surge L-N:1kV
Withstand Voltage I/P-O/P: 3000VAC/1min/5mA
DALI Standard IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207 Ed2.0
Safety Standards EN61347, GB19510
EMC Eission EN50515, EN61000-3-2
EMC Immunity EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
Others Working Temp. -20℃~50
Storage Temp.; Humidity -40℃~85℃, 20-90%RH
Tc 90℃
Material PC
IP Rating IP20
Lifetime 50,000h@tc:70℃
Warranty Condition 5 years
Switch Cycle >100,000 times
Packing Size Net weight: 125g±5%/PCS; 50PCS/Carton; 6.65kg±5%/Carton; Carton Size: 319*254*136mm(L*W*H)
Dimension 150*43*29mm(L*W*H)
