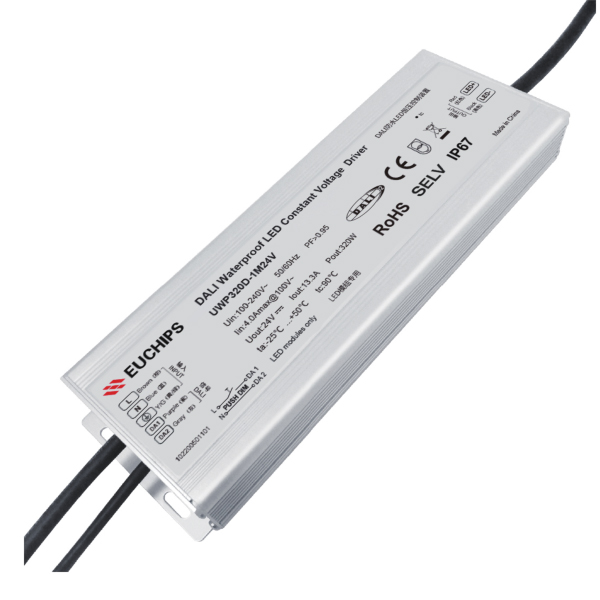

320W 24VDC DALI Waterproof Ultra-thin CV Driver UWP320D-1M24V
320W 24VDC Waterproof DALI CV Driver UWP320D-1M24V
UWP320D-1M24V is a dimming driver that can provide constant voltage output. Complies with DALI standard protocol IEC 62386. LED driver featuring the dimming by DALI master/Touch DIM(PushDIM) switch, with smooth dimming curve and are flicker free.
Features
·Single channel output with 24V CV direct current
·Wide voltage input range from 100VAC to 240VAC
·With built-in active PFC function
·Meet DALI protocol IEC 62386-207
·Support Touch DIM(Push DIM) function
·Ultra-thin design, Waterproof level IP67, High effciency up to 92%
·Dimming effect smooth, no flicker
·Protections: Short circuit, over load, over voltage, lightning protection
·suitable for LED CV lighting, such as LED module, LED strip light, LED tube, and so on
Technical Parameters
| Model | UWP320D-1M24V | |
|
Input |
Efficiency | 92%@230VAC, Full load |
| Voltage | 100VAC-240VAC | |
| Frequency | 50~60Hz | |
| Power Factor | >0.95@230VAC, Full load | |
| THD | <10%230VAC, Full load | |
| Standby power | <0.5W | |
| Current | 4.0Amax@100VAC | |
| Inrush Current | Cold start 65A(measured50% Ipeak twidth=60us) @230VAC | |
|
Output |
Direct voltage | 24VDC |
| Rated current | 13.3A | |
| Rated Power | 320W | |
| Voltage Tolerance | ±4% | |
| Over voltage protection | 24.5-30VDC | |
| Ripple and noise(max) | <480mVp-p | |
| Channel | 1 | |
| Protection | Short Circuit | Close output, recovers automatically after fault removed |
| Over Voltage | Colse output recovers automatically of fault after restart | |
| Over Load | Hic cup recovers after fault condition is removed | |
| Safety&EMC | Surge | L-N: 2kV,L,N-PG:4kV |
| Withstand Voltage | I/P-O/P:3000VAC/5mA I/P-PG:1500VAC/5mA O/P-PG:500VAC/5mA | |
| Safety Standards | IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14 | |
| EMC Eission | EN50515, EN61000-3-2 Class C, IEC61000-3-3, GB/T17743 | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1 | |
| Function | Dimming mode | DALI/Touch DIM(Push DIM) |
| Dimming range | 0.1%-100% | |
| DALI standard | IEC62386-101, IEC62386-102, IEC62386-207 | |
|
Others |
Working Temp. | -25℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃ 20-90%RH | |
| Tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@tc:90℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >100,000 times | |
| Packing Size | Net weight: 1700g±5%/PCS; 10PCS/Carton; 17kg±5%/Carton; Carton Size: 315*260*210mm(L*W*H) | |
| Dimension | 290*90*32mm(L*W*H) | |
