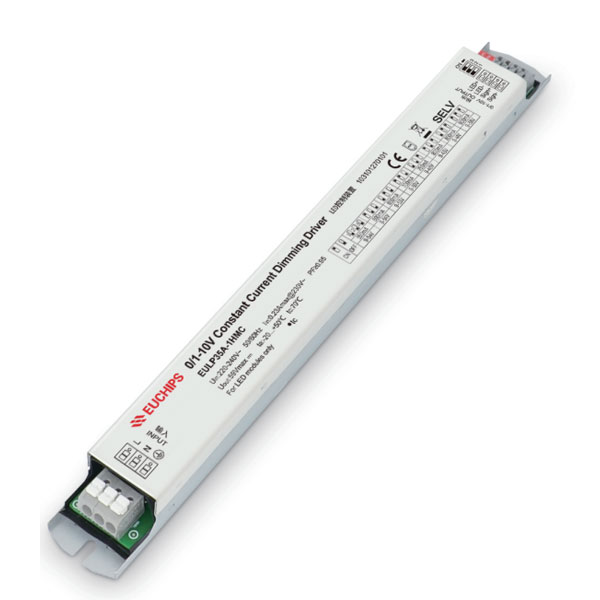

35W 500~900mA*1ch 0/1-10V CC Driver EULP35A-1HMC
35W 500/600/650/700/750/800/850/900mA 30W Constant Current 0/1-10V Driver EULP35A-1HMC
EULP35A-1HMC is a constant current output mode LED driver. The output current can be easily set via DIP switch, and the driver can be adjusted by the external 0/1-10VDC active signal, PWM signal , or adjustable resistance to achieve the smooth dimming effect.
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Support 3-in-1 dimming mode(0/1-10V active signal, adjustable resistance, PWM)
3. High input voltage of 220VAC ~ 240VAC
4. High efficiency up to ≥87%
5. Built-in active PFC function
6. 100% output when no dimming signal input, can be used as normal power supply
7. Dimming effect smooth, no flicker
8. Protections: Short circuit, over load，over voltage
9. Suitable for indoor LED lighting application, such as down light, panel light, and so on
Technical Parameters
| Model | EULP35A-1HMC | |
| Input | Efficiency | ≥87%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | 0.95@230VAC,Full load | |
| THD(full load) | ≤10%@230VAC | |
| AC Current(max) | 0.23Amax@230VAC | |
| Inrush Current(max) | Cold start,20A@230VAC | |
| No load Power | <0.5W | |
| Standby power | <0.5W | |
| Turn on delay Time | ≤0.5s, at230Vac (When the light begins to shine) | |
| Output | Current(mA)/Voltage (VDC)/Power(W) | 500mA/9-54V/27W 600mA/9-54V/32.4W 650mA/9-53V/34.45W 700mA/9-50V/35W 750mA/9-46V/34.5W 800mA/9-43V/34.4W 850mA/9-41V/34.85W 900mA/9-38V/34.2W |
| Current Accuracy | ±5% | |
| Channel | 1 | |
| Ripple current | 3% | |
| No load output voltage | 59VDC max | |
| Function | Dimming Type | 0/1-10V active signal, adjustable resistance, PWM |
| Dimming Range | 0.2%-100% | |
| Dimming curve | Linearity | |
| Flicker | No Flicker | |
| Protection | Short Circuit | Short circuit no output, troubleshooting output normal |
| Over Load | Reduce current hiccup protection, troubleshoot normal output | |
| Over Voltage | Reduce current hiccup protection, troubleshoot normal output | |
| Safety&EMC | Surge | L-N 1000VAC L/N-GND 2000VAC |
| Withstand Voltage | I/P-O/P: 3750Vac/1min/<5mA O/P-Signal:1500Vac/1min/<5mA | |
| Safety Standards | EN61347, GB19510 | |
| EMC Eission | EN55015, EN61000-3-2 | |
| EMC Immunity | EN61000-3-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Insulation Resisance | 5MΩ | |
| Others | Working Temp. | -20°C~50°C |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 70℃ | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:85℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing(weight) | Net weight: TBDg±5%/PCS; TBDPCS/Carton; TBDkg±5%/Carton; Carton Size:–*–*–mm(L*W*H) | |
| Dimension | 280*30*21mm（L*W*H） | |
