1-10V Dimmer Walldim103E1

Short Description:

  • Item No.: Walldim103E1
  • Input Voltage: 12-15
  • Dim Mode: 1-10V
  • G.W.: 140
  • Size: 86*86*42

Product Detail

Product Tags

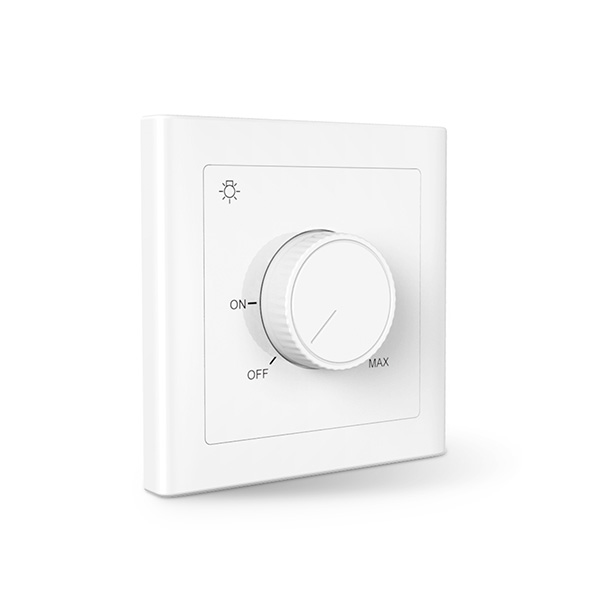

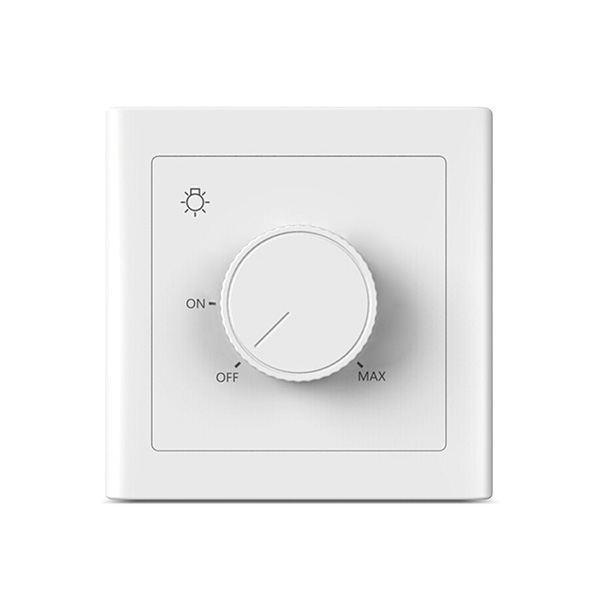

1-10V Dimmer Walldim103E1



Feature

1. Suitable for 1-10V LED dimming driver with passive signal support

2. Installation in the European and domestic electrical box

3. Can switch off the signal and power supply at the same time

4. ABS material, high flame retardant

5. Fashion, and easy to use

6. Used in the study, bedroom, restaurant, bars and other places need dimming control

Technical Parameter



Model Walldim103E1
Output Variable resistance signal
Control output load capacity Max.20mA
Switching output load capacity Max. 6A resistive load
Type Passive dimmer
Panel Color Ivory-white
Panel Size 86*86*42mm
Packing Size 104*104*52mm
G.W. 140g
Working Temperature -10℃~55℃
Relative Humidity 20~90RH
