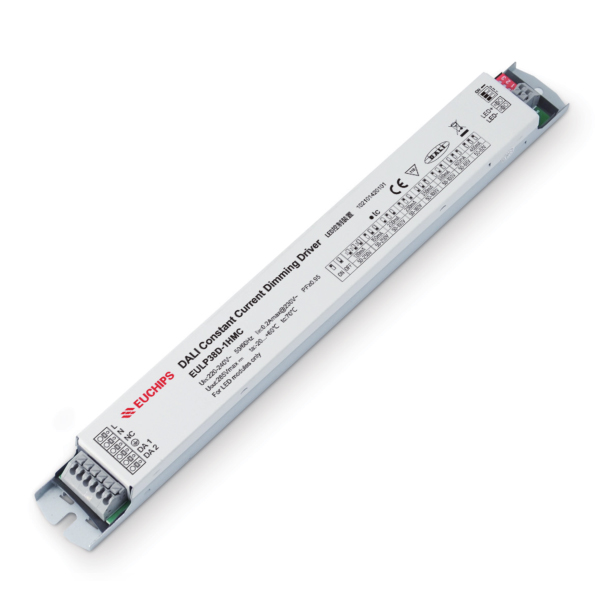

38W 120~460mA*1ch DALI CC Driver EULP38D-1HMC
38W 120~460mA*1ch DALI CC Driver EULP38D-1HMC
EULP38D-1HMC is a 38W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch and complies with DALI standard protocol IEC 62386 EULP38D-1HMC can be connected to DALI main controller or Touch DIM to achieve a smooth dimming effect.
Features
· Single channel output, output current level selectable by DIP S.W.
· Support DALI software to adjust output current
· Meet DALI protocol IEC 62386
· Support Touch DIM function
· High efficiency up to ≥92%
· Built-in active PFC function
· Logarithmic dimming，dimming effect smooth, no flicker
· Protections: Short circuit, Over load, Over voltage
· Suitable for indoor LED lighting application, vapor light, and so on
Technical parameters
| Model | EULP38D-1HMC | |
| Input | Efficiency | ≥92%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC,Full load | |
| THD(full load) | ≤10%@230VAC, Full load | |
| AC Current(max) | 0.2Amax@230VAC | |
| Inrush Current(max) | Cold start,18.2A@230VAC 200us | |
| Standby power | <0.5W | |
| No load power | <0.5W | |
| Turn on delay Time | <0.75s, at230Vac (When the light begins to shine) | |
| Output | Current(mA)/Voltage (VDC) Power(W) | 120mA/50-250V/30W 150mA/50-250V/37.5W
200mA/50-190V/38W 230mA/50-165V/38W 350mA/50-108V/37.8W 380mA/50-100V/38W 430mA/50-88V/37.8W 460mA/50-82V/37.7W |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| No load output voltage | 285V max | |
| Function | Dimming Type | DALI, Touch DIM |
| Dimming Range | 1%-100% | |
| Protection | Short circuit | Close output, recovers automatically after fault removed |
| Over Load | No output, power off and restart | |
| Voltage Load | No output, power off and restart | |
| Safety& EMC | Surge | L-N:1kV L/N-PE:2kV |
| Withstand Voltage | I-PE: 1500VAC/1min/5mA O-PE: 1500VAC/1min/5mA | |
| Safety Standards | EN61347, EN61347 | |
| EMC Eission | EN50515, EN61000-3-2 | |
| EMC Immunity | EN61000-3-3, EN61000-3-2, EN61547 | |
| Insulation Resisance | 5MΩ | |
|
Others |
Working Temp. | -20℃~60℃ |
| Storage Temp., Humidity | -40℃~85℃ 20-90%RH | |
| tc | 70 | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:70℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing(weight) | Net weight: 185g±5%/PCS; 50PCS/Carton; 9.7kg±5%/Carton; Carton Size:498*334*130mm(L*W*H) | |
| Dimension | 280*30*21mm（L*W*H） | |
