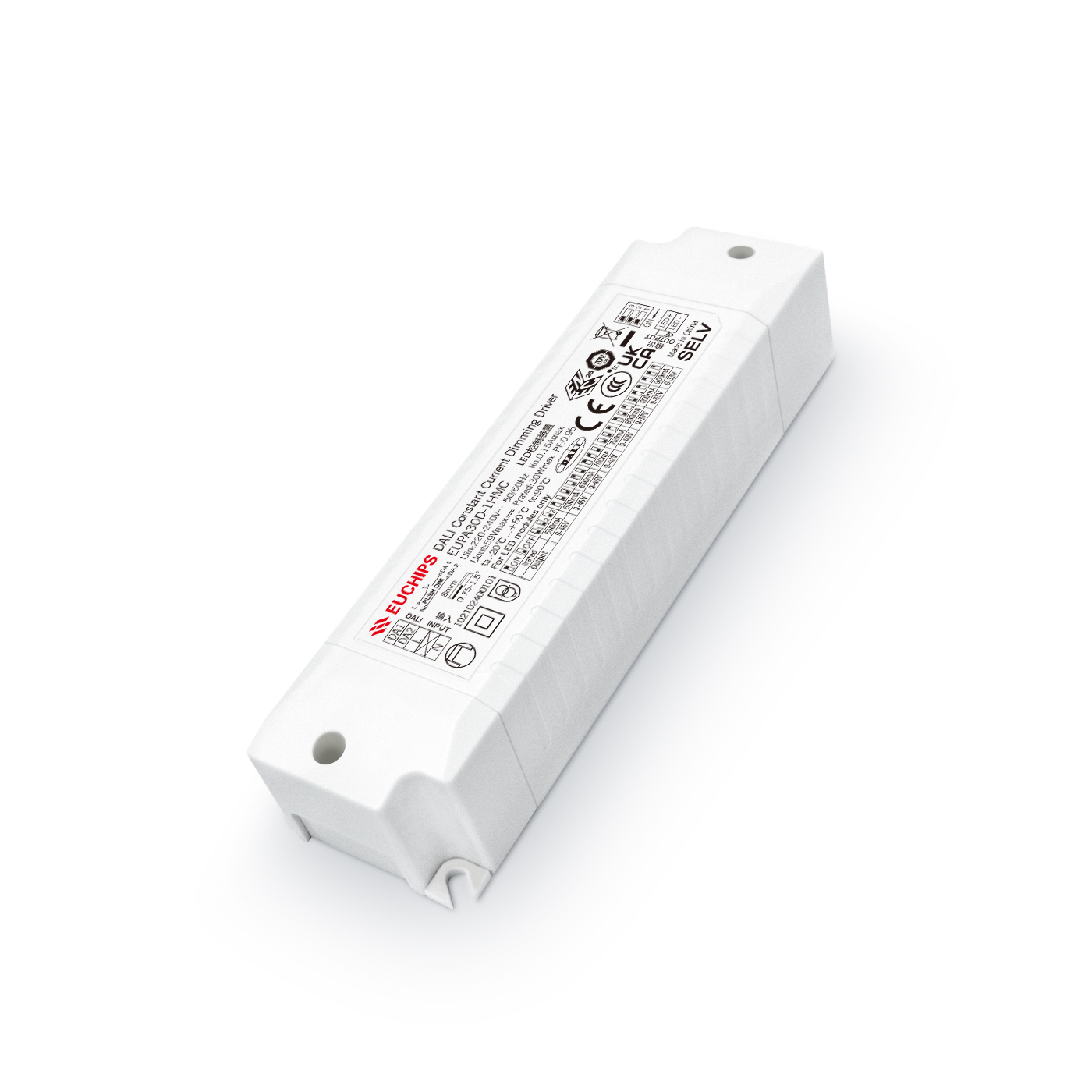

30W 550~900mA*1ch DALI Driver EUPA30D-1HMC
Features
- Single channel constant current output, multi-level current optional
- Following the DALI protocol standard IEC62386-207 Ed2.0
- Support Touch DIM function
- High voltage input: 220VAC~240VAC
- Efficiency up to 88%
- Built in active PFC function
- Short circuit protection, overload protection, overvoltage protection
- Suitable for LED indoor lighting fixtures, such as tube lights, spotlights, panel lights, etc
Technical Parameters
|
Model |
EUPA30D-1HMC | |
|
Input |
Voltage | 220VAC-240VAC |
| Frequency Range(Hz) | 50/60Hz | |
| Current | 0.15Amax@230VAC | |
| Power Factor | ≥0.95@230VAC, Full load | |
| Efficiency | 88%@230VAC, Full load | |
| THD | <10%@230VAC, Full load | |
| Standby power | <0.5W | |
| No-load power consumption | <0.5W | |
| Inrush Current | Cold start,40A@230VAC 200us | |
| output | Current/Voltage/Power | 550mA/9-45VDC/24.75W 600mA/9-45VDC/27W 650mA/9-45VDC/29.25W 700mA/9-42VDC/29.4W
750mA/9-40VDC/30W 800mA/9-37VDC/29.6W 850mA/9-35VDC/29.75W 900mA/9-33VDC/29.7W |
| Current accuracy | ±5% | |
| PstLM | ≤1 | |
| SVM | ≤0.4 | |
| Line Regulation | ±5% @Full load | |
| Load Regulation | ±5% @Full load | |
| Startup delay | 0.5s, at230Vac(When the light begins to shine) | |
| Function | Dimming type | DALI |
| Dimming range | 0.5%-100% | |
| Dimming curve | logarithm | |
| Flicker | Flicker-free | |
| Protection | Short circuit | Hiccup Protection, Auto-recovery after Fault Clearance |
| Overcurrent | Hiccup Protection, Auto-recovery after Fault Clearance | |
| Over load | Load voltage>45V protection; Current drops, troubleshooting output is normal | |
| Surge | L-N:1KV | |
| Safety&EMC | Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA |
| Safety standards | CCC (China) GB19510.1，GB19510.14 TUV (Germany) EN61347-1, EN61347-2-13, EN62493 | |
| CB (CB member states) IEC61347-1，IEC61347-2-13 CE (European Union) EN61347-1, EN61347-2-13, EN62384 | ||
| RCM (Australia) AS 61347-1, AS 61347-2-13 ENEC (Europe) EN61347-1, EN61347-2-13, EN62384 | ||
| EMC | CCC (China) GB/T17743, GB17625.1 | |
| CE (European Union) EN55015, EN61000-3-2, EN61000-3-3, EN61547 | ||
| RCM (Australia) EN55015, EN61000-3-2, EN61000-3-3, EN61547 | ||
| EMI | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Environment | Working temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH (No condensation) | |
| Others | ROHS | Comply with 2011/65/EU |
| tc | 90℃ | |
| Material | PC | |
| IP rating | IP20 | |
| Lifetime | 50,000h@tc:90℃ | |
| Warranty | 5 years | |
| Switch cycle | >25,000times | |
| Dimension | 135*36*25mm(L*W*H) | |
| Packing size(weight) | Net weight:150g±5%/PCS; 80PCS/Carton; 12kg±5%/Carton; Carton Size: 456*342*162mm(L*W*H) | |
| Noise | In a quiet environment, there is no noise outside 30-50cm | |
| Remarks | All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions. | |
