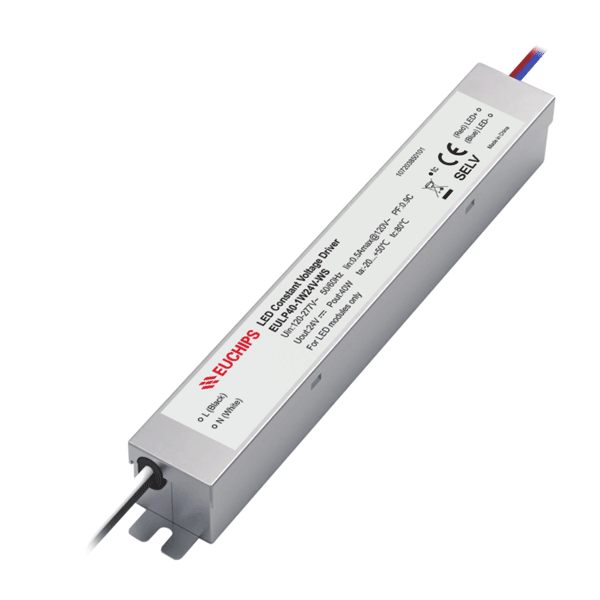

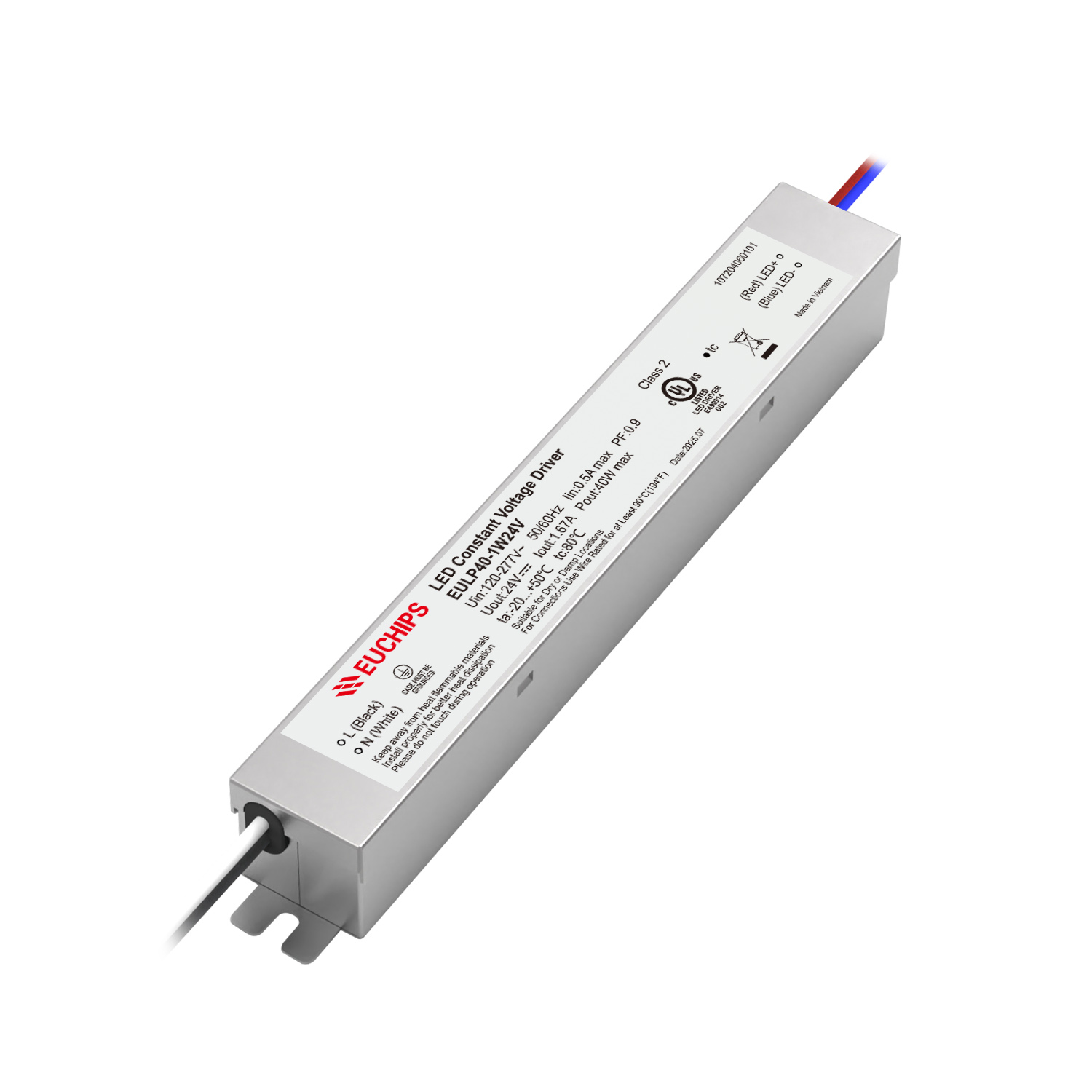

40W 24VDC Non-dimmable CV Driver EULP40-1W24V
40W 24VDC Non-dimmable CV Driver EULP40-1W24V
EULP40-1W24V is a constant voltage output LED driver. The compact body is easy to install in small spaces, with stable output and high efficiency.
Features
• Supply Voltage: 108-305Vac
• Protection:Short circuit, Overload, Overcurrent
• 50,000Hour Life @ Tc=80℃
• 5 Year Warranty @ Tc<=80℃
• Class 2 output
• Safety according to UL8750 &UL 1310
• Suitable for Dry , Damp Locations
• Suitable for indoor LED lighting applications
Technical Parameters
| Model | EULP40-1W24V | |
|
Input |
Efficiency | >90%@120VAC, full load >91%@277VAC, full load |
| Rated Voltage | 120-277VAC | |
| Voltage Range | 108~305VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Current | 0.50Amax@120VAC 0.30Amax@230VAC 0.20Amax@277VAC | |
| Power Factor | ≥0.95@120VAC, full load ≥0.9@277VAC, full load | |
| THD(full load) | <10%@120VAC <15%@277VAC | |
| Inrush Current(max) | Cold start, 15A@120VAC 160us 34A@277VAC 200us | |
|
Output |
Current Range | 1.67A |
| Voltage Range | 24VDC | |
| Output Power | 40W Max | |
| Channel | 1 | |
| Voltage Tolerance | ±5% | |
| No load power | <1W(Hop) | |
| Power limit | ≤140% | |
| Ripple | ≤960mV | |
| Turn on delay Time | ≤0.75s, @120Vac (When the light begins to shine) | |
| Protection | Short-circuit | No output, Auto-recovery after Fault Clearance |
| Over load | No output, Auto-recovery after Fault Clearance | |
| Over Current | No output, Auto-recovery after Fault Clearance | |
|
Safety& EMC |
Surge | L-N: 2kV L&N-G: 2kV ring wave |
| Withstand Voltage | I/P-O/PI:2000Vac/1min/<5mA, I/P-G:1500Vac/1min/<5mA, O/P-G:500Vac/1min/<5mA | |
| Safety Standards | UL8750 UL1310 CSA25013.CSA Class P | |
| EMC Eission | FCC PART15B | |
| EMC Immunity | IEC 61000-4-2-3-4-5-6-8-11 | |
| Insulation Resisance | 5MΩ | |
|
Others |
Working Temp. | -20~+50°C [-4°F~122°F] |
| Storage Temp., Humidity | -40~+85°C [-40°F~185°F], 5~95% RH | |
| tc | 80℃ [ 176°F ] | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80°C [ 176°F ] | |
| Warranty Condition | 5years | |
| Switch Cycle | >25,000 times | |
| Dimension | 144*20.4*20mm (5.67*0.80*0.78 Inch)（L*W*H） | |
| Packing(weight) | Net weight: 120g(0.26 lb)±5%/PCS; 50PCS/Carton; 6.5kg(14.3 lb)±5%/Carton; Carton Size:320*225*175mm(L*W*H) | |
