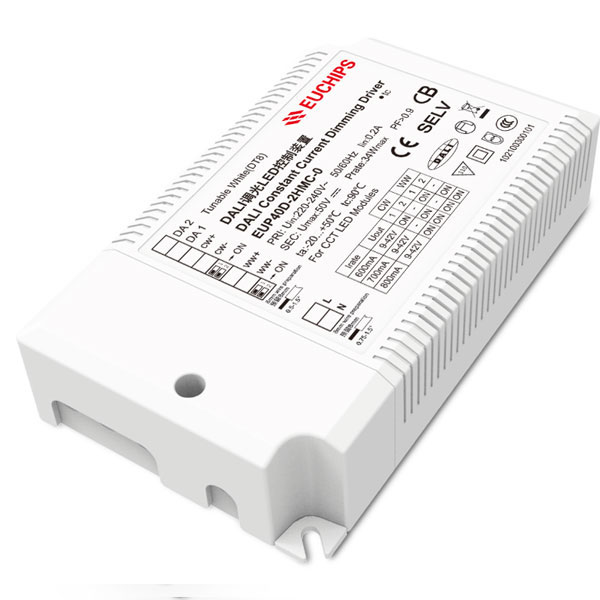

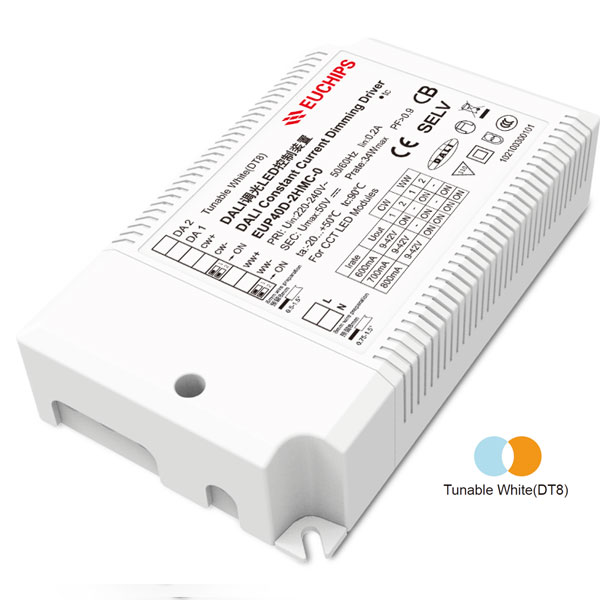

40W 600/700/800mA*2ch DALI CC Driver DT8 EUP40D-2HMC-0
DALI Tunable White Constant Current Driver EUP40D-2HMC-0
EUP40D-2HMC-0 is a LED controller that provides two channels outputs.The user can select the total output current via DIP switch.It supports DALI standard protocol and adjustment of brightness and color temperature.
Features
1. Meet DALI Protocol IEC 62386 DT8
2. SELV. Full protective plastic housing
3. High efficiency up to 87 %
4. Built-in active PFC function
5. Dimming effect smooth, no flicker
6. Protections: Short circuit, over load, over temperature
7. Supports adjustment of brightness and colour temperature.
Parameters
| Model | EUP40D-2HMC-0 | ||
| Input | Efficiency | 87%@230VAC, Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | ≥0.95@230VAC,Full load | ||
| THD(full load | <15%@230VAC, Full load | ||
| AC Current(max) | 0.2Amax@230VAC | ||
| Standby power | <0.5W | ||
| Inrush Current(max) | Cold start,12A(twidth=50us measured at 50% Ipeak)@230VAC | ||
| Output | Current(mA)/Voltage (VDC)/ Power(W) |
600mA/9-42VDC/25.2W700mA/9-42VDC/29.4W800mA/9-42VDC/33.6W | |
| Ripple Current | <3% | ||
| Channel | 2 | ||
| Current Tolerance | ±5% | ||
| No load output voltage | 50VDC | ||
| Function | Dimming Mode | DALI Dimming | |
| Dimming Range | 0.1%-100% Dimming to off | ||
| Color Temperature | 3000-6000K | ||
| Protection | Short circuit | Close output，recovers automatically after fault removed | |
| Over Load | Hiccup, when the output power exceeds the rated power of 100~120%,then,recoversautomatically after fault removed | ||
| Over Temperature | When tc exceeds 105℃,shut down the output, recoversautomatically, when temp. back to 85℃ | ||
| Others | Working Temp. | -20℃~50℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 90℃ | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 50,000h@tc:75℃ | ||
| Warranty Condition | 5 years | ||
| Switch Cycle | >100,000 times | ||
| Packing Size | Net weight: 225g±5%/PCS; 50PCS/Carton; 11.75kg±5%/Carton; Carton Size: 517*337*179mm(L*W*H) | ||
| Dimension | 137*82*31mm(L*W*H) | ||
