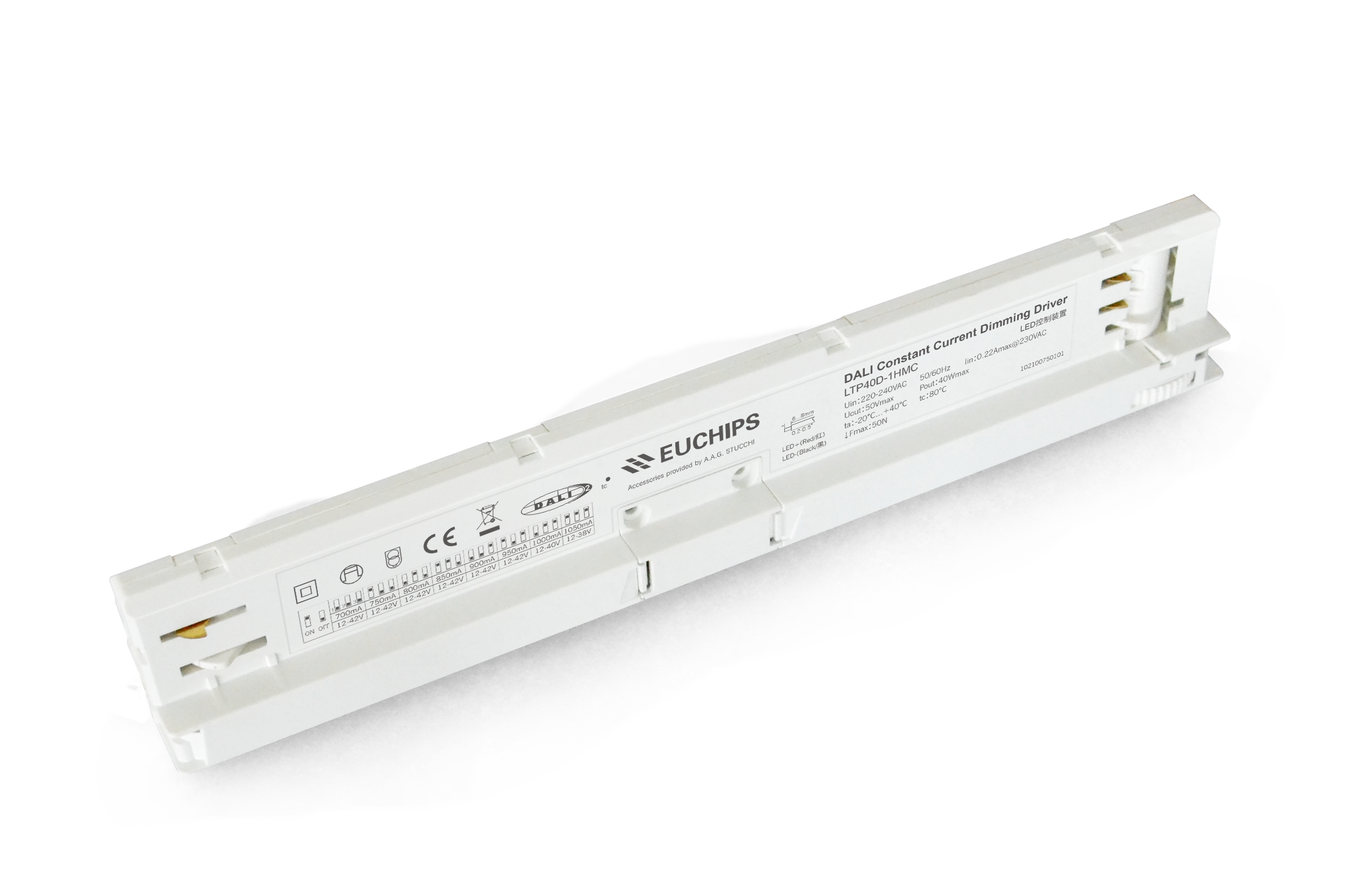

40W 700~1050mA*1ch DALI CC Driver LTP40D-1HMC
40W 700~1050mA CC DALI2.0 Driver LTP40D-1HMC
LTP40D-1HMC is a 40W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch and complies with
DALI standard protocol IEC 62386. LTP40D-1HMC can be connected to DALI main controller to achieve a smooth dimming effect.
Features
1. Single channel output, output current level selectable via DIP S.W.
2. Meet DALI Protocol IEC 62386-207 Ed2.0
3. High efficiency up to 87%
4. Built-in active PFC function
5. Dimming effect smooth, no flicker
6. Protections: Short circuit, over load, no load
7. Compatible with all brands of 6 lines dimmable track
8. For luminaires of protection class II
9. 5-year guarantee
Technical Parameters
| Model | LTP40D-1HMC | ||
| Input | Efficiency | 87%@230VAC, Full load | |
| Voltage | 200VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | 0.95@230VAC,Full load | ||
| THD(full load | <10%@230VAC, Full load | ||
| AC Current(max) | 0.21Amax@230VAC | ||
| Standby power | <0.5W | ||
| Inrush Current(max) | Cold start,20A(twidth=70us measured at 50% Ipeak)@230VAC | ||
| Output | Current(mA)/Voltage (VDC)/ Power(W) |
700mA/12-42VDC/29.4W 750mA/12-42VDC/31.5W 800mA/12-42VDC/33.6W 850mA/12-42VDC/35.7W 900mA/12-42VDC/37.8W 950mA/12-42VDC/39.9W 1000mA/12-40VDC/40W 1050mA/12-38VDC/39.9W |
|
| Current Accuracy | ±5% | ||
| No-load Output Voltage | 50VDC | ||
| R&N(<120Hz) | <3% | ||
| Protection | No load | The LED Driver will not be damaged. | |
| Short Circuit | Close output, recovers automatically after fault removed | ||
| Over load | Hiccup mode, recovers automatically after fault condition is removed | ||
| Safety&EMC | Surge | L-N:1KV | |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | ||
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 1.0 | ||
| Safety Standards | IEC/EN61347-1,IEC/EN61347-2-13,GB19510.1,GB19510.14, | ||
| EMC Eission | EN50515,EN61000-3-2 Class C,IEC61000-3-3,GB/T17743 | ||
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1 | ||
| Function | Dimming Mode | DALI | |
| Dimming Range | 0.1%-100% | ||
| Others | Dimension | 260*42.5*32mm(L*W*H) | |
| Packing Size | 488*294*188mm(L*W*H)/19kg/Carton/100PCS; | ||
| G.W | 185g | ||
| IP rating | IP20 | ||
| Working Temp. | -20~45℃ | ||
| Tc | 80℃ | ||
| Relative Humidity | 20~90% RH | ||
| Lifetime | 50000h@tc: 70℃ | ||
| Switch Cycle | >100000times | ||
| Max. allowed weight of complete luminaire |
5Kg | ||
