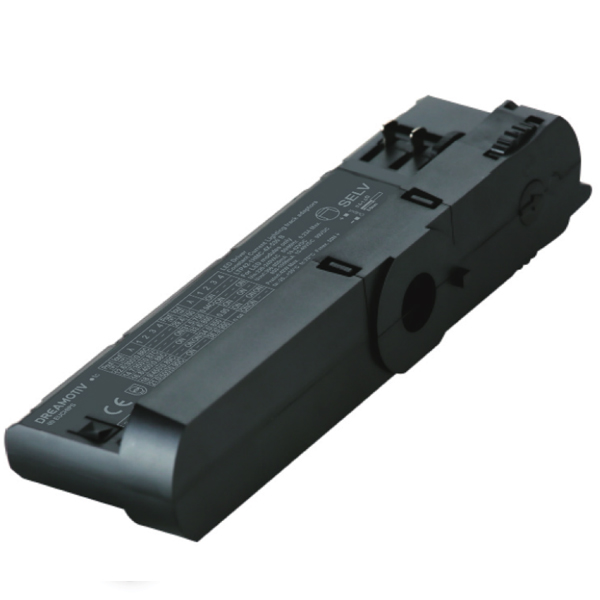

42W 300~1050mA*1ch Non-dimmable Driver LTP42-1HMC-4X-530
42W 300~1050mA*1ch Non-dimmable Driver LTP42-1HMC-4X-530
Features
· Constant Current Track Driver, High P, Flicker-free
· High efficiency, full load efficiency ≧89%
· Strong adaptation, can be adapted to domestic and foreign common guide rails
· There are two series of fixed current and dip switch current, Output current range 300-1050mA
· Protection grade Class II, 5 years warranty
Technical Paramaters
| Model | LTP42-1HMC-4X-530 | |
| Input | Efficiency | ≥89%@230VAC, Full load |
| Rated Input Voltage | 220VAC-240VAC | |
| Range of Input Voltage | 198-264 VAC | |
| Range of D C Input Voltage | 180 -280VDC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power | ≤47.2W (230VAC, full load) | |
| Power Factor | ≥0.97 (230VAC, full l oad) | |
| THD | ≤20% (230VAC, full load) | |
| Input Current | ≤0.23A (230VAC，full load) | |
| No-load Power Consumption | ≤0.5W @230VAC | |
| Inrush Current | ≤9.5A/16us (230VAC，full load) | |
| Connected quantity of 10A BreakerConnected quantity of 16A BreakerConnected quantity of 20A Breaker | 21pcs/type A ;33pcs/type B ; 53pcs/type C @ 230Vac33pcs/type A;53pcs/type B ; 84pcs/type C @ 230Vac41pcs/type A;66pcs/type B ; 105pcs/type C @ 230Vac | |
|
Output |
Current(mA)/Voltage (VDC) Power(W) | 300mA/ 10-42V/ 3.00-12.60W 350mA/ 10-42V/ 3.50-14.70W400mA/ 10-42V/ 4.00-16.80W 450mA/ 10-42V/ 4.50-18.90W500mA/ 10-42V/ 5.00-21.00W 550mA/ 10-42V/ 5.50-23.10W
600mA/ 10-42V/ 6.00-25.20W 700mA/ 10-42V/ 7.00-29.40W 750mA/ 10-42V/ 7.50-31.50W 800mA/ 10-42V/ 8.00-33.60W 850mA/ 10-40V/ 8.50-34.00W 900mA/ 10-40V/ 9.00-36.00W 950mA/ 10-40V/ 9.50-38.00W 1000mA/ 10-40V/ 10.00-40.00W 1050mA/ 10-40V/ 10.50-42.00W |
| No Load Voltage | 59VDC Max. | |
| Current Ripple(< 120 Hz) | ±3% (Imax-Imin)/(Imax+Imin) | |
| PstLM | ≤1 | |
| SVM | ≤0.4 | |
| Current Accuracy | ±5% | |
| Started Delay Time | ≤0.5S (230VAC，full load) | |
| Protection | Short Circuit Protection | Auto Recovery |
| Overload Protection | Auto Recovery (not be hot swap) | |
| No-load Protection | Auto Recovery | |
| Insulation voltage | 3000V 5mA 60S between P-S | |
| Insulation resistance | >100M ohm @ 500VDC | |
| Leakage current | < 700µA, I/P to O/P @230V input | |
|
Standards |
Safety Standards | EN61347-1:2015/A1:2021;EN61347-2-13:2014/A1:2017;EN62384:2006/A1:2009; AS 61347.2.13:2018; AS/NZS61347.1:2016; BS EN61347-1:2015/A1:2021;BS EN61347-2-13:2014/A1:2017;IEC 61347-1:2015+A1:2017； IEC 61347-2-13:2014+A1:2016； |
| EMC Standards | AS/NZS CISPR 15:2011；AS CISPR 15:2017 ;BS EN IEC 55015:2019+A11:2020；EN 61547:2009； BS EN IEC 61000-3-2:2019；BS EN 61000-3-3:2013+A1:2019； | |
| Performance | EN62384 | |
| Surge | L-N/2KV | |
| Environment | Ta/Operation Temperature | -25….+35℃ |
| Ts/Storage Temperature | -35….+70℃ | |
| Tc/Enclosure Temperature | 70℃ | |
| Humidity | 10%. 90%RH | |
| Atmosphere | 86-108KPa | |
| Construction | Connection Method | Push-in Terminal |
| Installation | Independent | |
| SEC Wire preparation | 0.5-1.5² | |
| Dimension | 155*31.1* 42.2mm (L*W* H) | |
| Others | RoHS | Complied to 2011/65/EU |
| Life Time | 50000h tc=70℃75000h tc=65℃50000h tc=60℃ | |
| Warranty | 5years, F.R. <10000ppm | |
| Remark | 1.All Parameters, if not specified, are measured at 230VAC/50Hz and 25℃ ambient temperature.2.LED Driver is a component of the luminaires, Luminaires and wire layout will affect the EMC, please check the EMC with end products again. | |
