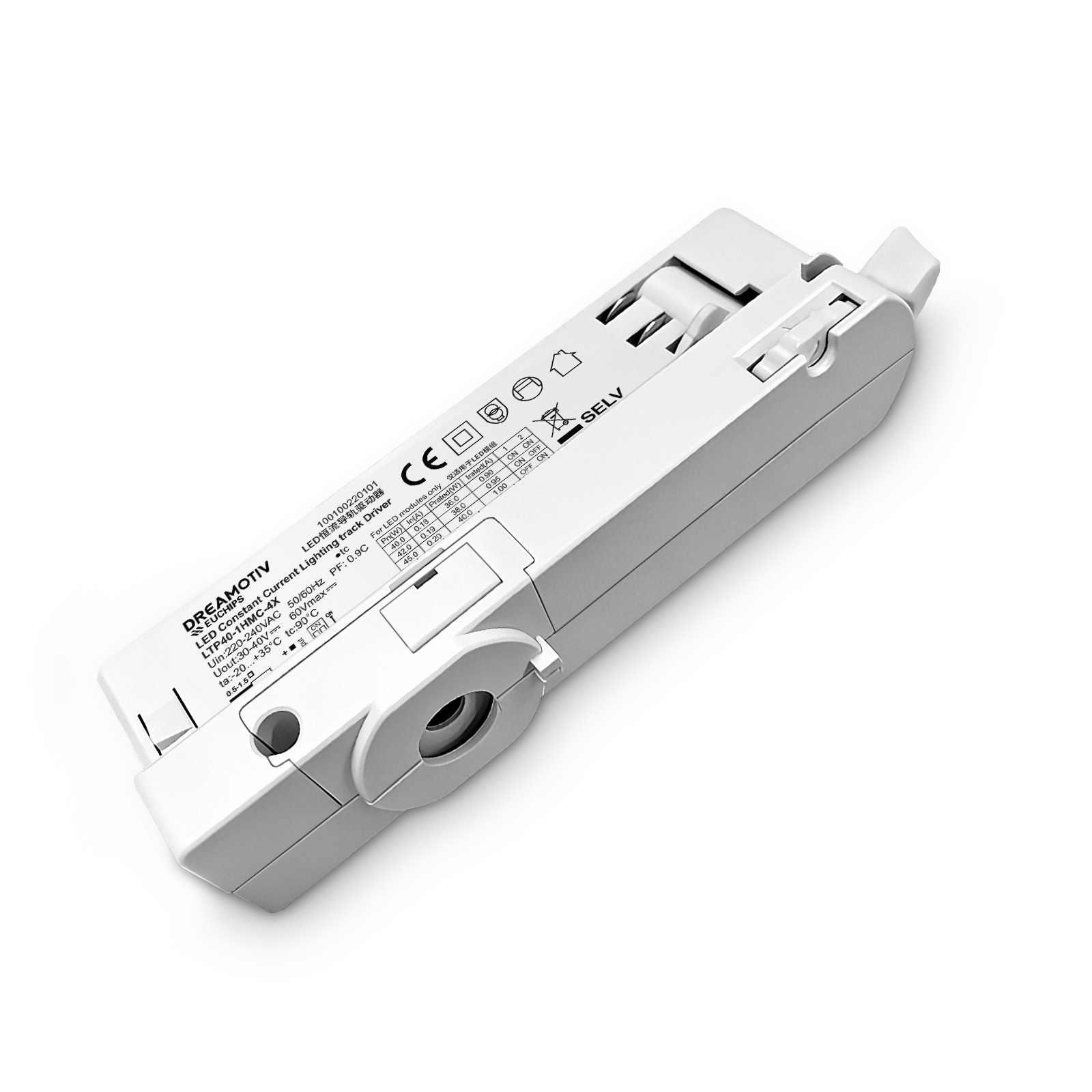

40W 900~1050mA Non-dimmable CC Driver LTP40-1HMC-4X

Short Description:

Item No.: LTP40-1HMC-4X
Output Power: 40W

Send email to us Download Spec.

Download Certificates Download Test Reports

Product Detail

Product Tags

40W 900~1050mA Non-dimmable CC Driver LTP40-1HMC-4X

Features

Constant Current Track Driver, High Power factor, Flicker-free
High efficiency, full load efficiency ≧89%
Strong adaptation, can be adapted to common guide rails
Output current selectable: 900/950/1000/1050mA
Luminaires of protection class II
5 years warranty

Technical Parameters

Model	LTP40-1HMC-4X
Input	Rated supply voltage	220-240VAC
	Input voltage range	198-264VAC
	Input voltage range (DC)	180-280VDC
	Input Current	0.23max @ 230VAC
	Input Frequency range	50/60Hz
	Inrush current	Cold start,25A@230VAC 50us
	Effciency	>89%@230VAC, Full load
	THD	<10%@230VAC, Full load
	Power factor	>0.95@230VAC, Full load
	Standby power	<0.5W@230VAC
	No load power	<0.5W@230VAC
	Turn on time	<0.5s, @230Vac (time-to-first-light)
Output	Current(mA)/Voltage(VDC) Power(W)	900mA/30-40VDC/36W 950mA/30-40VDCV/38W 1000mA/30-40VDC/40W 1050mA/30-40VDC/42W
	Current Accuracy	±5%
	Output Channel	1
	Load Regulation	±3%
	Line Regulation	±3%
	Current Overshoot	5%
	Output frequency	3.3K Hz
	No load output voltage	59V Max
Protection	Short-circuit	Shut down output, Auto-recovery after Fault Clearance
	Over Current	Hiccup Protection, Auto-recovery after Fault Clearance
	Overload	Load power ≥130% protection, Current Drop, Auto-recovery after Fault Clearance
Safety& EMC	Surge	L-N: 2.5K V L-N-PG: 2.5K V
	Withstand Voltage	I/P-O/P: 3750VAC/1min/5mA I/P-PG: 1500VAC/1min/5mA O/P-PG:500Vac/1min/<5mA
	Safety standards	CCC(China)GB19510.1，GB19510.14; TUV(Germany) EN61347-1，EN61347-2-13，EN62493
		CB(CBmember states) IEC61347-1，IEC61347-2-13; CE(European Union) EN61347-1，EN61347-2-13，EN62384
		RCM(Australia) AS 61347-1，AS 61347-2-13;ENEC(Europe) EN61347-1，EN61347-2-13，EN62384
	EMI Emission	CCC(China) GB/T17743，GB17625.1
		CE(European Union)EN55015，EN61000-3-2，EN61000-3-3，EN61547
		RCM(Australia)EN55015，EN61000-3-2，EN61000-3-3，EN61547
	EMC Immunity	EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
Others	RoHS	RoHS Directive 2011/65/EU, directives (EU)2015/863
	Working	-20…+35℃
	Storage Temp., Humidity	-40…+85℃, 20%-90%RH
	tc	90℃ for safety & 80℃ for life
	Lifetime	50,000h@tc:80℃
	Warranty Condition	5years
	Switch cycle	>25,000 times
	IP rating	IP20
	Material	PC
	Dimension	138.6956.2632.91mm(LWH)
	Packing(weight)	Net weight: 97.1g±5%/PCS; TBD PCS/Carton; TBD kg±5%/Carton; Carton Size: TBDTBDTBDmm (LWH)
