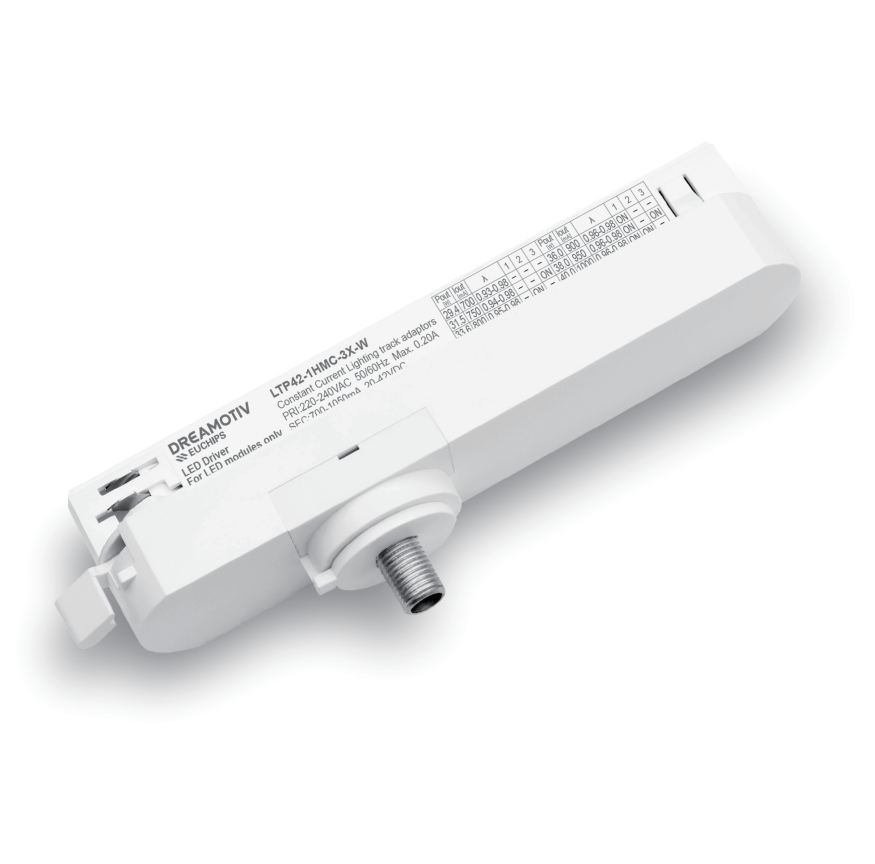

42W 700~1050mA Non-dimmable CC Driver LTP42-1HMC-3X-W B G

Short Description:

Item No.: LTP42-1HMC-3X-W B G
Output Power: 42W

Send email to us Download Spec.

Download Certificates Download Test Reports

Product Detail

Product Tags

42W 700~1050mA Non-dimmable CC Driver LTP42-1HMC-3X-W B G

Features

· The housing is made from V0 flame retardant PC materials from COVESTRO.
· Small size and light weight. Wide range of applicable lamps.
· Class 2 LED driver, Safety Extra Low Voltage (LVLE).
· Innovative thermal management technology intelligently protects the life of the LED driver.
· Overheat, overload, short circuit protection and automatic recovery.
· Up to 50,000-hour life time.
· 5-year warranty (AiSHi capacitor).

Technical Parameters

Model	LTP42-1HMC-3X-W LTP42-1HMC-3X-B LTP42-1HMC-3X-G
Input	Efficiency	≥87.8%, (230VAC，full load)
	Rated Input Voltage	220VAC-240VAC
	Range of Input Voltage	198-264 VAC
	Range of D C Input Voltage	180 -280VDC
	Frequency Range(Hz)	50/60Hz
	Power	≤47.94W (230VAC, full load)
	Power Factor	≥0.99 (230VAC, full l oad)
	THD	≤20% (230VAC, full load)
	Overvoltage protection	48h@320VAC,2hrs@360VAC,5mins@380VAC
	Input Current	≤0.23A
	No-load Power Consumption	≤0.5W @230VAC
	Inrush Current	≤18A/2.8us (230VAC，full load)
	Connected quantity of 10A Breaker Connected quantity of 16A Breaker Connected quantity of 20A Breaker	27pcs/type A ;44pcs/type B ;71pcs/type C@230Vac 44pcs/type A ;71pcs/type B ;113pcs/type C@230Vac 55pcs/type A ;88pcs/type B ;142pcs/type C@230Vac
	Current(mA)/Voltage (VDC)	700mA/20-42V/14.0-29.40W 750mA/20-42V/15.0-31.50W 800mA/20-42V/116.0-33.60W 850mA/20-40V/17.0-34.00W 900mA/20-40V/18.0-36.00W 950mA/20-40V/19.0-38.00W 1000mA/20-40V/20.0-40.00W 1050mA/20-40V/21.0-42.00W
	Power(W)
	No Load Voltage	59VDC Max.
Output	Current Ripple(< 120 Hz)	±5% (Imax-Imin)/(Imax+Imin)
	PstLM	≤1
	SVM	≤0.4
	Current Accuracy	±5%
	Started Delay Time	≤0.5S (230VAC，full load)
Protection	Short Circuit Protection	Auto Recovery
	Overload Protection	Auto Recovery
	No-load Protection	Auto Recovery
	Insulation voltage	3000V 5mA 60S between P-S
	Insulation resistance	>100M ohm @ 500VDC
	Leakage current	<250µA, I/P to O/P @230V input
Standards	Safety Standards	EN61347-1:2015/A1:2021; EN61347-2-13:2014/A1:2017;
	Performance	EN62384
	Surge	L-N/2KV
Environment	Ta/Operation Temperature	-25….+35℃
	Ts/Storage Temperature	-25….+85℃
	Tc/Enclosure Temperature	85℃
	Humidity	10%. 90%RH
	Atmosphere	86-108KPa
Construction	Connection Method	Push-in Terminal
	Installation	Independent
	SEC Wire preparation	0.5-1.5²
	Dimension	1433432.3mm (LW H)
Others	RoHS	Complied to 2011/65/EU
	Life Time	50000h Tc=85℃ 75000h Tc=80℃ 100000h Tc=75 ℃
	Warranty	5years, F.R. <10000ppm
	Noise	≤ 24dB @Background noise ≤ 18dB ，Interval≥ 15cm
Remark	All Parameters, if not specified, are measured at 230VAC/50Hz and 25℃ ambient temperature. LED Driver is a component of the luminaires, Luminaires and wire layout will affect the EMC, please check the EMC with end products again.
