48W 340/400/470mA Non-dimmable CC Driver LTS48-1HMC
48W 340/400/470mA Non-dimmable CC Driver LTS48-1HMC

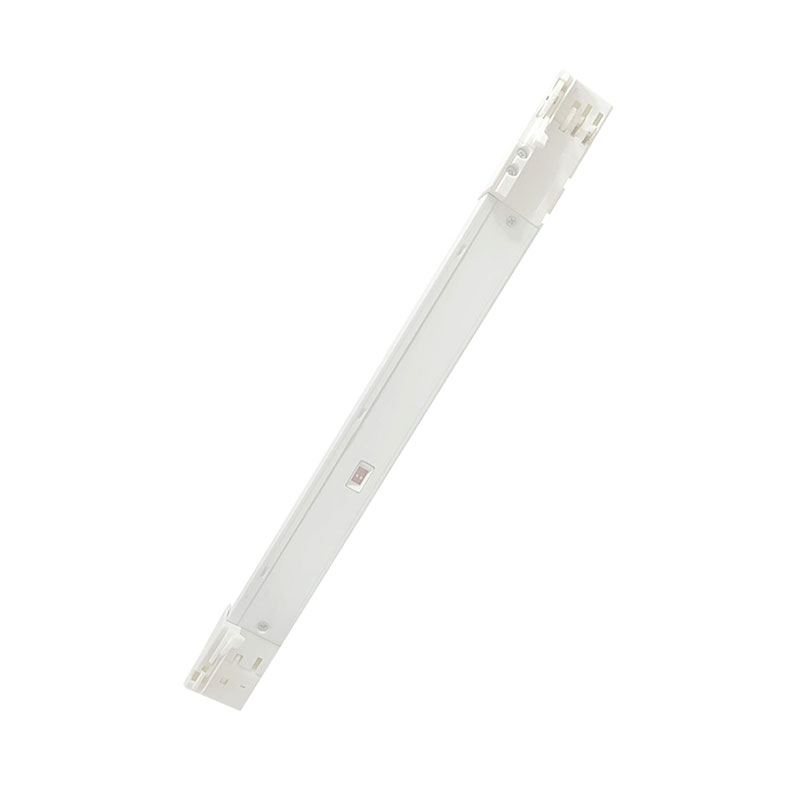

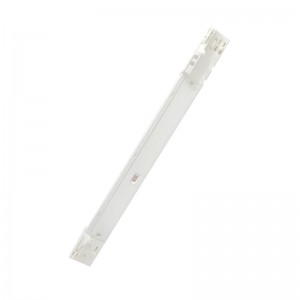

The LTS48-1HMC is a 48W constant-current LED driver featuring an ultra-slim profile design, widely used in track lighting applications.
Features
Single-channel constant current output
High voltage input: 220VAC ~ 240VAC
High efficiency up to 91%
No-load power consumption ≤1W, THD <15%
Ultra-thin design
Protections: Open-circuit, short-circuit, over-temperature
Technical Parameters
| Model | LTS48-1HMC | |
|
Input |
Input Voltage | 220VAC-240VAC |
| Frequency Range(Hz) | 50/60Hz | |
| Input Current | 0.28Amax@230VAC | |
| Power Factor | 0.98@230VAC, full load | |
| Efficiency | ≥91%@230VAC, full load | |
| THD | 15%@230VAC, full load | |
| No-load power | <1W | |
| Inrush Current | Cold start, 23A@230VAC 200us | |
|
Output |
Voltage/Current/Power | 340mA/60-100VDC/34W 400mA/60-100VDC/40W 470mA/60-100VDC/47W |
| Current Accuracy | ±5% | |
| Output frequency | 65KHz | |
| No-load power | 250VDC max | |
| Start-up Time | 0.75s, at230Vac(When the light begins to shine) | |
|
Protection |
Short circuit | No output, Auto-recovery after Fault Clearance |
| Open circuit | When an LED open-circuit occurs, the output voltage rises. Once it exceeds the no-load voltage set by the ROVP resistor, the IC enters hiccup mode until the fault is cleared, after which normal operation resumes. | |
| Over-temperature | When the IC temperature exceeds 150°C, the chip enters overtemperature regulation mode, gradually reducing output current to control both output power and temperature rise. | |
|
Safety& EMC |
Surge | L-N: 1kV L-G: 2kV N-G: 2kV L&N-G: 2KV (Comb Wave) |
| Withstand Voltage | I/P-PG: 1500VAC/1min/5mA O/P-PG: 500V/1min/5mA | |
| EMC Emission | EN55015 | |
|
Others |
Working temp. | ta:-20-50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| Lifetime | 50,000h@tc:80℃ | |
| Warranty | 5years | |
| Switch cycle | 25,000 times | |
| IP rating | IP20 | |
| Dimension | 383*36*32mm(L*W*H) | |
| Packing size | Net weight: —g±5%/PCS; –PCS/Carton; –kg±5%/Carton; Carton Size:–*–*–mm(L*W*H) | |
