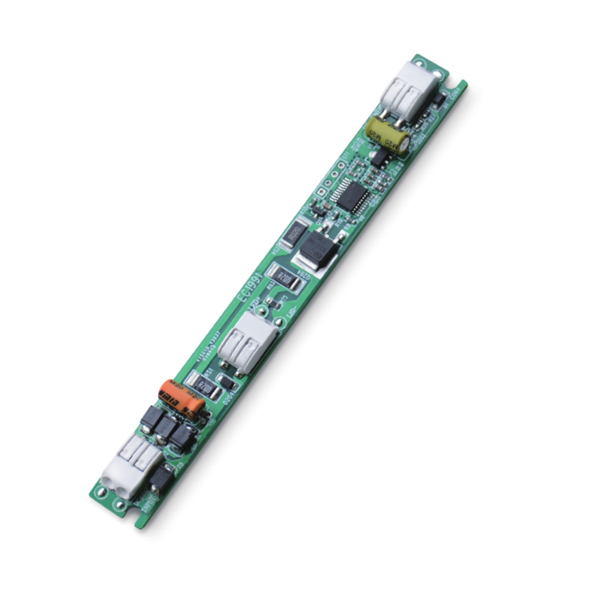

48W 48VDC DC-DC Driver BMP48A-1S48V
48W 48VDC DC-DC Driver BMP48A-1S48V
Features
· Single channel constant voltage output,DC24V-48V
· Support 3-in-1 dimming function(Active signal,adjustable resistance, PWM)
· Dimming range from 0.5-100%
· input voltage of DC24V-48V
· High efficiency up to 90%
· 100% output when no dimming signal input, can be used as normal power supply
· Dimming effect smooth, no flicker
· Suitable for indoor LED lighting application
Technical Parameters
| Model | BMP48A-1S48V | |
| Input | Efficiency | 90%@48VDC, full load |
| Voltage | 24VDC-48VDC | |
| Current | 1.1Amax@48VDC | |
| Standby Power | – | |
|
Output |
Current | 1A |
| Voltage | 24-48V | |
| Power | 24W max@24V 48Wmax@48V | |
| Accuracy | ±8%[9-40VDC] | |
| Out put lf current ripple(＜120Hz) | Same as LF ripple on 48V bus | |
| Channel | 1 | |
| Function | Dimming mode | 0/1-10V |
| Dimming depth | 0.5%-100% | |
|
Protection |
No-load operation | The led driver will not be damaged in no-load operation |
| Short circuit | Shut down the output self-recovery after removing the fault | |
| Over load | Shut down the output self-recovery after removing the fault | |
| Input reverse connection | Operation normally | |
| Hot plug | Input Support | |
|
Others |
Storage Temperature | -40~85℃ |
| Relative Humidity | 20~90% RH | |
| Operating Temperature | -20℃ ~ 60℃ | |
| tc | 70℃ | |
| IP rating | IP20 | |
| Lifetime | 50,000h@ta:50℃ | |
| Switch cycle | >25000 | |
| Pcb Dimension | 125*14*5mm（L*W*H） | |
| Packing(weight) | Net weight: 9.6g±5%/PCS; 200PCS/Carton; 2.4kg±5%/Carton; Carton Size: 276*180*136mm(L*W*H) | |
