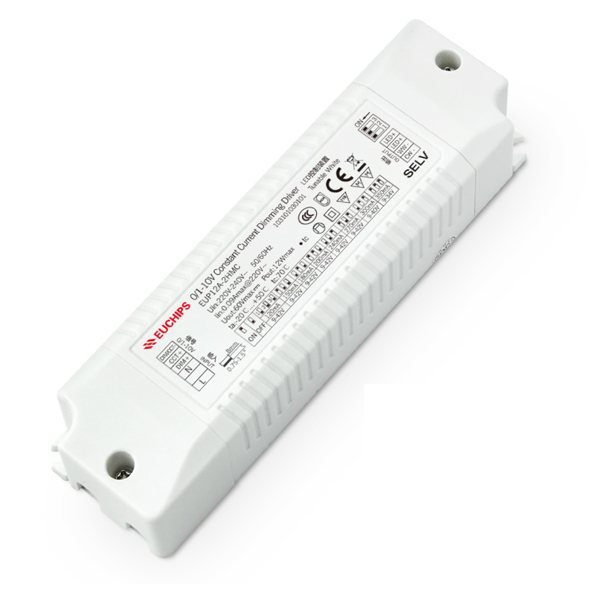

12W 120~350mA*2ch 0/1-10V CC Driver EUP12A-2HMC

Short Description:

  • Item No.: EUP12A-2HMC
  • Input Voltage: 220-240VAC
  • Output Current: 120/150/180/200/240/ 270/300/350mA
  • Output Voltage: 9-42VDC
  • Output Power: 12W
  • Dim Mode: 0/1-10V
  • G.W.: 110g
  • Size: 150*43*29mm

Product Detail

Product Tags

12W 120~350mA*2ch 0/1-10V CC Driver EUP12A-2HMC

UP12Z-2HMC is an LED driver that can provide 120 / 150 / 180, 200 / 240, 270 / 300 / 350 ma current.
The output current can be set through the DP dip switch profile to achieve
wireless dimming and color matching through ZigBee.


1. Two channel output, output current level selectable by DIP S.W.

2. High efficiency up to 85 %

3. Built-in active PFC function

4. Protections: Short circuit, over load, over Voltage

5. Suitable for indoor LED lighting application, such as down light, panel light, and so on

Technical Parameters

Model EUP12A-2HMC
Input Efficiency >85%@230VAC,Full load
Voltage 220VAC-240VAC
Frequency Range(Hz) 50/60Hz
Power Factor ≥0.95@230VAC,Full load
THD(full load) <10%@230VAC, Full load
AC Current(max) 0.09Amax@230VAC
Standby power <0.5W
Inrush Current(max) Cold start,10A(twidth=14us measured at 50% Ipeak)@220VAC
Output Current(mA)/Voltage (VDC) Power(W) *120mA/9-42VDC/5.04W 150mA/9-42VDC/6.3W
180mA/9-42VDC/7.56W 200mA/9-42VDC/8.4W
240mA/9-42VDC/10.1W 270mA/9-42VDC/11.34W
300mA/9-40VDC/12W 350mA/9-34VDC/11.9W
Ripple Current <3%
Channel 2
Current Tolerance ±5% ;*120mA ±7%A
No load output voltage 60V Max
Turn on delay Time <0.75s, at230Vac
Function Dimming Type 0/1-10V
Dimming Range 0.1%-100% Dimming to off
color temperature 3000k-6000k
Protection Short Circuit Close output, recovers automatically after fault removed
Over Load When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced.
over Voltage Close output, recovers automatically after fault removed
 Safety& EMC Surge L-N:1KV
Withstand Voltage I/P-O/P: 3750VAC/1min/5mA
Safety Standards EN61347, GB19510
EMC Eission EN55015, EN61000-3-2
EMC Immunity EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
Others Working Temp. -20℃~50℃
Storage Temp., Humidity -40℃~85℃ 20-90%RH
tc 70℃
Material PC
IP Rating IP20
Lifetime 50,000h@tc:70℃
Warranty Condition 5 Years
Switch Cycle >25,000 times
Packing(weight) Net weight:  110g±5%/PCS;  50PCS/Carton; 6.3kg±5%/Carton; Carton  Size: 319*254*136mm(L*W*H)
Dimension 150*43*29mm(L*W*H)
