4ch 200~1600mA DMX512/RDM CC Decoder PX707

Short Description:

  • Item No.: PX707
  • Input Voltage: 12-50
  • Output Current: 200-1600mA*4CH
  • Output Voltage: 1-42
  • Output Power: -
  • Dim Mode: DMX512/1990
  • G.W.: 240
  • Size: 135×69×36

Product Detail

Product Tags

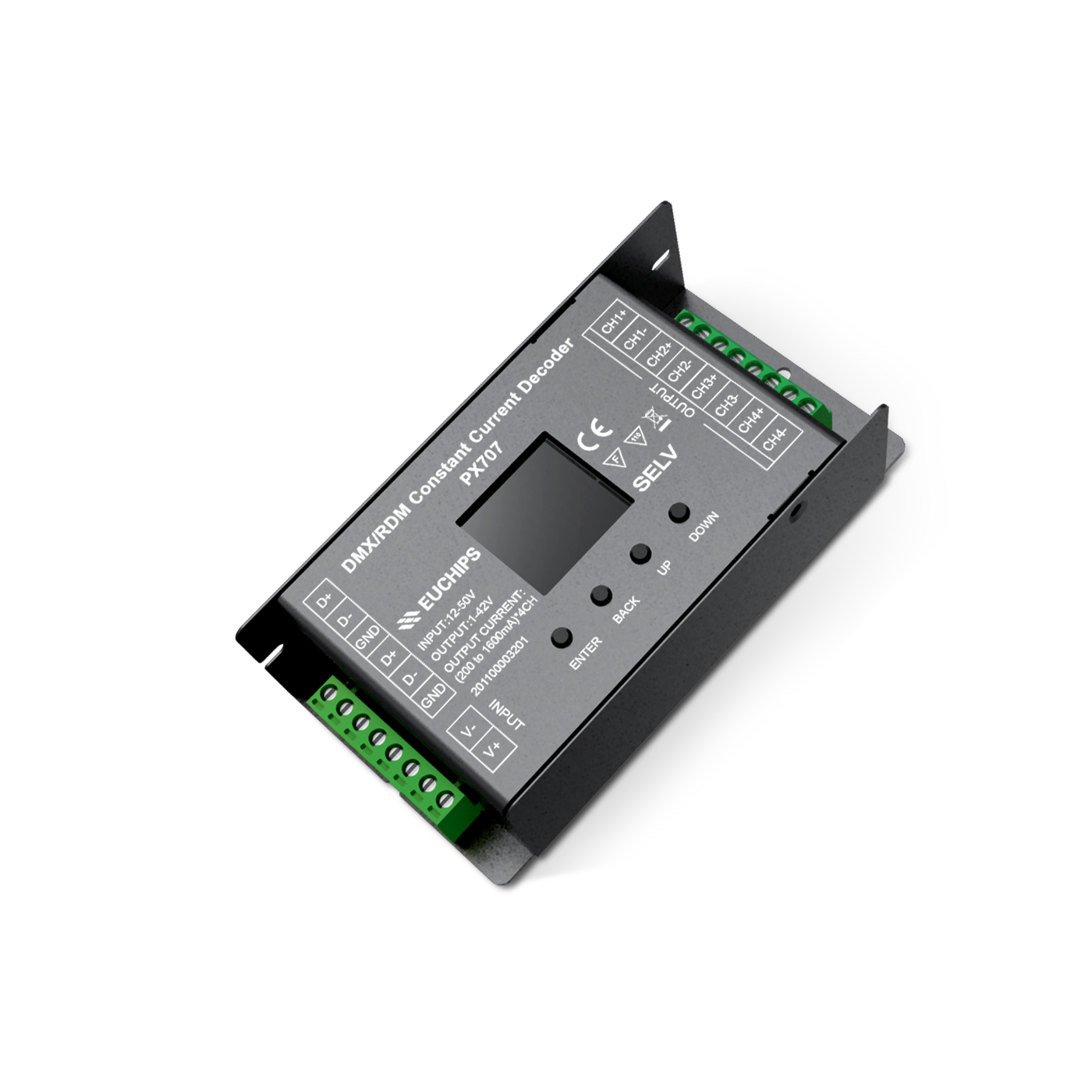

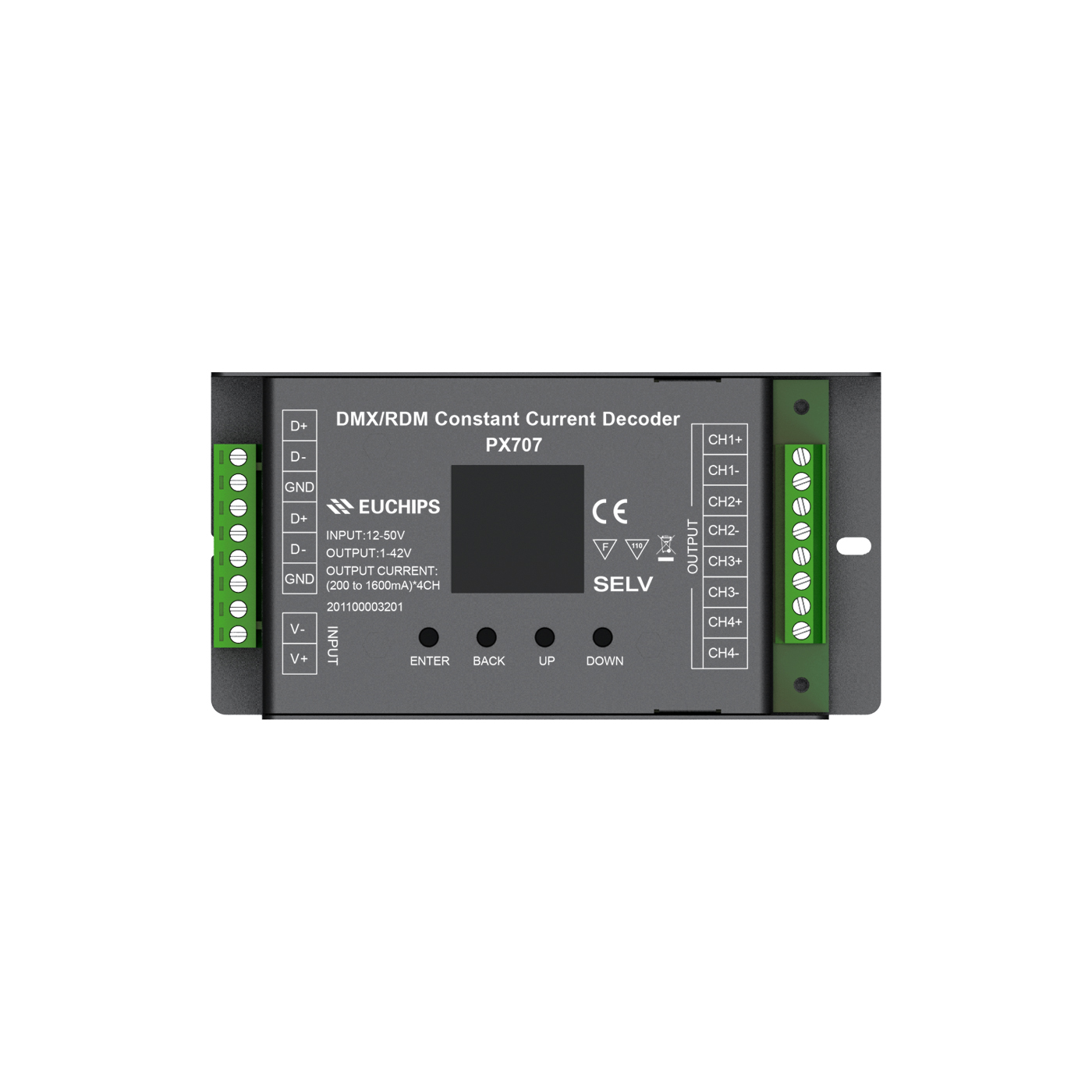

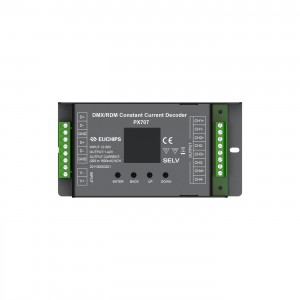

4ch 200~1600mA DMX512/RDM Constant Current Decoder PX707


1. Meet DMX512/1990, RDM/2009 international standard protocol

2. 4 output channels, output current 200 to 1600mA per channel

3. Can easily set DMX address by button

4. Can easily set output current each channel

5. With the light color selected mechanism, and be able to control

the light with 1~4 colors

6. 256/65536 level brightness, full-color control

7. For customer setup and use easily, the default address code is 1

8. Address setting become brightness setting when DMX signal isn’t connected

9. Suitable for buildings, hotels, KTV, home and other places

Technical Parameters


Channels 4 channels
Input Voltage 12-50V DC
Output Voltage 1-42V DC
Output Current 200 to 1600mA per channel
Protection Short-circuit protect,Over current protect, Over temp protect
Pack Size 135(L)×69(W)×36(H) mm
N.G. 240g
