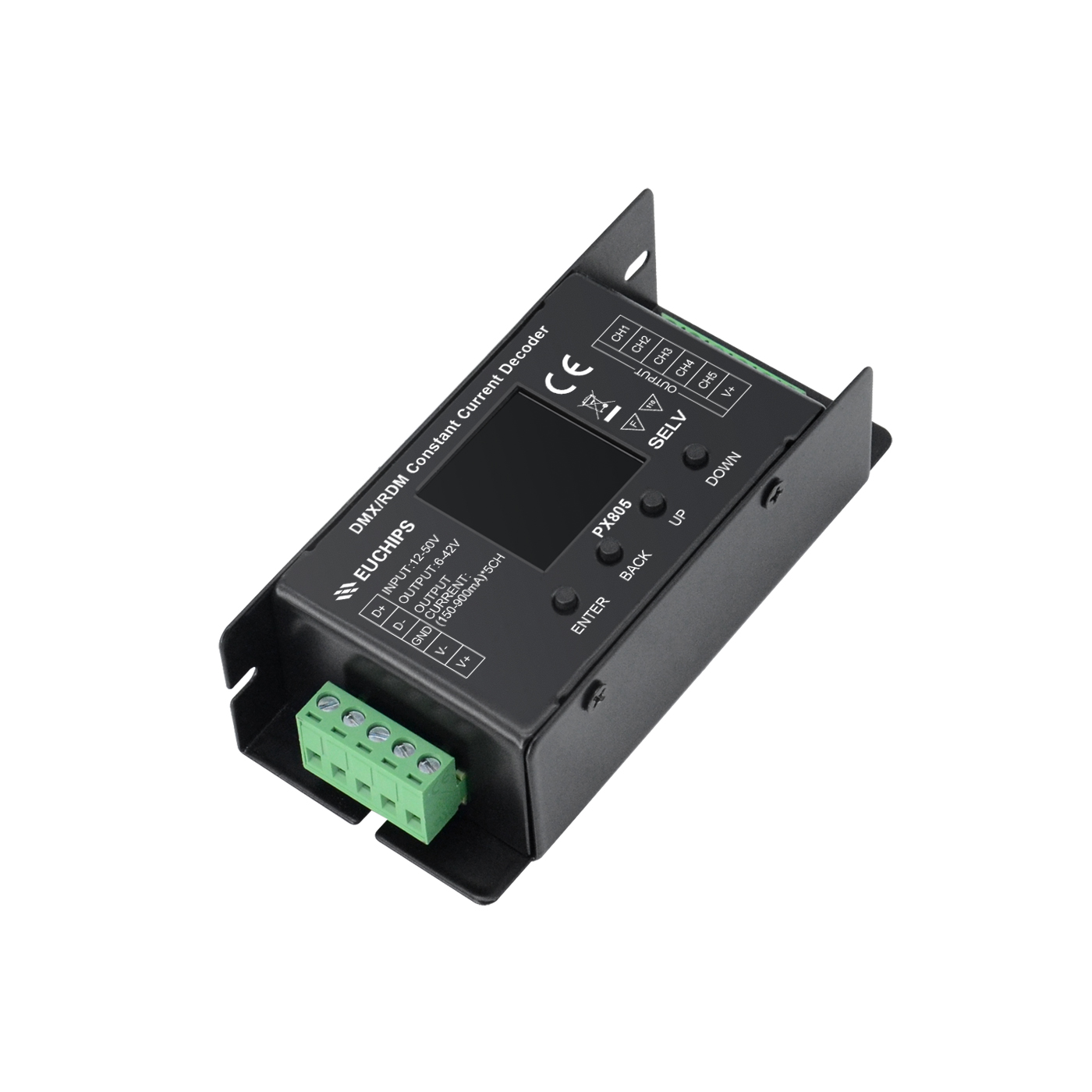

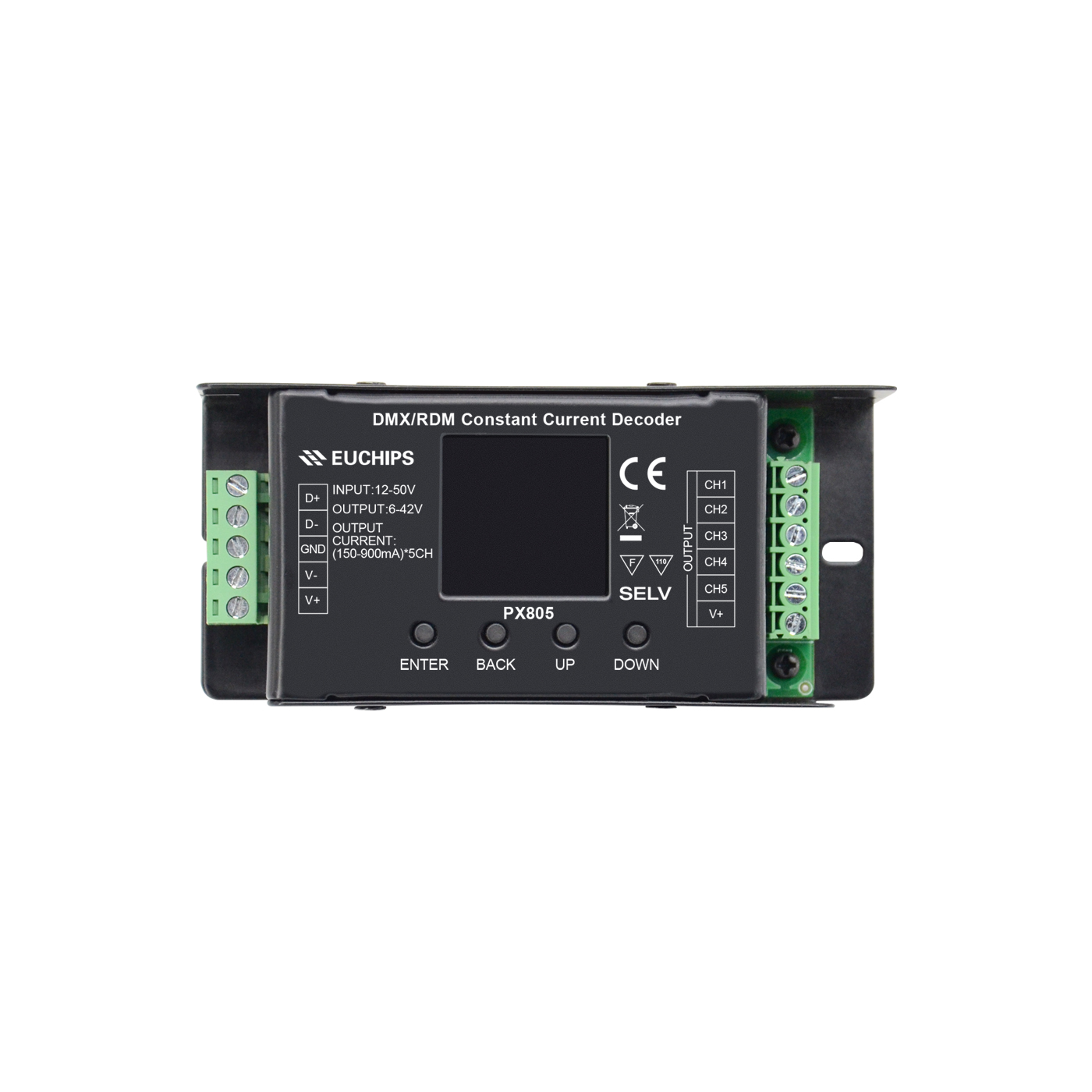

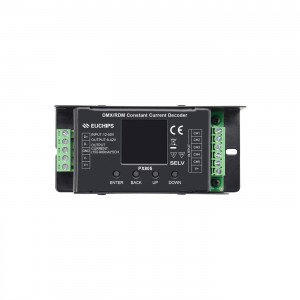

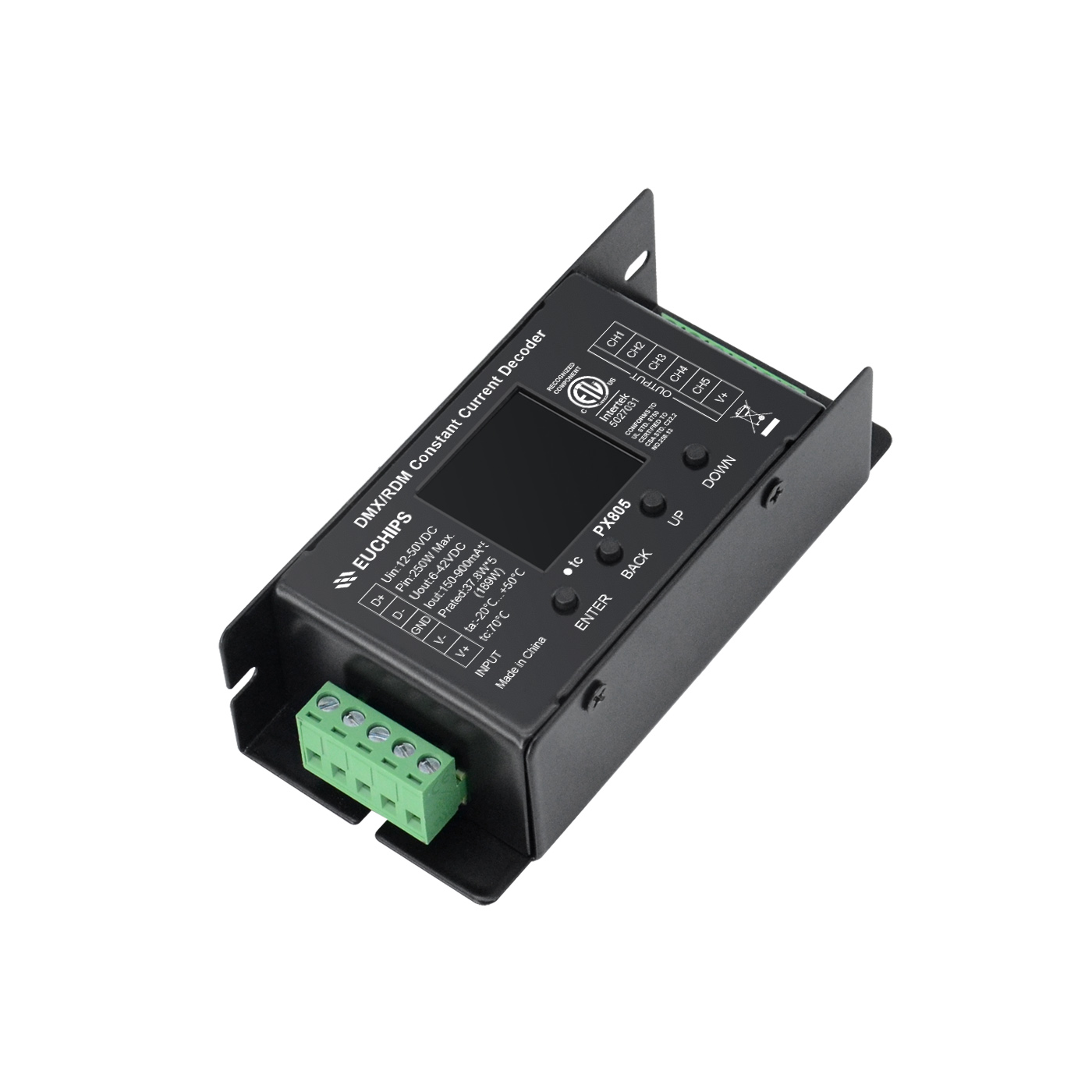

150~900mA*5ch DMX512/RDM CC Decoder PX805

Short Description:

  • Item No.: PX0805

Product Detail

Product Tags

150~900mA*5ch DMX512/RDM CC Decoder PX805

Features

1. Meet DMX512/1990, RDM/2009 international standard protocol

2. 5 output channels, output current 150 to 900 mA per channel,16 gears adjustable, 50mA per gear change

3. Can easily set DMX address by button

4. Can easily set output current each channel

5. With the light color selected mechanism, and be able to control the light with 1~5 colors

6. 8 Bit /16 Bit level brightness, full-color control

7. For customer setup and use easily, the default address code is 1

8. Address setting become brightness setting when DMX signal isn’t connected

9. Suitable for buildings, hotels, KTV, home and other places

Techinical Parameters



Channels 5 channels
Input Voltage 12-50V DC
Standby power <0.5W
No load power <1W
Output Voltage 6-42V DC
Output Current 150-900mA per channel
Output Power 37.5W*5CH MAX187.5W
Protection Short-circuit protect,Over current protect, Over temp protect
Dimension 116(L)×54(W)×35(H) mm
N.G. 235g
Operation Temperature -20 – 50 ℃
