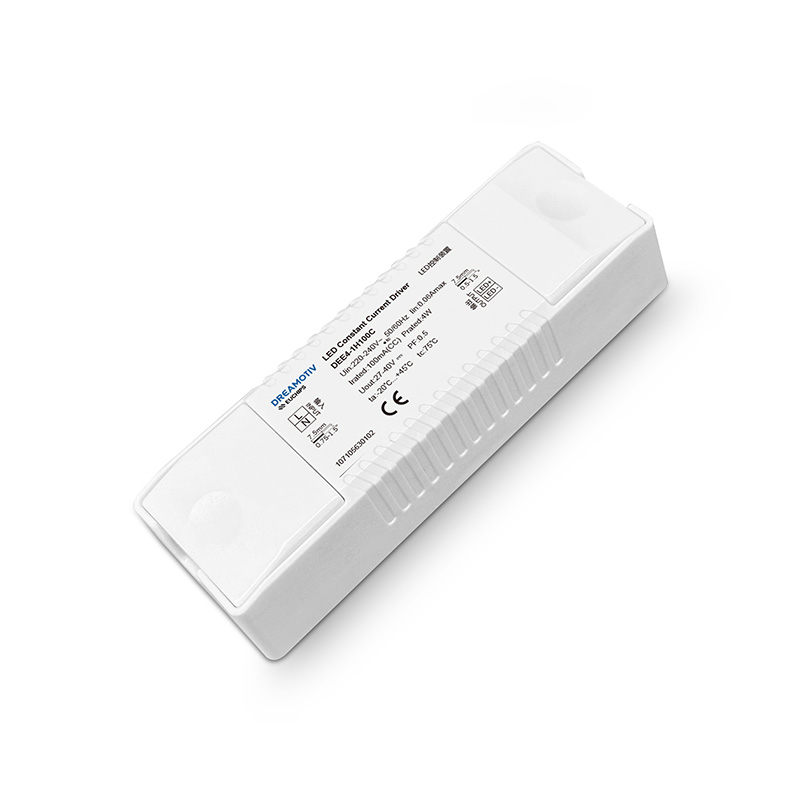

4W 100mA Non-dimmable CC Driver DEE4-1H100C
4W 100mA Non-dimmable CC Driver DEE4-1H100C
Features
· Single constant current output
· Short circuit, overcurrent, overload, overvoltage, over-temperature, V0-level flame-retardant housing
· High voltage input: 220VAC to 240VAC
· Protection grade IP20, suitable for indoor Class II lamps
· Compact body and flicker-free design
· Lifespan: 50,000 hours, 5-year warranty
· It is suitable for LED indoor lighting fixtures, such as downlights, panel lights, etc
Technical Parameters
| Model | DEE4-1H100C | ||||
|
Input |
Input Voltage | 220VAC-240VAC | |||
| Frequency Range(Hz) | 50/60Hz | ||||
| Input Current | 0.06Amax@230VAC | ||||
| Power Factor | >0.5@230VAC, Full load | ||||
| Efficiency | 82%@230VAC, Full load | ||||
| THD | / | ||||
| Standby power | <0.5W | ||||
| No-load power | <0.5W | ||||
| Inrush Current | Cold start,8.5A@230V 36us | ||||
|
Output |
Output Voltage | 27VDC-40VDC | |||
| Output Current | 100mA | ||||
| Output Power | 4W | ||||
| Current Accuracy | ±10% | ||||
| Ripple current | <3% | ||||
| Output Power Range | 2.7W~4W | ||||
| PstLM | ≤1 | ||||
| SVM | ≤0.4 | ||||
| Dimming frequency | / | ||||
| Line Regulation | ±5% @Full load | ||||
| Load Regulation | ±5% @Full load | ||||
| Turn on delay Time | 0.5s, at230Vac (When the light begins to shine) | ||||
|
Protection |
Short circuit | If the positive and negative terminals of the output are short-circuited, the short-circuit protection function can prevent the product from being permanently damaged. | |||
| Over Current | Output overcurrent protection,A current limiting | ||||
| Over load | Limit the output power to 110%-150% of the rated power | ||||
| Over Voltage | Output overvoltage protection | ||||
| Over temperature | When the temperature exceeds the standard value, the output power decreases or the operation stops. Restore after the fault conditions are eliminated | ||||
|
Safety& EMC |
Surge | L-N:1KV | |||
| Withstand Voltage | I/P-O/P: 3750VAC/1min/5mA | ||||
| Safety Standards | CCC (China) GB19510.1, GB19510.14; TUV (Germany)EN61347-1, EN61347-2-13, EN62493 | ||||
| CB (CBmember states) IEC61347-1, IEC61347-2-13; CE (European Union)EN61347-1, EN61347-2-13, EN62384 | |||||
| RCM (Australia) AS 61347-1，AS 61347-2-13 EMEC; (Europe)EN61347-1，EN61347-2-13，EN62384 | |||||
| EMC Emission | CCC (China) GB/T17743，GB17625.1 | ||||
| CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | |||||
| RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | |||||
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | ||||
| Environment | Working Temp. | -20℃~45℃ | |||
| Storage Temp. | -40℃~85℃ | ||||
| Storage Humidity | 10-90%RH (No condensation) | ||||
|
Others |
RoHS | Comply with 2011/65/EU | |||
| tc | 75℃ | ||||
| material | PC | ||||
| IP Rating | IP20 | ||||
| Lifetime | 50,000h@tc:75℃ | ||||
| Warranty Condition | 5years | ||||
| Switch Cycle | 25,000times | ||||
| Body size | 90*29*21mm (L*W*H) | ||||
| Packing(weight) | Net weight: 31g±5%/PCS; 120PCS/Carton; 4.3kg±5%/Carton; Carton Size: 285*260*115mm(L*W*H) | ||||
| Noise | In a quiet environment, no noise beyond 30-50cm | ||||
| Remark | All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions. | ||||
