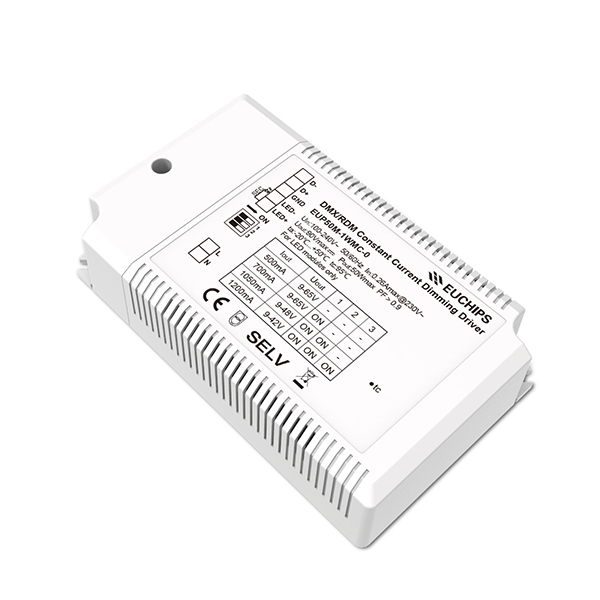

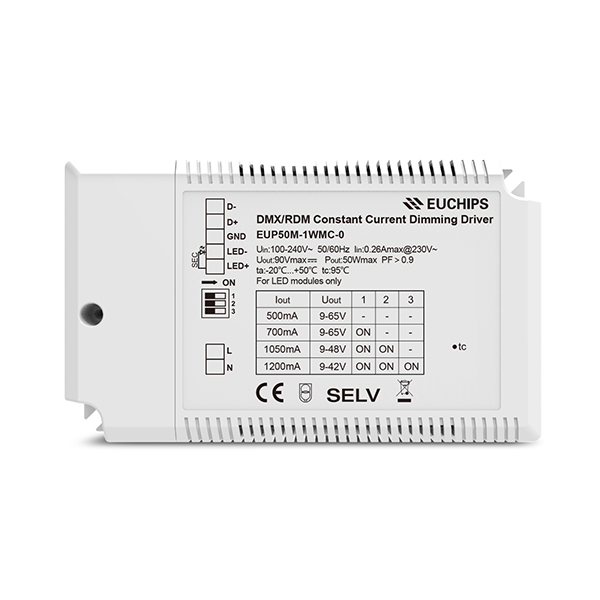

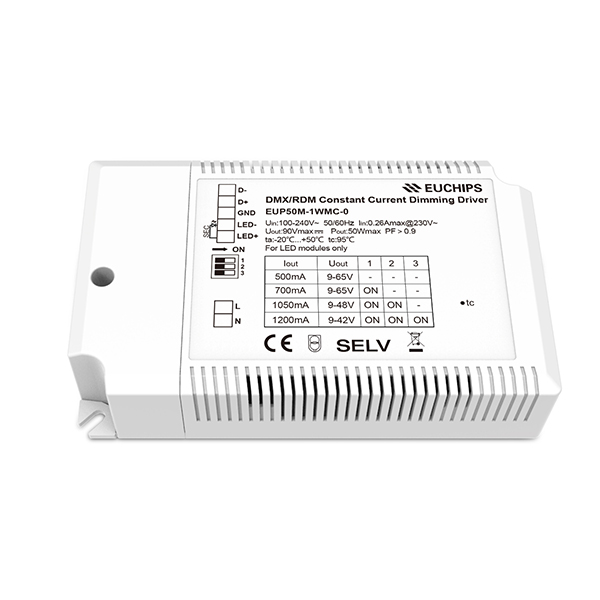

50W 500/650/700/850/1000/1050/1200mA CC DMX Driver EUP50M-1WMC-0
50W 500/650/700/850/1000/1050/1200mA Constant Current DMX Driver EUP50M-1WMC-0
Feature
1. Single channel output, output current level selectable by DIP S.W.
2. Support DMX512(1990)
3. Support RDM function
4. Wide input voltage of 100VAC~400VAC
5. High efficiency up to 88%
6. Built-in active PFC function
7. Dimming effect smooth, no flicker
7. Protections: Short circuit, over load
8. Suitable for indoor LED lighting application, such as down light, panel light, and so on
Technical Parameter
| Model | EUP50M-1WMC-0 | ||||
| Output | Current |
500mA |
650mA |
700mA |
850mA |
| Voltage |
9-65VDC |
9-65VDC |
9-65VDC |
9-59VDC |
|
| Power |
32.5W |
42.2W |
45.5W |
49.3W |
|
| Current |
1000mA |
1050mA |
1200mA |
||
| Voltage |
9-50VDC |
9-48VDC |
9-42VDC |
||
| Power |
50W |
50.4W |
50.4W |
||
| Current Accuracy | ±5% | ||||
|
No load output voltage |
90VDC | ||||
| Output LF current ripple(< 120 Hz) | ＜3% | ||||
| Channels | 1 | ||||
| Input | Voltage | 100– 240VAC | |||
| Frequency | 50/60Hz | ||||
| Current | 0.26Amax@230VAC | ||||
| Power factor | ≥0.9@230VAC,full load | ||||
| Efficiency | 88%@230VAC,full load | ||||
| Inrush Current | Cold start,15A(twidth=22us measured at 50% Ipeak) @230VAC | ||||
| THD | <10%@230VDC, full load | ||||
| Protection | Short Circuit | Shut down the output, recovers automatically after fault removed | |||
| Over Load | Hiccup, recovers automatically after fault removed | ||||
| Function | Dimming | DMX512/RDM | |||
| Others | Dimension | 137*82*31 mm（L*W*H） | |||
| G.W | 220g | ||||
| Working temp. | -20℃ ~ 50℃ | ||||
| Relative humidity | 20~90% RH | ||||
