Brightness Adjust 4ch 3 Areas 4 Scenes DMX Touch Panel Controller DMX-E01
Brightness Adjust 4ch 3 Areas 4 Scenes DMX Touch Panel Controller DMX-E01
Feature
1. Meet DMX512ㄗ1990ㄘinternational standard protocol
2. Control 4 zones brightness separately or synchronously
3. 4 customized scenes can be saved
4. Each channel can achieve 256 levels brightness adjustment
5. Memory function, remember the last brightness after turn off
6. High sensitive & high stable Glass touch, fast & precise control
7. Interface using tempered glass material, stylish appearance
Technical Parameter
| Product Name | Brightness Adjust 4ch 3 Areas 4 Scenes DMX Touch Panel Controller |
| Item | DMX-E01 |
| Voltage | 5V DC |
| Power | 3.5W |
| Channels | 4 |
| Zones | 4 |
| Scenes | 4 |
| Indicator lights | 9 |
| Dimming | DMX512 |
| Product size | 86(L) *86 (W)*10 (H) mm |
| N.G. | 110g |
| Packaging size | 145(L)*135(W)*48(H) mm |
| Work temperature | 0⊥ – 50⊥ |

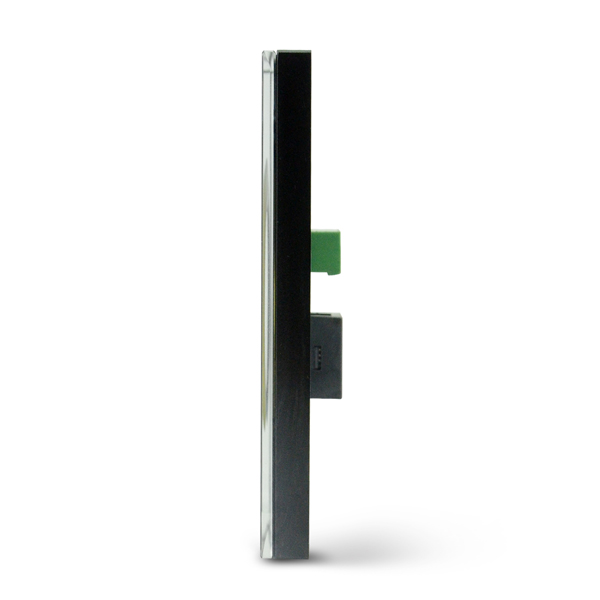

Dimension

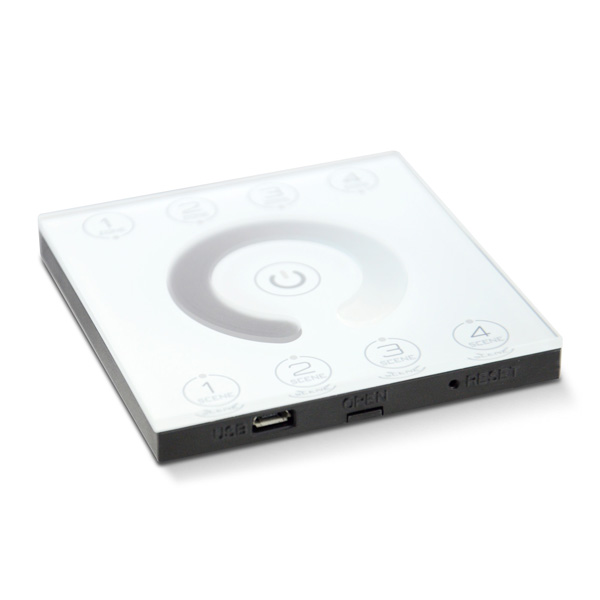

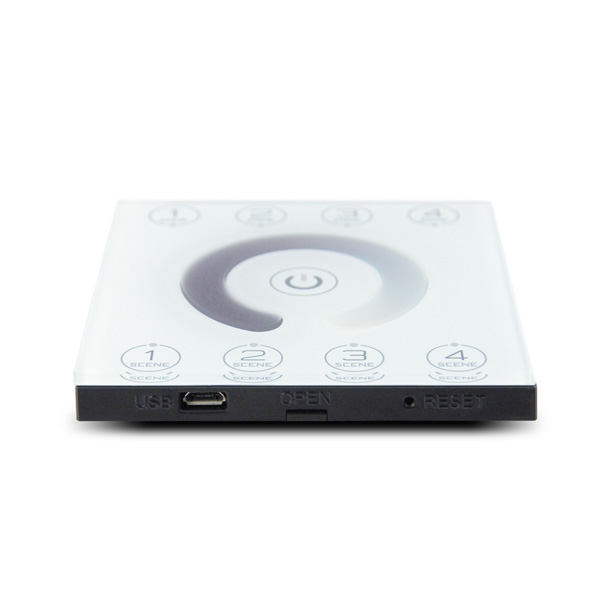

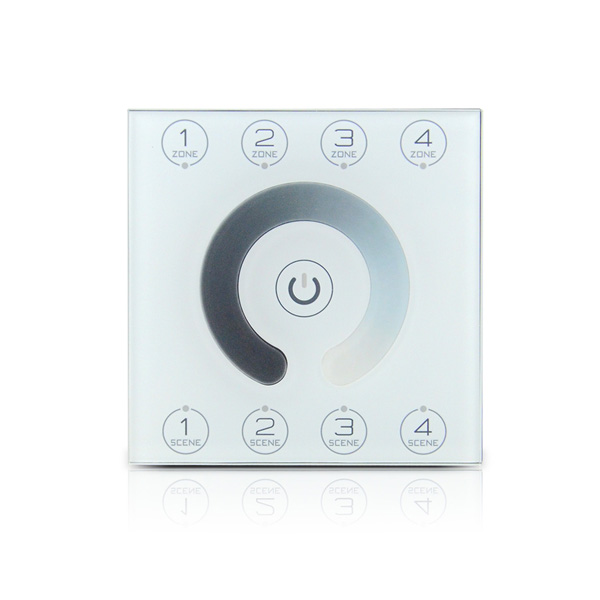

Appearance

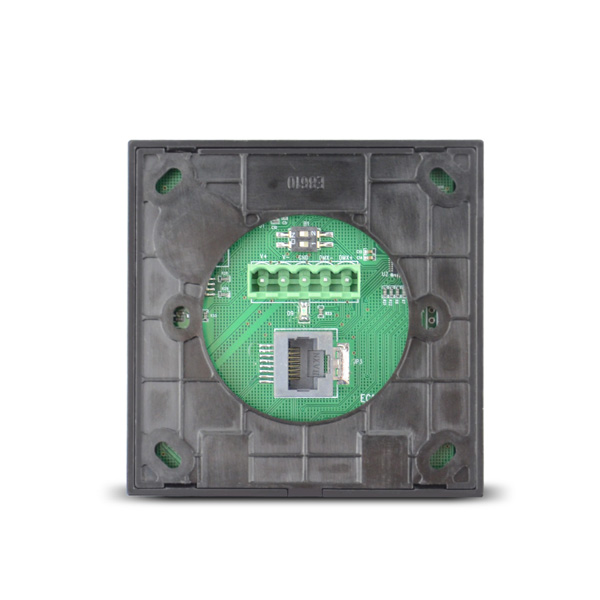

Interface
