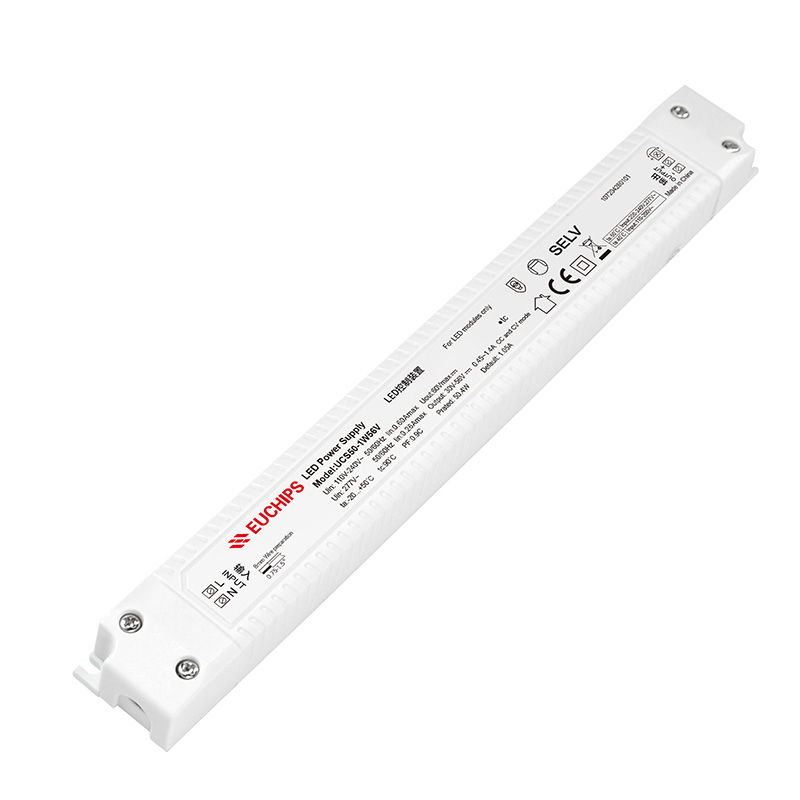

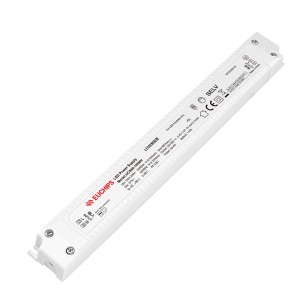

50W 56VDC Non-dimmable CV Driver UCS50-1W56V
50W 56VDC Non-dimmable CV Driver UCS50-1W56V
Features
·Current + Voltage Output Mode
·Short circuit, overcurrent, overload protection, V0 flame-retardant housing
·Slim-profile linear design for easy installation in confined spaces
·50,000-hour lifespan with a 5-year warranty
·100% full-load burn-in testing
·IP20 rating for indoor LED strip applications
Technical Parameters
| Model | UCS50-1W56V | ||
| Input | Rated Voltage Range | 110VAC-305VAC | |
| Rated Voltage | 110VAC-277VAC | ||
| Frequency Range(Hz) | 50/60Hz | ||
| Input Current | 0.6Amax@110VAC、0.28Amax@230VAC、0.26Amax@277VAC | ||
| Power Factor | 0.97@110VAC , 0.95@277VAC, Full load | ||
| Efficiency | >87.5%@110VAC , >89.5%@277VAC, Full load | ||
| THD(full load) | <10%(@load≥60%/115VC,230VAC; @load≥75%/277VAC) | ||
| Leakage current | <0.25mA / 277VAC | ||
| Standby power | <0.5W | ||
| No load power | <0.5W | ||
| Inrush Current | Cold start 9.5A(Test twidth=256us at 50% Ipeak)/230VAC; Per NEMA 410 | ||
| Output | Output Voltage | 56VDC | |
| Constant Current Range | 30-56V | ||
| Current adjustment range | 0.45~1.4A | ||
| Full power current range | 0.9~1.4A | ||
| Output current accuracy | ±5% | ||
| Output default current | 1.05A | ||
| Output Power Range | 50.4W | ||
| Strobe (depth of fluctuation) | IEC-Pst≤1，CIE SVM≤0.4,Meets the flicker free standard (IEEE Std 1789-2015) | ||
| Line regulation | ±0.5% @Full load | ||
| Load regulation | ±1.5% @Full load | ||
| Turn on Time | 500ms, 80ms/115VAC, 230VAC | ||
| Protection | Short circuit | Hiccup Protection, Auto-recovery after Fault Clearance | |
| Overcurrent | Hiccup Protection, Auto-recovery after Fault Clearance | ||
| Overload | 110-150% hiccup mode can automatically recover after the abnormal load conditions are removed | ||
| overvoltage | 60-70V belching mode can automatically recover after the abnormal load conditions are removed | ||
| Safety & EMC | Surge | L-N:1KV | |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | ||
| Safety standard | UL8750, CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, | ||
| BS EN/EN62384; EAC TP TC 004,GB19510.1,GB19510.14,IS15885(Part2/Sec13) ,EN60335-1 Certification passed | |||
| EMC | CCC (China) GB/T17743，GB17625.1 | ||
| CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | |||
| EMI | RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | ||
| EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |||
| Environment | Working Temp. | -20℃~50℃ | |
| Storage Temp. | -40℃~85℃ | ||
| Storage Humidity | 20-90%RH (No condensation) | ||
| Others | RoHS | Comply with 2011/65/EU | |
| tc | 90℃ | ||
| material | Metal | ||
| IP Rating | IP20 | ||
| Lifetime | 50,000h@tc:90℃ | ||
| Warranty Condition | 5years | ||
| Switch Cycle | 25,000times | ||
| Body size | 250*30*17mm (L*W*H) | ||
| Packing(weight) | Net weight: 115g±5%/PCS; 50PCS/Carton; 6.25kg±5%/Carton; Carton Size:435*285*95mm(L*W*H) | ||
| Noise | In a quiet environment，No noise outside 30-50cm | ||
| Remark | All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions. | ||
