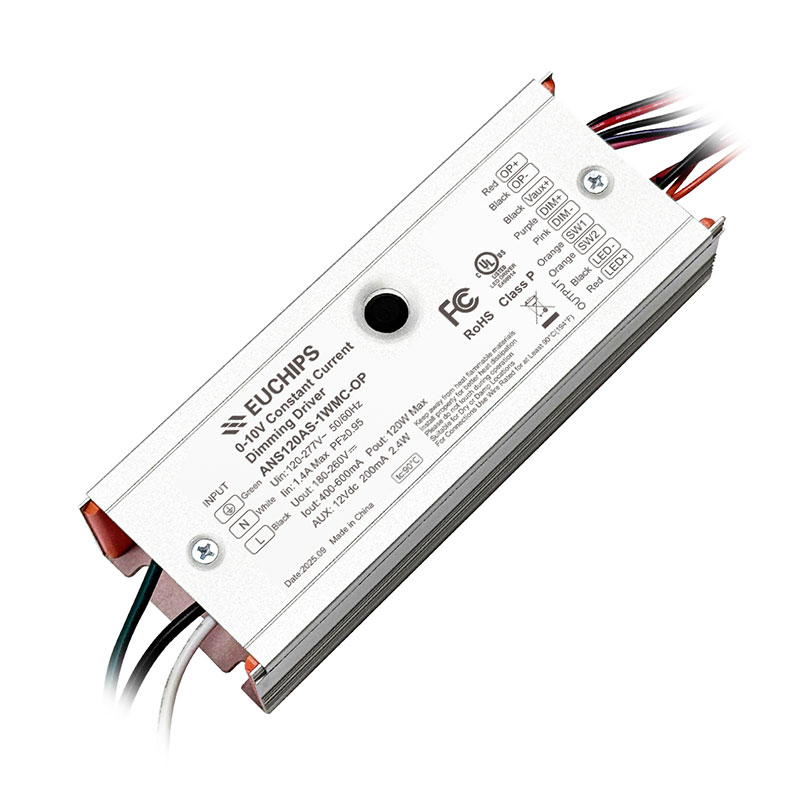

120W 400~600mA*1ch 0-10V CC Driver ANS120AS-1WMC-OP
120W 400~600mA*1ch 0-10V CC Driver ANS120AS-1WMC-OP
Features
• Input voltage range: 90-305Vac
• Supports isolated dimming (0-10V active signal, PWM signal, resistor)
• Adjustable Output Current (AOC) with Potentiometer
• High Efficiency up to 96.0%
• Auxiliary Power: 12VDC, 200mA(AS Version)
• Support for external DIP switches to adjust power
• Support for external light control switch
• Protection: IUVP,SCP,OVP, OTP
• Input surge protection: Differential mode: 6kV, Common mode: 6kV(ANSI/C82 .77-5-2017)
• 5-year warranty
• Safety according to UL8750
Technical Parameters
| Model Number | Input Voltage Range | Max. Output Power | Output Voltage Range | Output Current Range | Default Current | Efficiency (Typ.) | PF(Typ.) | THD(Typ.) |
| ANS120A-1W* | 90-305Vac | 120W | 180-260Vdc | 0.40-0.60A | 0.55A | 96.0% | 0.98 | 7% |
| ANS120AS-1W* | 90-305Vac | 120W | 180-260Vdc | 0.40-0.60A | 0.55A | 96.0% | 0.98 | 7% |
Note: All specifications are measured at 25℃ ambient temperature, input voltage 220Vac, and the typical value tested by full load
* Means Additional Function
| Models | 0-10V/PWM/Res dimming | Auxiliary 12V/200mA | DIP switch | Light control switch |
| ANS120A-1W | √ | |||
| ANS120A-1WMC | √ | √ | ||
| ANS120A-1W-OP | √ | √ | √ | |
| ANS120AS-1W | √ | √ | ||
| ANS120AS-1WMC | √ | √ | √ | |
| ANS120AS-1W-OP | √ | √ | √ | |
| ANS120AS-1WMC-OP | √ | √ | √ | √ |
Technical Parameters
| Model | ANS120A/AS-1W* | ||||
| Parameter | Min. | Typ. | Max. | Remark | |
|
Input |
Rated Input AC Voltage | 120Vac | - | 277Vac | |
| Input AC Voltage Range | 90Vac | - | 305Vac | Reference derating curve | |
| Frequency Range | 47Hz | 50/60Hz | 63Hz | ||
| Input AC Current | - | - | 1.4A | At 120Vac input and 100% load | |
| Input AC Power | - | - | 140W | At 120Vac input and 100% load | |
| Leakage Current | - | - | 0.75MIU | UL 8750; 277Vac/ 60Hz | |
| - | - | 0.70mA | IEC 60598-1; 240Vac/ 60Hz, | ||
| Inrush Current | - | - | 35A | At 120Vac input and 100% load, 25�C Cold Start | |
| - | - | 60A | At 220Vac input and 100% load, 25�C Cold Start | ||
| - | - | 75A | At 277Vac input and 100% load, 25�C Cold Start | ||
| Standby Power | - | - | 0.5W | At 220Vac input and Aux. power without load(AS Version) | |
| Power Factor | 0.95 | 0.98 | - | At 220Vac , 50-60Hz, 100% load | |
| 0.90 | - | - | At 120-277Vac , 50-60Hz, 70%-100% load | ||
| THD | - | 7% | 10% | At 220Vac , 50-60Hz, 100% load | |
| - | - | 20% | At 120-277Vac , 50-60Hz, 70%-100% load | ||
| Parameter | Min. | Typ. | Max. | Remark | |
|
Output |
Output Voltage Range | 180V | - | 260V | |
| Open Circuit Voltage | - | - | 310V | ||
| Output Current Range | 0.40A | - | 0.60A | Adjustable Output Current with Potentiometer; | |
| Efficiency @120Vac | 92.5% | 94.0% | - | At 100% load and Io=0.46A | |
| Efficiency @220Vac | 94.5% | 96.0% | - | At 100% load and Io=0.46A | |
| Efficiency @277Vac | 94.5% | 96.0% | - | At 100% load and Io=0.46A | |
| Output Current Tolerance | -5% | - | +5% | At 100% load | |
| Output Current Ripple(PK-AV) | - | 5% | 10% | At 100% load, 20 MHz BW | |
| Startup Overshoot Current | - | - | 10% | At 100% load | |
| Turn-on Delay Time | - | - | 1.0s | At 120~277Vac input and 100% load | |
| Line Regulation | -5% | - | +5% | At 25℃ ambient temperature, input voltage changesfrom 120Vac to 277Vac. | |
| Load Regulation | -5% | - | +5% | At 25℃ ambient temperature, Input Voltage 240Vac, load changes from 70% to 100%. | |
| 12V Auxiliary Output Voltage | 10.8V | 12V | 13.2V | AS Version | |
| 12V Auxiliary Output Current | - | - | 200mA | Return terminal is “Dim�“ | |
| Parameter | Min. | Typ. | Max. | Remark | |
|
0-10V Dimming |
Absolute Maximum Voltage | 0V | - | 12V | On Dim+ Pin |
| Source Current on Dim+ Pin | 90uA | 110uA | 120uA | ||
| Dimming Output Range | 10%Ioset | - | 100%Ioset | Ioset<0.46A, Dimming Min. is 0.046A | |
| Recommended Dimming Range for 0-10V | 0V | - | 10V | Dimming prohibits reverse connection | |
| Dim Off | 0.7V | 0.8V | 0.9V | With afterglow (standard) Without afterglow (optional) | |
| Dim On | 0.9V | 1.0V | 1.1V | ||
| PWM Dimming | PWM_in High Level | 9.8V | 10V | 10.2V | |
| PWM_in Low Level | 0V | - | 0.3V | ||
| PWM_in Frequency Range | 1KHz | - | 2KHz | ||
| PWM_in Duty Cycle | 0% | - | 100% | ||
| Resistor Dimming | Resistance | 0Kohm | - | 100Kohm | DIM+ source current 110uA. |
| Dimming Output Range | 10%Ioset | - | 100%Ioset | ||
|
Other Characteristics |
Operating TemperatureFor safety(Tc) | -40℃ | 25℃ | +90℃ | |
| Operating Temperature For warranty(Tc) | -40℃ | 25℃ | +85℃ | Case temperature for 5 years warranty Humidity: 10% RH to 95% RH; | |
| Storage Temperature(Ta) | -40℃ | 25℃ | +85℃ | ||
| Storage Humidity | 5%RH | - | 95%RH | ||
| Altitude | -65m | - | 4000m | ||
| Temperature Coefficient | -0.06%/℃ | - | +0.06%/℃ | Tc:0 ℃~90℃ | |
| Input under voltage protection | - | 75Vac | 90Vac | Self-recovery | |
| Over temperature protection | 90℃ | 95℃ | 100℃ | Drop current when OTP, and it can be self-recoveryafter the abnormality is removed. | |
| Short Circuit Protection | - | - | - | Self-recovery, short circuit without damage | |
| Lifetime(Tc≤90℃) | ≥50,000 hours | At 100% load，please refer to lifetime vs. casetemperature curve | |||
| MTBF | 200, 000 hours | At 220Vac,80% load,Ta=25 ℃ (MIL-HDBK-217F) | |||
| Warranty | 5 years | Tc ≤90℃ | |||
| Net Weight | 420g | ||||
| Dimension | 138mm*52.5mm*33.5mm | Lx W x H | |||
Note: All the parameters above are tested Ta 25℃ and LED load, unless specified.
Safety and EMI/EMS Standards
| Safety Certification | Standard | Status | Remark |
| UL/cUL | UL8750, CSA C22.2 No.250.13 | √ | |
| CB | IEC61347-1, IEC61347-2-13 | ||
| CE | EN 61347-1, EN 61347-2-13, EN62493 | ||
| ENEC | EN 61347-1, EN 61347-2-13, EN IEC 62384 | ||
| CCC | GB/T 19510.213, GB/T 19510.1 | ||
| SAA | AS/NZS 61347.1,AS/NZS61347.2.13 | ||
| BIS | lS15885:2012 Part 2 Sec 13 |
| EMC Category | Standard |
Status |
Remark |
| FCC | FCC Part15: Subpart A ANSI 63.4:2014 |
√ |
|
| CE | EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547 | ||
| CE | EN61000-4-2,3,4,5,6,11 | ||
| Surge | ANSI/C82 .77-5-2017 | Criterion B | |
| Ring Wave | ANSI/C82 .77-5-2017 | Criterion B |
Safety Test Items:
| Safety Test Items | Technical Indicators | Remark | |
| Insulation Requirements | UL Insulation Requirements | CE/ENEC Insulation Requirements | |
| Input-Case | 2U+1000Vac | / | Basic insulation |
| Input-Dim | 2U+1000Vac | / | Reinforced insulation |
| Dim-Case | 500Vac | / | Basic insulation |
| Insulation Resistance | ≥10MΩ | Input-Dim,Test voltage:500Vdc | |
| Ground Resistance | ≤0. 1Ω | 25A/1min | |
Note:
1. LED Driver itself complies with EMC standard. However, LED Driver ’s EMC should be re-checked when integrated into lighting systems due to unexpected interference of components.
2. Please short L and N, LED+ and LED-, Dim+ and Dim - and Vaux+ and Vaux- when Hi-pot test.
