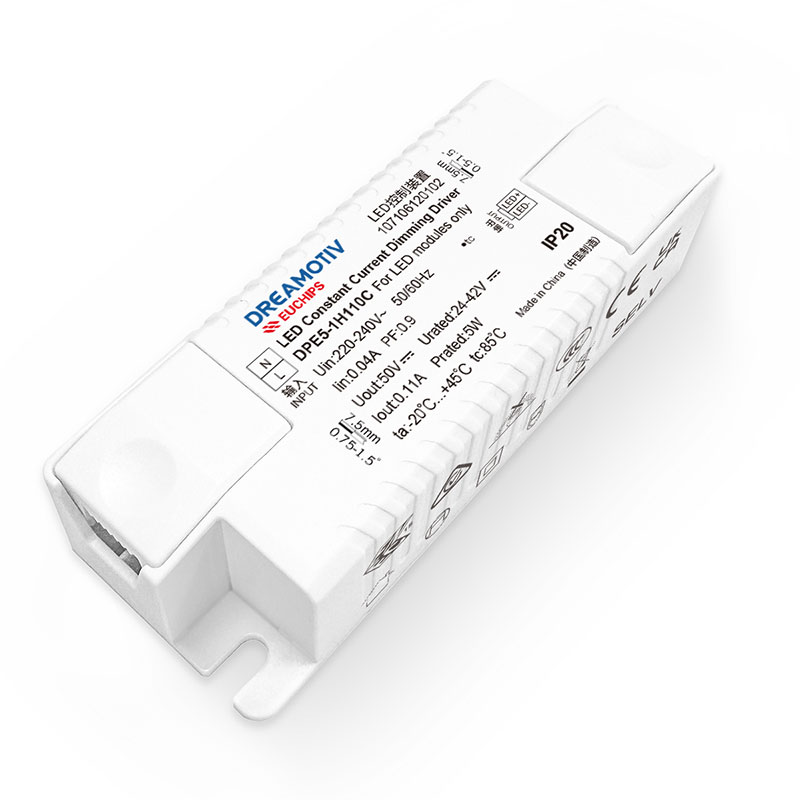

5W 110mA Non-dimmable CC Driver DPE5-1H110C

Short Description:

Item No.: DPE5-1H110C
Output Power: 5W

Send email to us Download Spec.

Download Certificates Download Test Reports

Product Detail

Product Tags

5W 110mA Non-dimmable CC Driver DPE5-1H110C

Features

· Single-channel constant current output
· Short circuit, overload, and overcurrent protection, V0 grade flame-retardant shell
· Efficiency up to 70%
· The design of the end cap shell allows for easy disassembly, facilitating installation in confined spaces
· No-load power consumption < 0.5W
· Lifespan: 30,000 hours, warranty: 5 years @ Tc=80°C
· Protection level IP20, suitable for indoor Class Ⅱlighting fixtures

Technical Parameters

Model	DPE5-1H110C
Input	Input Voltage	220VAC-240VAC
	Frequency Range(Hz)	50/60Hz
	Input Current	0.04A@230VAC, full load
	Power Factor	>0.9@230VAC, full load
	Efficiency	>70%@230VAC, full load
	THD	<25%@230VAC, full load
	Standby power	<0.5W
	No load power	<0.5W
	Inrush Current	Cold start, 7A@230VAC 35us
Output	Voltage	24-40V
	Current accuracy	±5%
	Current	110mA
	Power	5W
	Line Regulation	±5% @ full load
	Load Regulation	±5% @ full load
	PstLM	≤1
	SVM	≤0.4
	Turn on delay Time	<0.5s, @230Vac(When the light begins to shine)
Protection	Short circuit Protection	Hiccup, Auto-Recovery when the fault is removed
	OverVoltage Protection	Hiccup, Auto-Recovery when the fault is removed
	Overload Protection	Load power ≥ 120%: Protection against hiccups, self-recovery after fault removal
Safety& EMC	Surge	L-N:1KV
	Withstand Voltage	I/P-O/P: 3750VAC/1min/5mA
	Safety Specifications	CCC (China) GB19510.1，GB19510.14 TUV (Germany) EN61347-1，EN61347-2-13，EN62493
		CB (CBmember states) IEC61347-1，IEC61347-2-13 CE (European Union)EN61347-1，EN61347-2-13，EN62384
		RCM (Australia) AS 61347-1，AS 61347-2-13 ENEC (Europe) EN61347-1，EN61347-2-13，EN62384
	EMC Emission	CCC (China) GB/T17743，GB17625.1
		CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547
		RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547
	EMC Immunity	EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
Environment	Working Temp	-20℃~45℃
	Storage Temp	-20℃~85℃
	Storage Humidity	20-90%RH (No condensation)
Others	tc	85℃ for safety & life
	Material	PC
	IP Rating	IP20
	Lifetime	30,000h@tc:85℃
	Warranty Condition	5 years @ Tc=80°C
	Switch Cycle	25,000times
	Body size	95.83624mm(LWH)
	Packing(weight)	Net weight: 53g±5%/PCS; 120PCS/Carton; 6.36kg±5%/Carton; Carton Size: 367292137mm(LWH)
	Noise	In a quiet environment，No noise outside 30-50cm
Remark	All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions.
