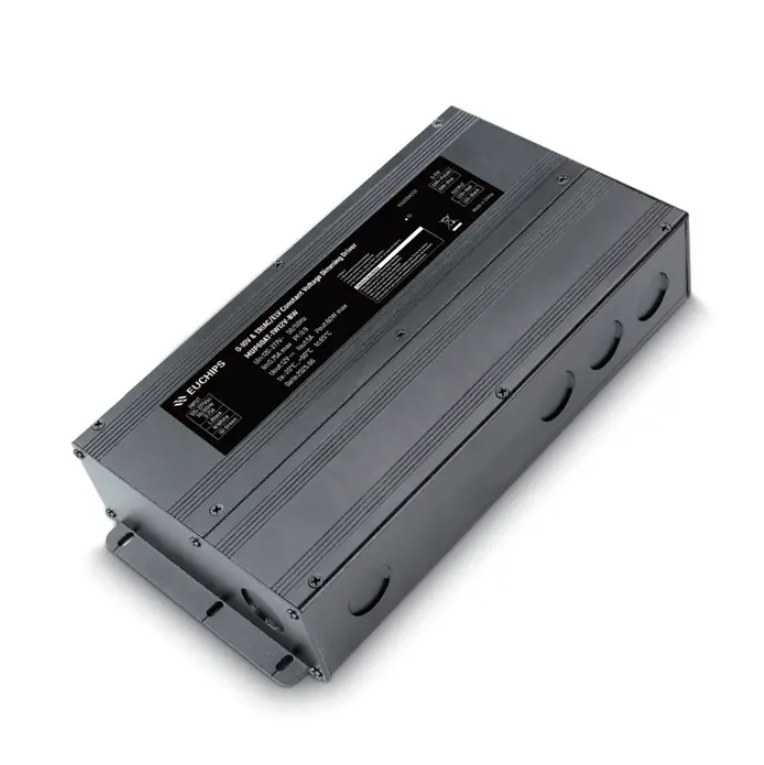

60W 12VDC Triac&0/1-10V CV Driver MUP60AT-1W12V-BW
60W 12VDC Triac&0/1-10V CV Driver MUP60AT-1W12V-BW
Features
· Single channel constant voltage output, Output Current 5A Max
· Input Voltage Range 108-305Vac
· Support 0/1-10V ,Potentiometer,PWM,Triac/ELV Dimming
· TRIAC and ELV dimming at 120 Vac only
· 0-10V Dimming range of 0.1-100%, and dimming effect smooth, flicker free
· 100% output when no dimming signal input, can be used as normal power supply
· Protection: Overload; short circuit; Overcurrent
· Class 2 Output
· Safety according to UL8750 &UL 1310
· Suitable for Dry , Damp & Wet Locations
Technical Parameters
| Model | MUP60AT-1W12V-BW | |
| Input | Efficiency | ≥84%@120VAC, ≥86%@277VAC, full load |
| Voltage | 120VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| AC Current(max) | 0.75Amax@120VAC 0.35Amax@230VAC 0.30Amax@277VAC | |
| PF | ≥0.95@120VAC, ≥0.9@277VAC，full load | |
| THD | <10%@120VAC, <20%@277VAC, full load | |
| Inrush Current(max) | Cold start,48A@120VAC 150us, 18A@120VAC 440us | |
| Standby power | <4W@120VAC | |
| No load power | <4W@120VAC | |
| Turn on delay Time | <0.75s, @120Vac (When the light begins to shine) | |
| Output | Current | 5A |
| Voltage | 12VDC | |
| Voltage Range | 12VDC ±5% | |
| Power | 60W | |
| Channel | 1 | |
| PWM Frequency | 20K Hz | |
| Function | Dimming Type | 0/1-10V ,Potentiometer,PWM,Triac/ELV(@120VAC 60Hz) |
| Dimming Range | 0.1%-100%(0-10V), 1%-100%(TRIAC/ELV) | |
| Dimming curve | Logarithm (for 0-10V & Tiac/ELV) | |
| Flicker | Flicker free | |
| Protection | Short Circuit | Shut down output, Auto-recovery after Fault Clearance |
| Overload | Hiccup Protection, Auto-recovery after Fault Clearance | |
| Overcurrent | Current drops, Auto-recovery after Fault Clearance | |
| Safety&EMC | Surge | L-N: 2.5kV L-N-PG: 2.5kV |
| Withstand Voltage | I/P-O/P: 3750Vac/1min/5mA I/P-PG:1500Vac/1min/<5mA O/P-PG:500Vac/1min/<5mA Signal-O/P: 1500VAC/1min/5mA | |
| Safety standards | UL8750 UL1310 | |
| EMC Emission | FCC PART15B | |
| EMC Immunity | IEC 61000-4-2-3-4-5-6-8-11 | |
| Insulation Resistance | 5MΩ | |
| Others | Working Temp. | (-20~+50) ? [-4°F~122°F] |
| Storage Temp., Humidity | (-40~+90)? [-40°F~194°F] | |
| tc | 85? [ 185°F ] | |
| Material | Metal | |
| IP Rating | IP65 | |
| Lifetime | 50,000h@tc:85? [ 185°F ] | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: TBDg (– lb)±5%/PCS; 12PCS/Carton;–kg(– lb)±5%/Carton; Carton Size: 314*263*249mm(12.36*10.35*9.8 Inch)(L*W*H) | |
| Dimension | 244*106*41.5mm (9.61*4.17*1.63 Inch)(L*W*H) | |
