12-15VDC 50mA*2ch 0-10V Touch Panel Controller Walldim202

Short Description:

  • Item No.: Walldim202
  • Input Voltage: 12-15
  • Output Current: 50mA*2CH
  • Output Voltage: 0-10
  • Output Power: 1
  • Dim Mode: 0-10V
  • G.W.: 130
  • Size: 86*86*26

Product Detail

Product Tags

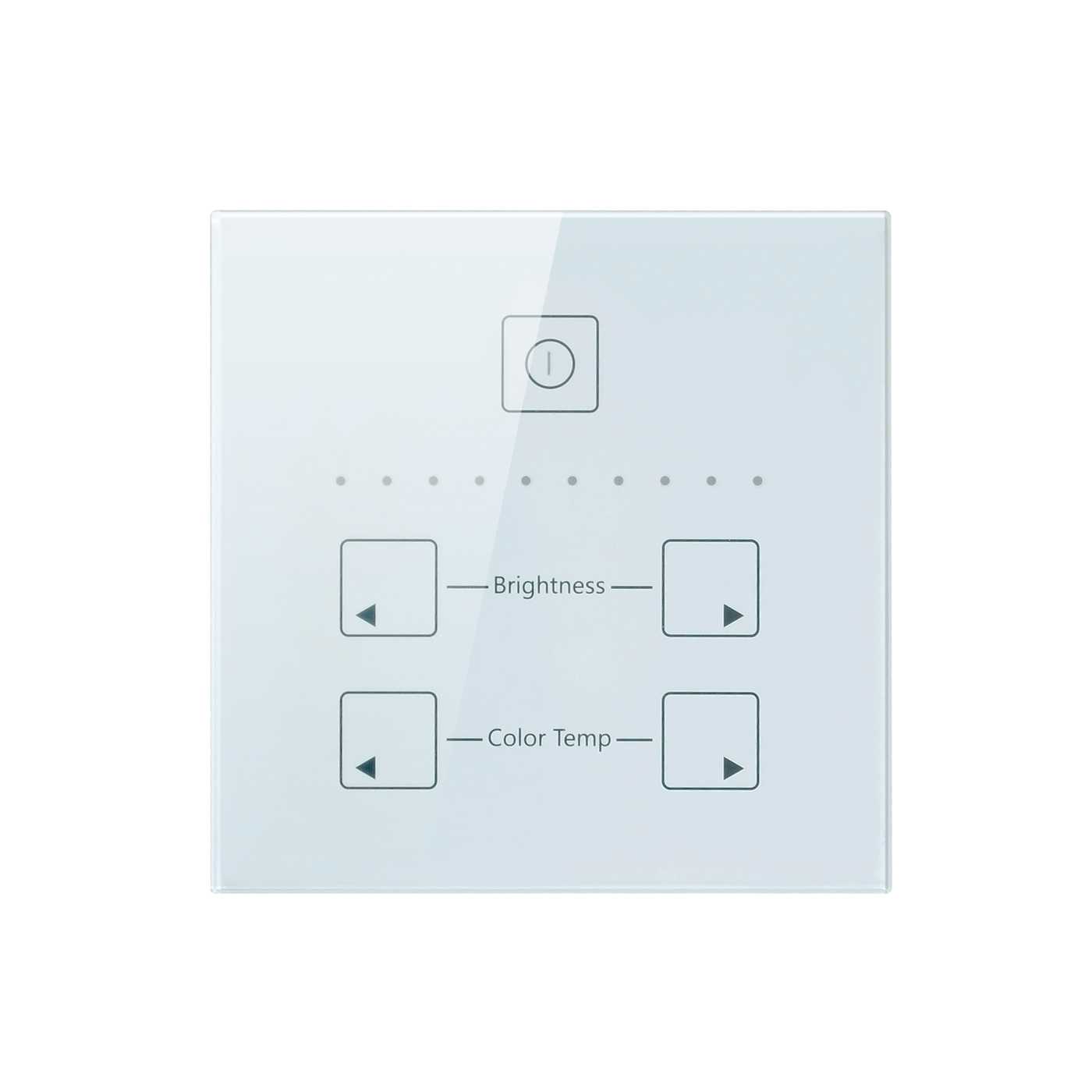

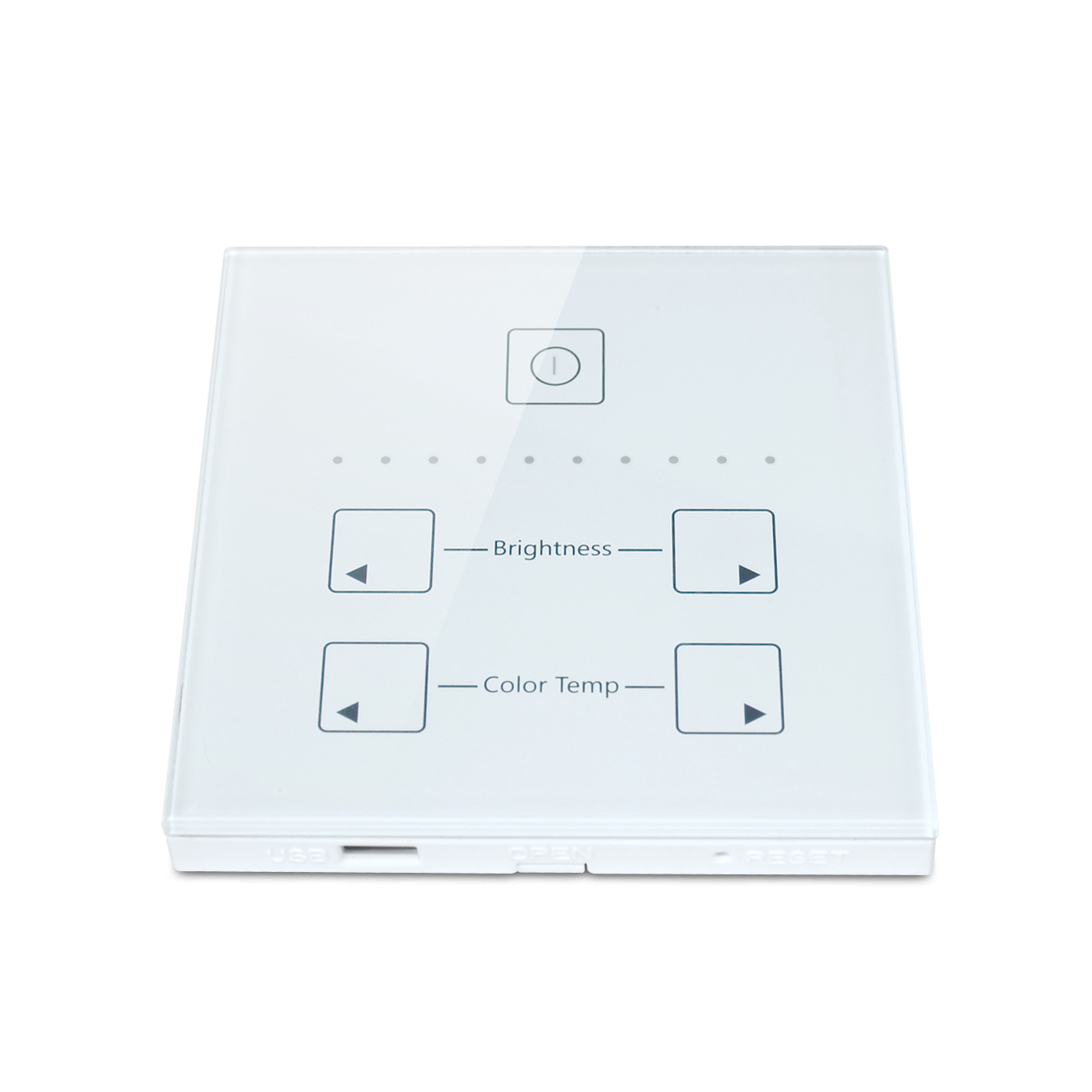

12-15VDC 0-10V Multi-function Touch Panel Controller Walldim202



Walldim202 is one of our high-end, multi-function Walldim touch panel controller series, with characteristic of fashionable and beautiful appearance, complete functions, easy operations, sensitive key touch, 0-10V signal controller and various forms. It is mainly used to connect LED 0-10V DIM controller. It can realize 0-10V smooth dimming according to different requirements.

Feature

1. Supply voltage of 12-15VDC

2. Output 2 channels 0-10V analog dimming signal

3. Can adjust brightness and color temperature of lamps

4. Show the current brightness or color grades

5. can be installed in compliance with DIN 49073 and 86 standard wall box

6. Fashion, and easy to use

Technical Parameter



Product Name 12-15VDC 0-10V Multi-function Touch Panel Controller
Model Walldim202
Output Voltage 0-10VDC
Current 50mA*2ch
Channels 2
Input Voltage 12V-15VDC
Standby power <1W
Others Dimension 86*86*26 mm(L*W*H)
Packing size 145*145*48mm(L*W*H)
N.W. 105g
G.W. 140g
Working temp. -10℃ ~ 40℃
Relative humidity 0~90% RH
