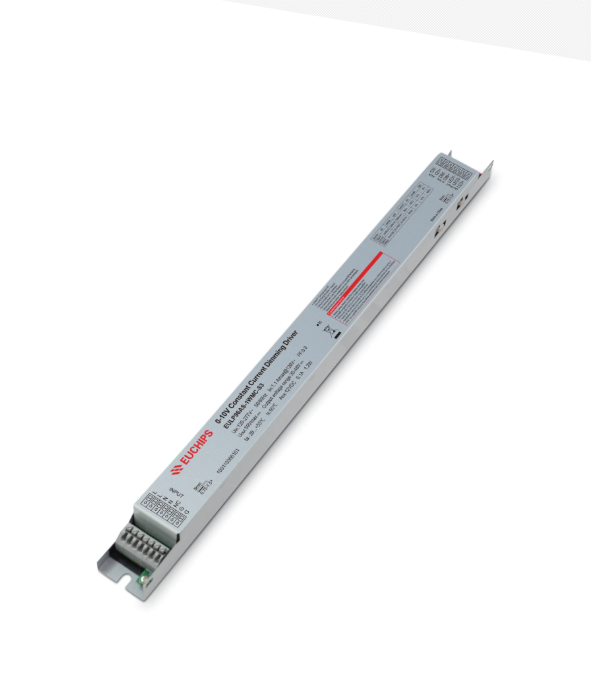

96W 0-10V CC Driver EULP96AS-1WMC-S3
Features
• Supports tri-mode dimming (0-10V active signal, adjustable resistor, PWM signal)
• Single-channel constant current output with multiple selectable current levels
• Wide input voltage range: 120VAC ~ 277VAC
• Full load output when the signal is floating, allowing it to function as a power supply
• Short-circuit protection, overload protection, over-voltage protection
• Smooth dimming, flicker-free
• The output current ratio is adjustable in 3 levels, enabling the adjustment of the luminaire’s color temperature.
• 50,000-hour lifespan @ Tc=90℃, 5-year warranty
• Safety according to UL8750 &UL 1310
Technical Parameter
Model |
EULP96AS-1WMC-S3 |
Input |
Efficiency |
≥87%, full load |
Rated Voltage |
120-277VAC |
Frequency Range(Hz) |
50/60Hz |
Current |
1.1A@120VAC 0.44A@277VAC |
Power Factor |
≥0.95@120VAC, ≥0.95@277VAC, full load |
THD(full load) |
≤10%@120VAC, ≤15%@277VAC , full load |
Inrush Current |
Cold start, 15A@120VAC 100us, 36A@277VAC 100us |
Output |
Switch |
left |
middle |
right |
Output Current |
2400mA |
2200mA |
2000mA |
Voltage Range |
30-40VDC |
30-43VDC |
30-48VDC |
Output Power |
96W |
95W |
96W |
Factory default current |
2000mA |
Current |
1 |
Current Tolerance |
±5% |
Ripple factor |
<3% |
Standby power |
1.5W |
No load power |
1.5W |
No load output voltage |
59VDC max |
Auxiliary power supply |
12VDC, 100mA, 1.2W |
Start-up Time |
≤0.75s, @120Vac (When the light begins to shine) |
Function |
Dimming Type |
0-10V |
Dimming Range |
1%-100% |
Dimming curve |
Linearity |
Flicker |
Flicker free |
Protection |
Short circuit |
No-output, Auto-Recover when fault removed |
Overload |
Current reduction hiccup protection with automatic recovery after fault clearance. |
Overvoltage |
Current reduction hiccup protection with automatic recovery after fault clearance. |
Safety& EMC |
Surge |
L-N: 2.5kV L-N-PG: 2.5kV (ringwave) |
Withstand Voltage |
I/P-O/P:2000Vac/1min/<5mA I/P-PG:1500Vac/1min/<5mA 0/P-PG:500Vac/1min/<5mA 0/P-Signal:500Vac/1min/<5mA |
Safety Standards |
UL8750 &UL 1310 |
EMI |
FCC Part 15 Class B @120v FCC Part 15 Class A @277v |
Others |
Working Temp. |
-20℃~55℃(-4-131℉) |
Storage Temp., Humidity |
-40℃~80℃(-40-176℉), 5%-90%RH |
tc |
90℃(194℉) |
Material |
Metal |
IP Rating |
IP20 |
Lifetime |
50,000h@tc90℃(194℉) |
Warranty Condition |
5years |
Switch Cycle |
>25,000 times |
Dimension |
380×30×25.5mm (14.96×1.18×1 Inch) (L*W*H) |
Packing(weight) |
TBD |
|
