60W 24VDC 0/1-10V CV Driver MUP60A-1W24V
60W 24VDC 0/1-10V CC Driver MUP60A-1W24V

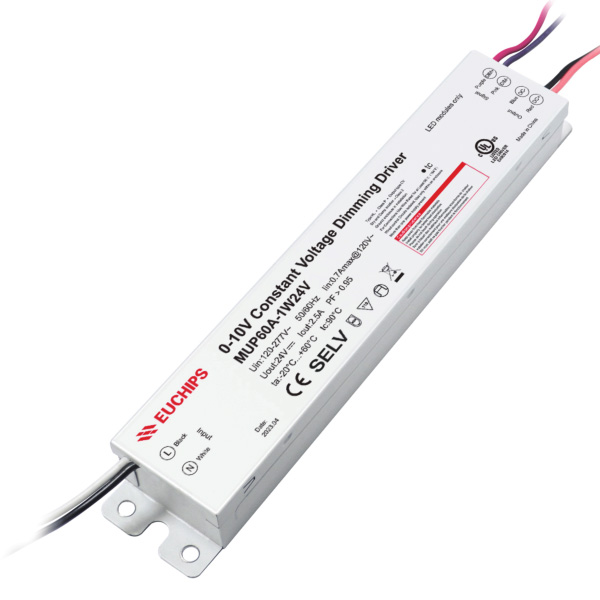

MUP60A-1W24V is a constant voltage mode output LED driver. This driver can be controlled by external signal (0/1-10V active signal, adjustable resistance and PWM signal) to achieve a smooth dimming effect.
Features
·Single channel constant voltage output,2.5A Max
·Support 3-in-1 dimming mode( 0/1-10V active signal, adjustable resistance and PWM signal)
·High input voltage of 120VAC~277VAC
·Dimming range of 1-100%, and dimming effect smooth, no flicker
·100% output when no dimming signal input, can be used as normal power supply
·Over load protection; over voltage protection; short circuit protection; Over temperature
·IP20, suitable for indoor LED lighting application
Technical Parameters
|
Model |
MUP60A-1W24V | |
|
Input |
Efficiency | 88%@120VAC, Full load |
| Voltage | 120VAC-277VAC | |
| Frequency | 50/60Hz | |
| Power Factor | >0.99@120VAC, Full load | |
| Current | 0.7Amax@120VAC, Full load | |
| Inrush Current | Cold start, 45A@120VAC | |
| Standby power | < 2.5W | |
|
Output |
Channel | 1 |
| Voltage | 24VDC | |
| Current | 2.5A | |
| Power | 60W | |
| Frequency | 1kHz PWM | |
| R & N (Max) | <600mV Vp-p | |
| Turn On Delay Time | <0.5s from power on to Iout>0 @120Vac | |
|
Function |
Dimming type | 0/1-10V active signal, adjustable resistance and PWM signal |
| Dimming range | 1%-100% | |
| Protection | Over Voltage | Hiccup, recovers after fault condition is removed |
| Over load | Hiccup, recovers after fault condition is removed | |
| Short circuit | Hiccup, recovers after fault condition is removed | |
| Over temperature | Shut down and auto-restart after normal temperature | |
|
Safety & EMC |
Surge | L-N:2.5KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA I/P-Gnd: 1500VAC/1min/5mA O/P-Gnd: 500VAC/1min/5mA | |
| Safety standards | UL8750/UL1310/CSA25013,CSA class P | |
| EMI Eission | EN55015,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | FCC class B(120V)/class A(277V) | |
|
Others |
Working Temp. | -20℃~60℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:70℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 700g±5%/PCS; 20PCS/Carton; 14.5kg±5%/Carton; Carton Size: 300*268*168mm(L*W*H) | |
| Dimension | 243*40*30mm(L*W*H) | |
