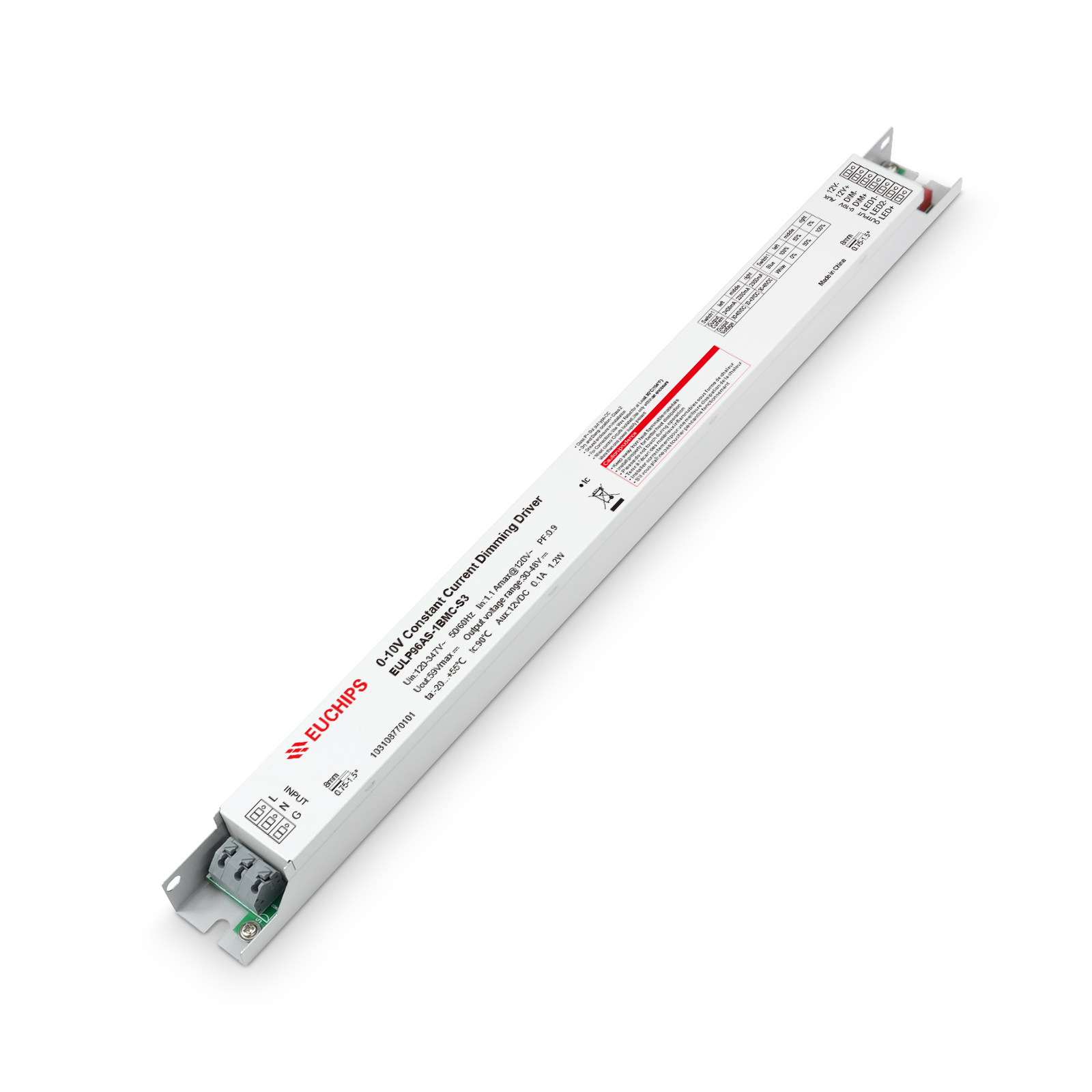

96W 0-10V CC Driver EULP96AS-1BMC-S3
96W 0-10V CC Driver EULP96AS-1BMC-S3
Features
• Supports tri-mode dimming (0/1-10V active signal, adjustable resistor, PWM signal)
• Single-channel constant current output with multiple selectable current levels
• Wide input voltage range: 120VAC ~ 347VAC
• Full load output when the signal is floating, allowing it to function as a power supply
• Short-circuit protection, overload protection, over-voltage protection
• Smooth dimming, flicker-free
• The output current ratio is adjustable in 3 levels, enabling the adjustment of the luminaire’s color temperature.
• 50,000-hour lifespan @ Tc=85℃, 5-year warranty
• Safety according to UL8750 &UL 1310
Technical Parameters
| Model | EULP96AS-1BMC-S3 | |||
| Input | Efficiency | ≥87%, full load | ||
| Rated Voltage | 120-347VAC | |||
| Frequency Range(Hz) | 50/60Hz | |||
| Current | 1.1A@120VAC 0.44A@277VAC 0.36A@347VAC | |||
| Power Factor | ≥0.95@120VAC, ≥0.95@277VAC, ≥0.9@347VAC , full load | |||
| THD(full load) | ≤10%@120VAC, ≤15%@347VAC , full load | |||
| Inrush Current | Cold start, 15A@120VAC 100us, 36A@277VAC 100us, 47A@347VAC 100us | |||
| Output | Switch | left | middle | right |
| Output Current | 2400mA | 2200mA | 2000mA | |
| Voltage Range | 30-40VDC | 30-43VDC | 30-48VDC | |
| Output Power | 96W | 95W | 96W | |
| Factory default current | 2000mA | |||
| Current | 1 | |||
| Current Tolerance | ±5% | |||
| Ripple factor | <3% | |||
| Standby power | 1.5W | |||
| No load power | 1.5W | |||
| No load output voltage | 59VDC max | |||
| Auxiliary power supply | 12VDC, 100mA, 1.2W | |||
| Start-up Time | ≤0.75s, @120Vac (When the light begins to shine) | |||
| Function | Dimming Type | 0-10V | ||
| Dimming Range | 1%-100% | |||
| Dimming curve | Linearity | |||
| Flicker | Flicker free | |||
| Protection | Short circuit | No-output, Auto-Recover when fault removed | ||
| Overload | Current reduction hiccup protection with automatic recovery after fault clearance. | |||
| Overvoltage | Current reduction hiccup protection with automatic recovery after fault clearance. | |||
| Safety& EMC | Surge | L-N: 2.5kV L-N-PG: 2.5kV (ringwave) | ||
| Withstand Voltage | I/P-O/P:2000Vac/1min/<5mA I/P-PG:1500Vac/1min/<5mA 0/P-PG:500Vac/1min/<5mA 0/P-Signal:500Vac/1min/<5mA | |||
| Safety Standards | UL8750 &UL 1310 | |||
| EMI | FCC Part 15 Class B @120v FCC Part 15 Class A @277v | |||
| Others | Working Temp. | -20℃~55℃(-4-131℉) | ||
| Storage Temp., Humidity | -40℃~80℃(-40-176℉), 5%-90%RH | |||
| tc | 90℃(194℉) | |||
| Material | Metal | |||
| IP Rating | IP20 | |||
| Lifetime | 50,000h@tc90℃(194℉) | |||
| Warranty Condition | 5years | |||
| Switch Cycle | >25,000 times | |||
| Dimension | 380×30×25.5mm (14.96×1.18×1 Inch) (L*W*H) | |||
| Packing(weight) | TBD | |||
