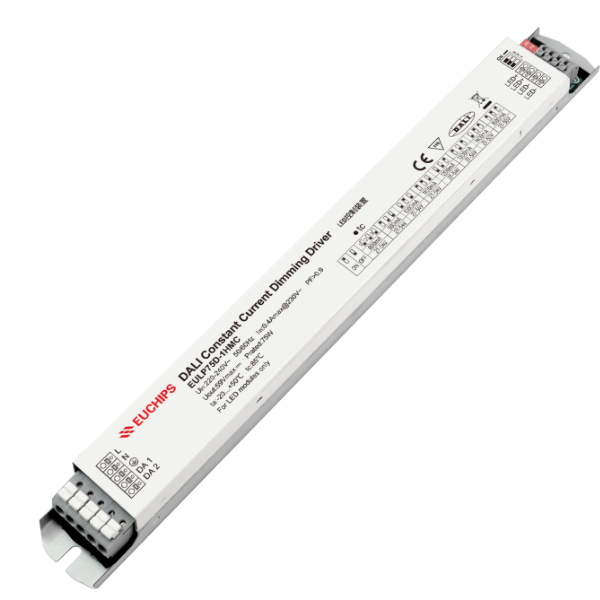

75W 800~1500mA*1ch DALI CC Driver EULP75D-1HMC
75W 800~1500mA*1ch DALI CC Driver EULP75D-1HMC
EULP75D-1HMC is a 75W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch and complies with DALI standard protocol IEC 62386 ，can be connected to DALI main controller or Touch DIM to achieve a smooth dimming effect.
Fearures
· Single channel output, output current level selectable by DIP S.W.
· Support DALI software to adjust output current
· Meet DALI protocol IEC 62386
· Support Touch DIM function
· High efficiency up to ≥89%
· Built-in active PFC function
· Logarithmic dimming，dimming effect smooth, no flicker
· Protections: Short circuit, Over load, Over voltage
· Suitable for indoor LED lighting application, vapor light, and so on
Technical Parameters
| Model | EULP75D-1HMC | |
|
Input |
Efficiency | ≥89%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | >0.9@230VAC,Full load | |
| THD(full load) | ≤10%@230VAC, Full load | |
| AC Current(max) | 0.4Amax@230VAC | |
| No load power | <0.5W | |
| Standby power | <0.5W | |
| Turn on delay Time | <0.75s, at230Vac (When the light begins to shine) | |
|
Output |
Current(mA)/Voltage (VDC) Power(W) | 800mA/27-54V/43.2W 900mA/27-54V/48.6W 1000mA/27-54V/54W 1100mA/27-54V/59.4W1200mA/27-54V/64.8W 1300mA/27-54V/70W 1400mA/27-50V/70W 1500mA/27-50V/75W |
| Channel | 1 | |
| Current Tolerance | ±5% (150mA ±7%, 200mA ±7%) | |
| No load output voltage | 59Vmax | |
| Function | Dimming Type | DALI, Touch DIM |
| Dimming Range | 0.1%-100% | |
| Protection | Short circuit | Short circuit No output, troubleshooting output normal |
| Over load | Reduce current burp protection, troubleshoot normal output | |
| Over Voltage | Current down, troubleshooting output normal | |
|
Safety& EMC |
Surge | L-N:1kV |
| Withstand Voltage | I/P-O/P: 3750Vac/1min/5mA Signal-O/P: 1500VAC/1min/5mA | |
| Safety Standards | GB 19510.1-2009,EN61347 | |
| EMC Eission | GB/T 17743-2021,EN55015 | |
| EMC Immunity | EN61000-3-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Insulation Resisance | 5MΩ | |
|
Others |
Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃ 20-90%RH | |
| tc | 85℃ | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:50℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing(weight) | Net weight: 232g±5%/PCS; 50PCS/Carton; 12.1kg±5%/Carton; Carton Size:498*334*130mm(L*W*H) | |
| Dimension | 280*30*21mm（L*W*H） | |
