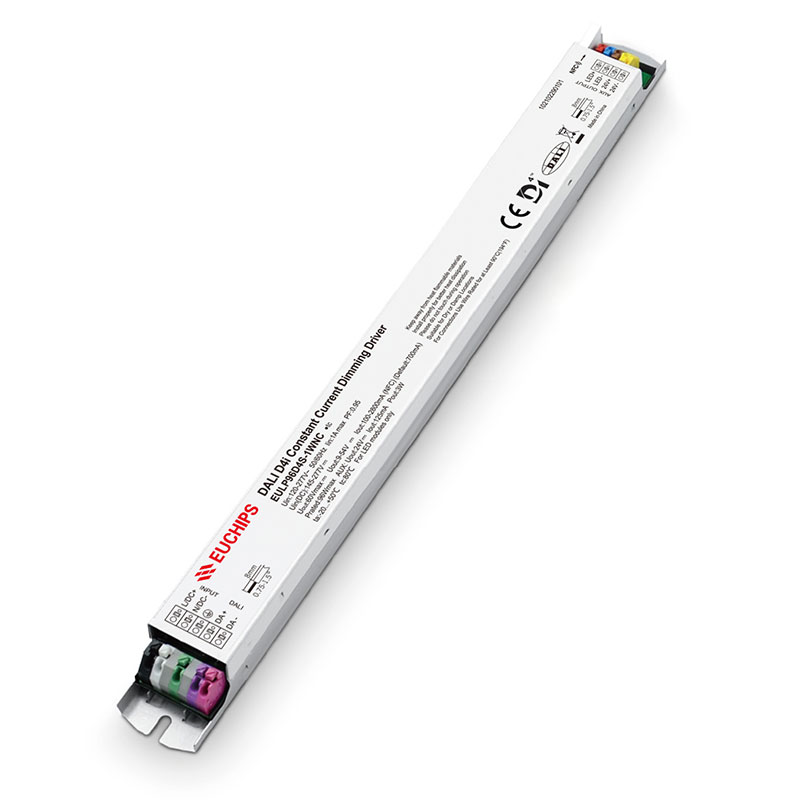

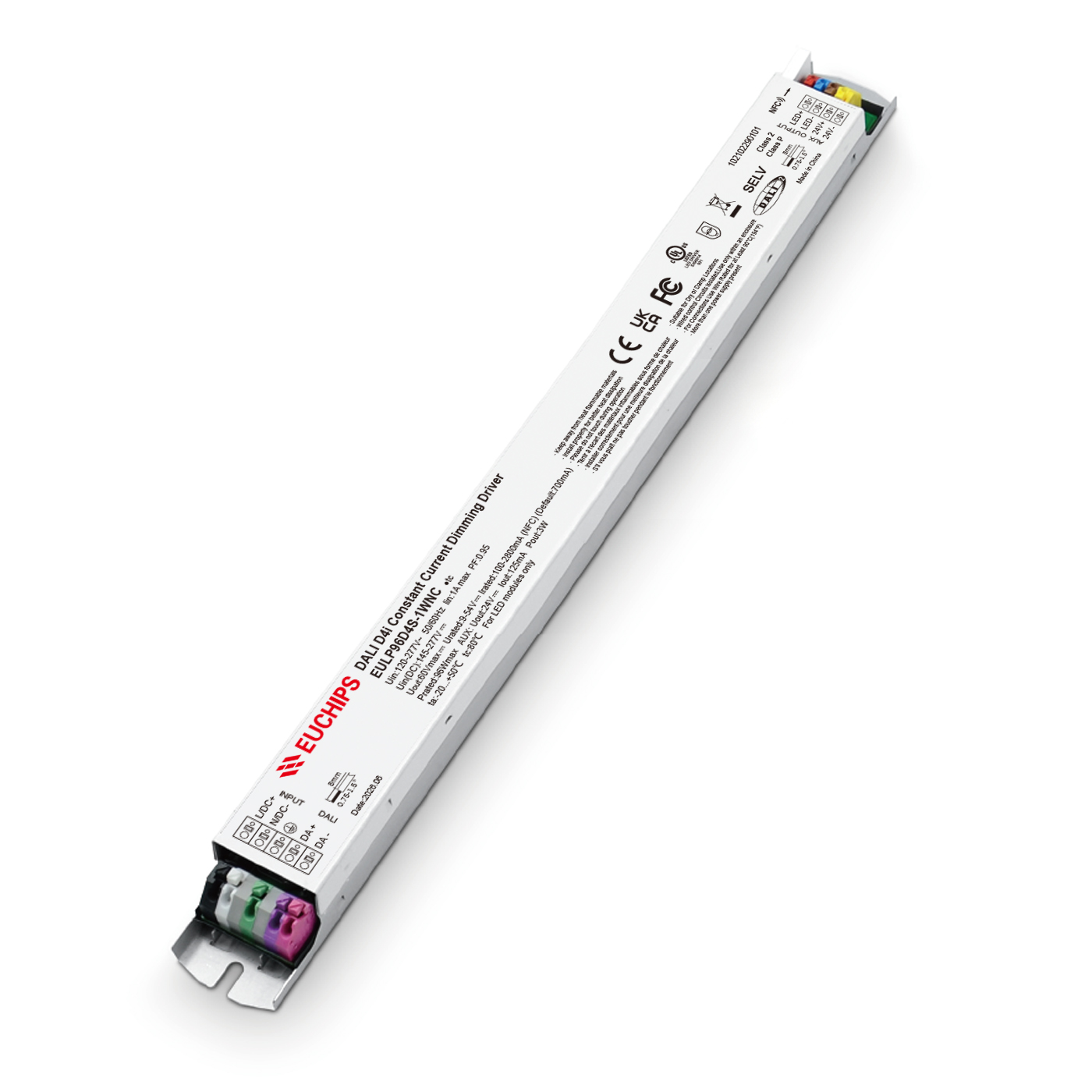

96W 100~2800mA*1ch D4i CC Driver EULP96D4S-1WNC
96W 100~2800mA*1ch D4i CC Driver EULP96D4S-1WNC
Advantages
• Enable interoperability with diverse wireless sensors/network systems
• Reduce complexity and cost of fixture by eliminating auxiliary components ordinarily re quired for powering sensors, switching fixture off and monitoring energy use
• interface to any suitable sensor and ease of adjustable drive current
Features
• Standard-compliant (DiiA) digital interface including:
- Integrated DALI bus power supply (Part 250)
- Memory Bank 1 extension, Energy Monitoring and Diagnostics (Parts 251, 252, 253)
• Energy metering and advanced diagnostics
• Continuous dimming down to 1%
• Drive current setting via NFC wireless programming
• 5-year limited warranty
Programming
Adjustable Light Output (ALO)
Adjustable Output Current (AOC)
Luminaire Maintenance
Luminaire Information
Technical Parameters
| Model | EULP96D4S-1WNC | |
| Input | Rated Voltage | 120~277 VAC/145~277VDC |
| Frequency Range(Hz) | 50/60Hz | |
| Efficiency | ≥88%@120VAC , ≥90%@230VAC, ≥90%277VAC full load Auxiliary power supply unloaded | |
| Power Factor | ≥0.95@ full load | |
| current | 1Amax@120VAC, 0.5Amax@230VAC, 0.5Amax@270VAC | |
| THD | <10%@120-277VAC, full load | |
| Inrush Current(max) | Cold start,30A@120VAC 170us; 58A@230VAC 170us; 65A@277VAC 170us | |
| Standby power | ≤1W | |
| No load powe | ≤1W | |
| Turn on delay Time | <0.75s, @120Vac(When the light begins to shine) | |
| Output | channel | 1 |
| Voltage | 9-54V | |
| Current | 100-2800mA(NFC Set Current) (Default current:700mA) | |
| Output Voitage | 9-54V | |
| Power | 96W | |
| Current Accuracy | ±5%；700-500mA current accuracy ±7%； ＜500mA current accuracy ±10% | |
| Ripple current | 5% | |
| No load output voltage | 60V max | |
| Aux Output | Output Voltage | 24V±5% |
| Output Power | 3W | |
| Output Current | 125mA | |
| No load output voltage | 25V MAX | |
| Ripple Voltage | ≤1V | |
| Function | Dimming type | DALI 2.0 D4i (EN62386-250, 251, 252, 253, 150) |
| Dimming range | 1%-100% (Io≥400mA) | |
| Dimming curve | Logarithmic or Linear (NFC default logarithmic setting) | |
| Flicker | Flicker free | |
| Protection | Short circuit | Short circuit without output, troubleshooting results in normal output |
| Over load | Reduce current hiccup protection, troubleshoot and output normally | |
| Over Voltage | Reduce current hiccup protection, troubleshoot and output normally | |
| Safety& EMC | Surge | L-N 1000VAC L-N-PG: 2000VAC |
| Withstand Voltage | I/P-O/P:3000Vac/1min/<5mA, I/P-PG:1500Vac/1min/<5mA, O/P-PG:500Vac/1min/<5mA, O/P-DALI/AUX:1500Vac/1min/<5mA | |
| Safety standards | UL8750,EN61347-1,EN61347-2-13 | |
| EMC Eission | EN55015,FCC class B(120V)/class A(277V) | |
| Insulation Resisance | 5Mfi | |
| Others | Working Temp. | -20℃~+50℃ (-4°F~122°F) |
| Storage Temp., Humidity | -40℃~85℃, 20%-90%RH (-40°F~185°F) | |
| tc | 80℃(176°F) | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃ (176°F) | |
| Warranty Condition | 5years | |
| Switch Cycle | >25,000 times | |
| Dimension | 360*30*21mm (14.17*1.18*0.827 Inch) (L*W*H) | |
| Packing(weight) | Net weight:350g(0.771 Ib)±5%/PCS; 50PCS/Carton; 17.5kg(38.58 Ib)±5%/Carton; Carton Size: 377*333*141mm (14.84*13.11*5.55 Inch)(L*W*H) | |
