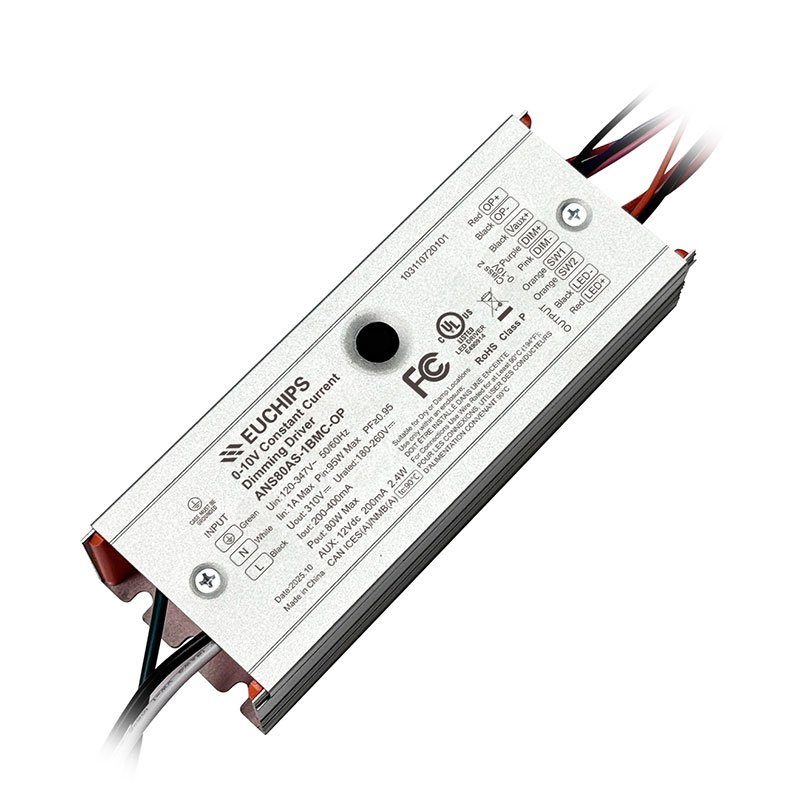

80W 200~400mA*1ch 0/1-10V CC Driver ANS80AS-1BMC-OP
80W 200~400mA*1ch 0/1-10V CC Driver ANS80AS-1BMC-OP
Features
- Input voltage range:108-380Vac
- Supports isolated dimming (0-10V active signal, PWM signal, resistor)
- Adjustable Output Current (AOC) with Potentiometer
- High Efficiency up to 96.0%
- Auxiliary Power: 12VDC, 200mA(AS Version)
- Support for external DIP switches to adjust power
- Support for external light control switch
- Protection:UVP,SCP,OVP, OTP
- Input surge protection: Differential mode: 6kV, Common mode:6kV(ANSI/C82 .77-5-2017)
- 5-year warranty
- Safety according to UL8750
Models
| Model Number | Input Voltage Range |
Max.0utput Power |
0utput Voltage Range |
0utput Current Range |
Default Current |
Effciency [Typ.] |
PF [Typ.] |
THD [TyP.] |
| ANS80AS-1B* | 108-380Vac | 80W | 180-260Vdc | 020-0.40A | 0.37A | 96.0% | 0.98 | 7% |
Note:
[1]. All specifications are measured at 25′c ambient temperature, input voltage 27ac, and the typical value tested by full load
[2].AS means 0-10v/pWM/res dimming and 12v auxiliary source.
*Means Additional Function
| Models | 0-10V/PWM/Res dimming | Auxiliary12V/200mA | DlP switch | Light control switch |
| ANS80AS-1B | √ | √ | ||
| ANS8OAS-1BMC | √ | √ | √ | |
| ANS80AS-1B-0P | √ | √ | √ | |
| ANS80AS-1BMC-0P | √ | √ | √ | √ |

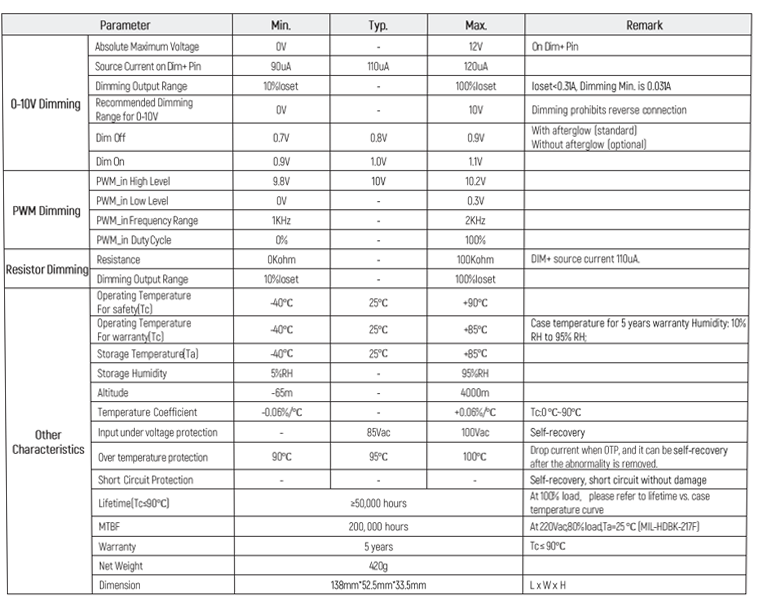

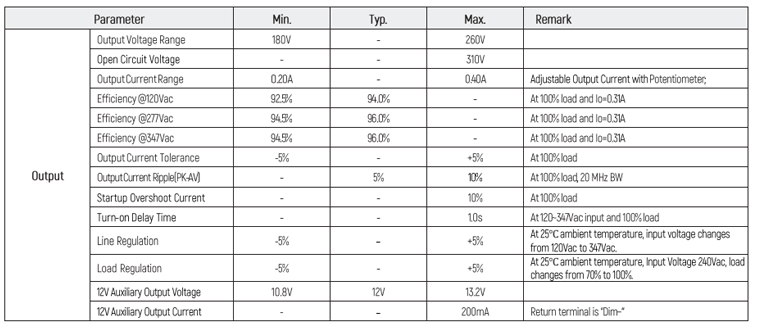

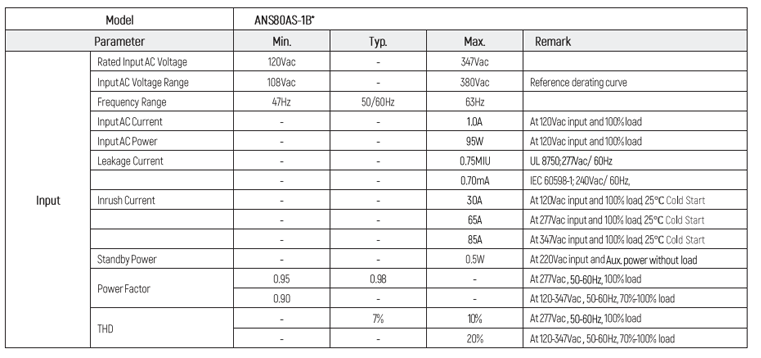

Technical Parameters
Note: All the parameters above are tested Ta 25℃ and LED load, unless specified.
