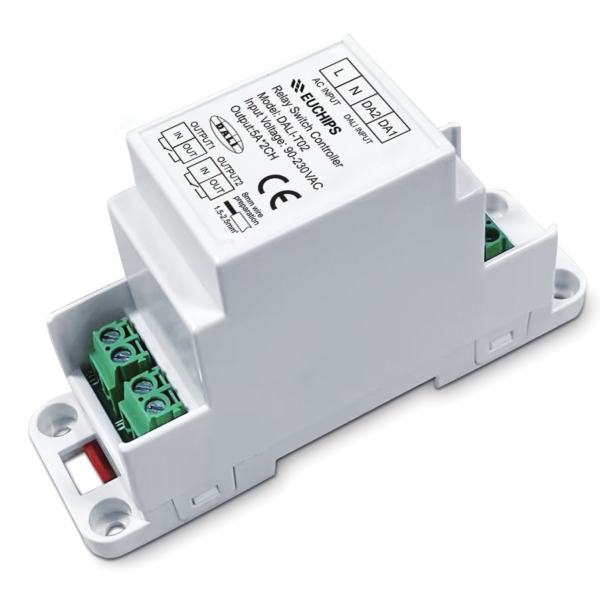

90-240VAC 5A*2ch DALI Relay DALI-T02

Short Description:

Item No.: DALI-T02
Input Voltage: 90-240VAC

Product Detail

Product Tags

90-240VAC 5A*2ch DALI Relay DALI-T02

Features

· Follow DALI IEC62386 standard protocol
· Maximum support 5A*2 channel current
· Wide voltage supply
· Connected to DALI Bus, occupies 2 address, the address can be changed
· Support grouping, scene editing,
· Support two mounting modes: guide rail and screw fixation

Technical Parameters

Model	DALI-T02
The input voltage	90-240 v AC
Input frequency	50/60Hz
Maximum switching current	5A*2CH
Communication protocol	Standard DALI Agreement
The equipment size	1113567mm (L * W * H)
Packing size	353234232mm (l * W * H)
Gross weight	99g
Working temperature	- 20 ℃, 50 ℃
Relative humidity	20-90%RH
