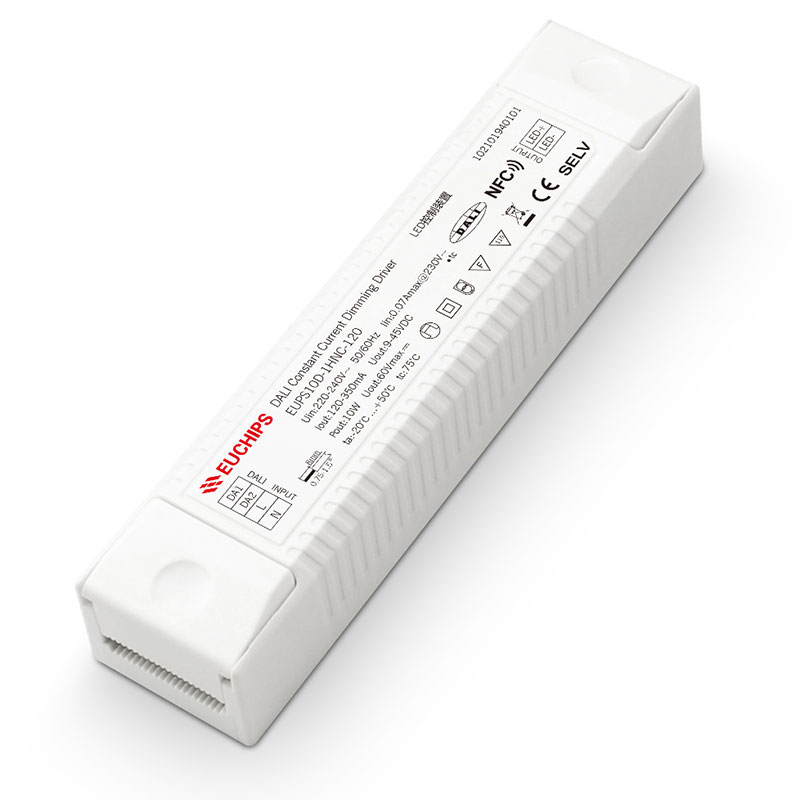

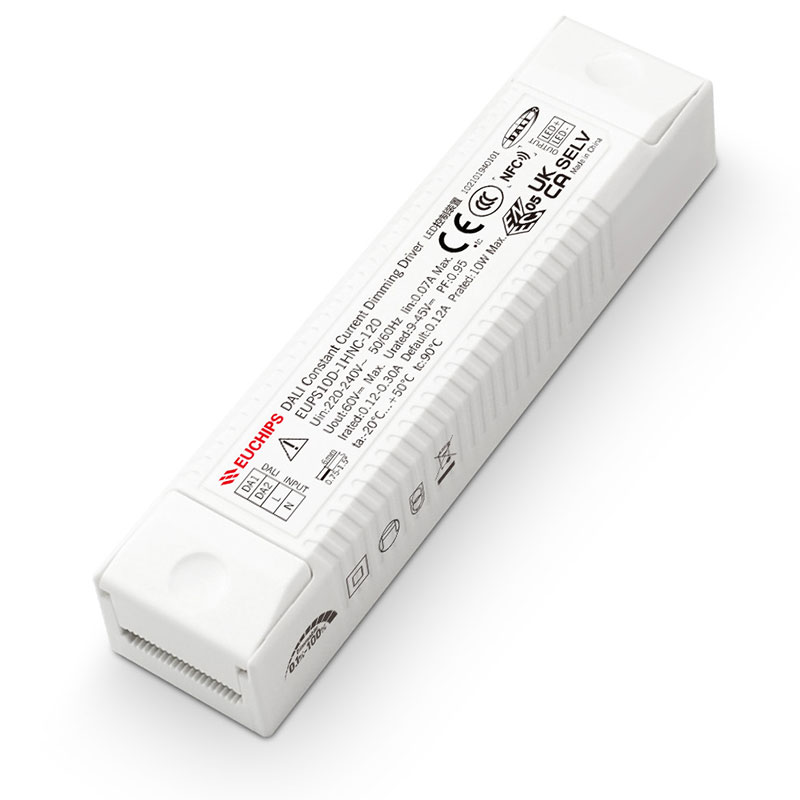

10W 120~350mA*1ch NFC DALI CC Driver EUPS10D-1HNC-120
10W 120~350mA*1ch NFC DALI CC Driver EUPS10D-1HNC-120
Features
· Single channel output, output current can be selected through NFC regulation
· Comply with DALI protocol standard IEC62386-209
· Efficiency up to 81%
· High voltage input: 220VAC ~ 240VAC
· Protection level IP20, suitable for indoor ⅠⅡⅢ lamps
· Dimming range 0.1%-100% dimming, smooth dimming without step sense and stroboscopic
· Built-in PFC chip to improve energy efficiency and reduce pollution
· Short circuit, overvoltage, overload, V0 class flame retardant housing
· Suitable for LED indoor lamps, such as downlights, panel lights, etc
Technical Parameters
| Model | EUPS10D-1HNC-120 | |
| Input | Input Voltage | 220VAC-240VAC |
| Frequency Range(Hz) | 50/60Hz | |
| Input Current | 0.07Amax@230VAC | |
| Power Factor | 0.95@230VAC, Full load | |
| Efficiency | 81%@230VAC, Full load | |
| THD | 10%@230VAC, Full load | |
| Standby power | <0.5W | |
| No-load power | <0.5W | |
| Inrush Current | Cold start,4.68A@230V 22.4us | |
| Output | Output Voltage | 9-45VDC |
| Voltage Accuracy | / | |
| Output Current | 120mA-350mA (NFC adjustable current, factory default 120mA, maximum on-load power 10W) | |
| Current Accuracy | ±5% | |
| Output Power | 10W Max. | |
| Output Power Range | 0W~10W | |
| PstLM | ≤1 | |
| SVM | ≤0.4 | |
| Dimming frequency | 20KHz | |
| Line Regulation | ±1% @Full load | |
| Load Regulation | ±0.5% @Full load | |
| Turn on delay Time | 0.75s, at230Vac (When the light begins to shine) | |
| Function | Dimming Type | DALI |
| Dimming Range | 0.1%-100% Dimming to OFF | |
| Dimming Curve | Logarithm | |
| Flicker free | Flicker free | |
| Protection | Short circuit | Hiccups, troubleshooting after self-recovery |
| Over Current | / | |
| Over load | Load power ≥130% protection; Current down, troubleshooting output normal | |
| Over Voltage | Hiccups, troubleshooting after self-recovery | |
| Over temperature | / | |
| Safety& EMC | Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA I/P-DALI( Signal port ):1500VAC/1min/5mA O/P-DALI( Signal port ):1500Vac/1min/<5mA | |
| Safety Standards | CCC (China) GB19510.1，GB19510.14 TUV (Germany) EN61347-1，EN61347-2-13，EN62493 | |
| CB (CBmember states) IEC61347-1，IEC61347-2-13 CE (European Union) EN61347-1，EN61347-2-13，EN62384 | ||
| RCM (Australia) AS 61347-1，AS 61347-2-13 ENEC (Europe) EN61347-1，EN61347-2-13，EN62384 | ||
| EMC Emission | CCC (China) GB/T17743，GB17625.1 | |
| CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | ||
| RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | ||
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Environment | Working Temp. | -20℃~50℃ |
| Storage Temp. | -40℃~85℃ | |
| Storage Humidity | 20-90%RH (No condensation) | |
| Others | RoHS | Comply with 2011/65/EU |
| tc | 75℃ | |
| material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:75℃ | |
| Warranty Condition | 5years | |
| Switch Cycle | 25,000times | |
| Body size | 125*29.6*22.6mm (L*W*H) | |
| Packing(weight) | Net weight: 72g±5%/PCS; 120PCS/Carton; 9.14kg±5%/Carton; Carton Size: 433*230*200mm(L*W*H) | |
| Noise | In a quiet environment, no noise beyond 30-50cm | |
| Remark | All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions. | |
