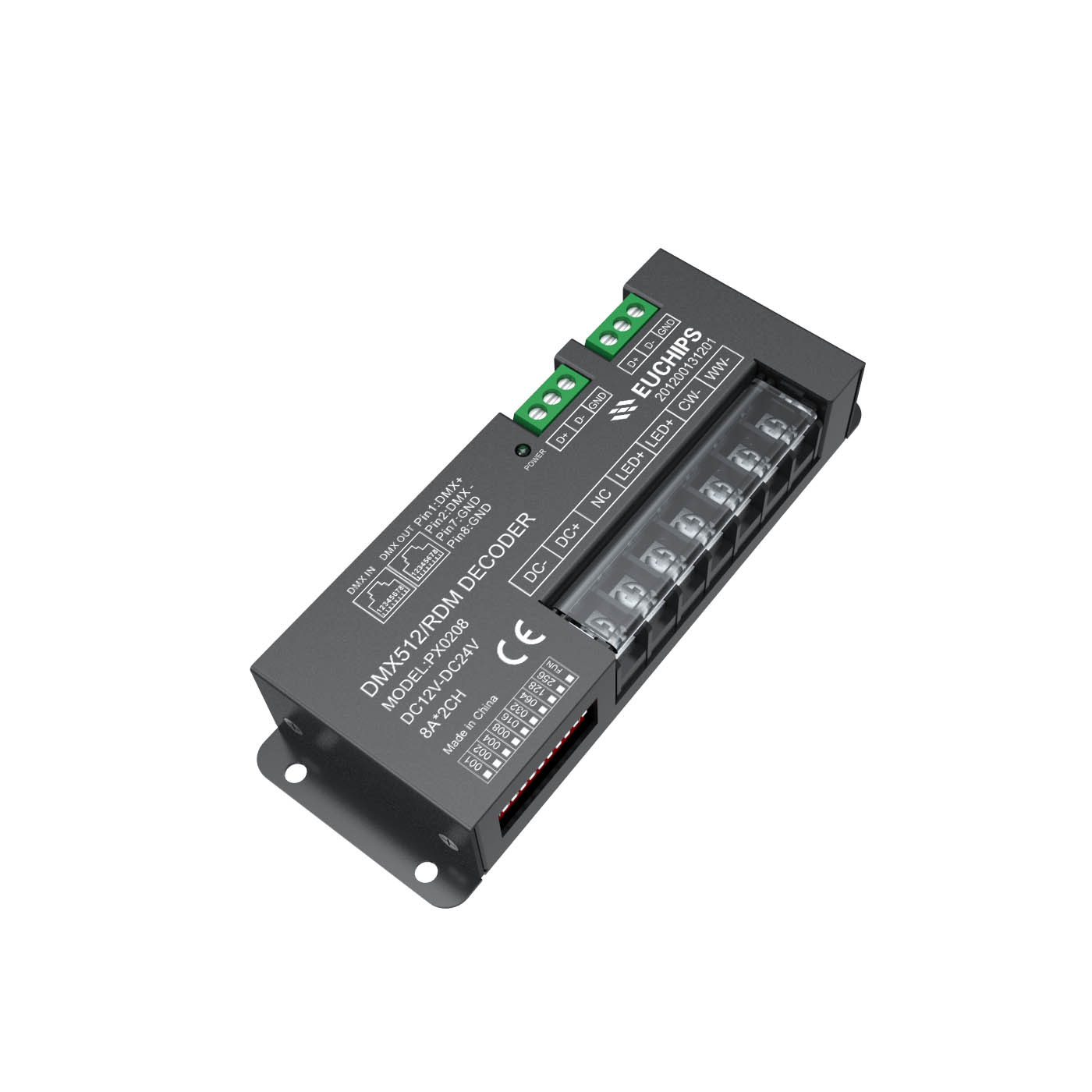

8A*2ch CV 12-24VDC DMX Decoder PX0208

8A*2ch CV 12-24VDC DMX Decoder PX0208

Welcome to the PX series DMX512/RDM decoder drivers. PX series adopts advanced microcomputer control technology to convert DMX-512/1990, RDM/2009 standard digital control signals widely used in the world into analog control signals. 2 output channels can be selected, each channel can achieve 256 control levels, The invention can be used for the connection of the computer digital output light-adjusting table and the analog silicon box, and the use occa sions of the control of the LED lamp for the building and the lamp decoration.

Features

· Comply with DMX512 international standard protocol
· 256 level brightness adjustment
· 2 channels of constant voltage output, single channel maximum 8 amp driving output
· With the control system, it can achieve rich change effects
· DMX address of lamps can be set freely. In DMX mode, the DMX address is set manually by dip switch. In RDM mode, the host computer assigns addresses
· Good anti-interference, over current, short circuit protection, self-recovery function
· With RDM remote management protocol, it can browse and set parameters, modify DMX address, identify equipment and other operations through RDM master
· No stroboscopic

Technical Parameters
