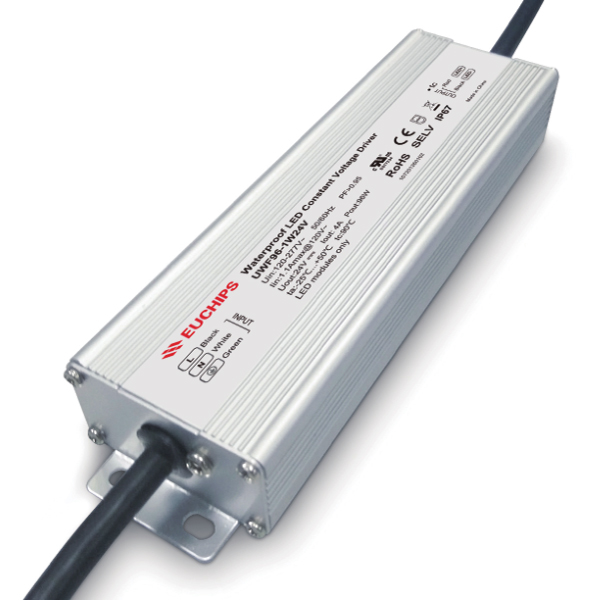

96W 24VDC Non-dimmable Waterproof CV Driver UWF96-1W24V

Short Description:

  • Item No.: UWF96-1W24V
  • Input Voltage: 120-277VAC
  • Output Current: 4A
  • Output Voltage: 24VDC
  • Output Power: 96W
  • Dim Mode: Non-dimmable
  • G.W.: 430g
  • Size: 180*50*27mm

Product Detail

Product Tags

96W 24VDC Non-dimmable Waterproof CV Driver UWF96-1W24V

Features

·Width voltage input,full power output
·Design of metal shell, improving heat dissipation performance
·Isolated design,safe and reliable
·Protections:Over load,Short circuit,over voltage
·Comply with CE/UL/SELV
·Protection grades is as high as IP67
·5 years warranty

Technical Parameters

Model UWF96-1W24V
Input Efficiency 88%@230VAC, Full load
Voltage 120VAC-277VAC
Frequency 50~60Hz
Power Factor >0.95@230VAC, Full load
Standby power <0.5W
Current 1.1Amax@120VAC
Inrush Current Cold start 50A@230VAC
Output Current/Voltage/Power 4A/24VDC/96W
Voltage Tolerance ±4%
Channel 1
Start Delay <2s, at 230Vac
Protection Short Circuit Auto recovery when failure is removed.
Over Voltage <36VDC Shut down the output, After restart recovers automatically.
Over Load <5.4A auto recovery when failure is removed.
Safety Surge L-N: 2kV
Withstand Voltage I/P-O/P:3000VAC/5mA I/P-PG:1500VAC/5mA O/P-PG:500VAC/5mA
Safety Standards UL8750(type”HL”),CSA C22.2 No.250.13-12 ; EAC TC004,UL60950-1,TUV EN60350-1; ,J61347-1,J613447-2-13 GB19510.1,GB19510.14,UL879
Others Working Temp. -25℃ ~+50℃
Storage Temp.; Humidity -40℃ ~85 20-90%RH
Tc 90℃
Material Metal
IP Rating IP67
Lifetime 50,000h@tc:85℃
Warranty Condition 5 years
Switch Cycle >25,000 times
Packing Size Net weight: 430g±5%/PCS; 30PCS/Carton; 13kg±5%/Carton; Carton Size: 365*215*200mm(L*W*H)
Dimension 180*50*27mm(L*W*H)
