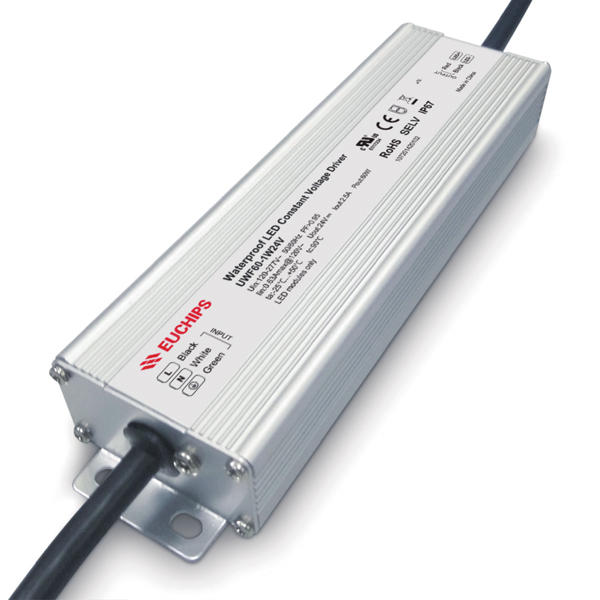

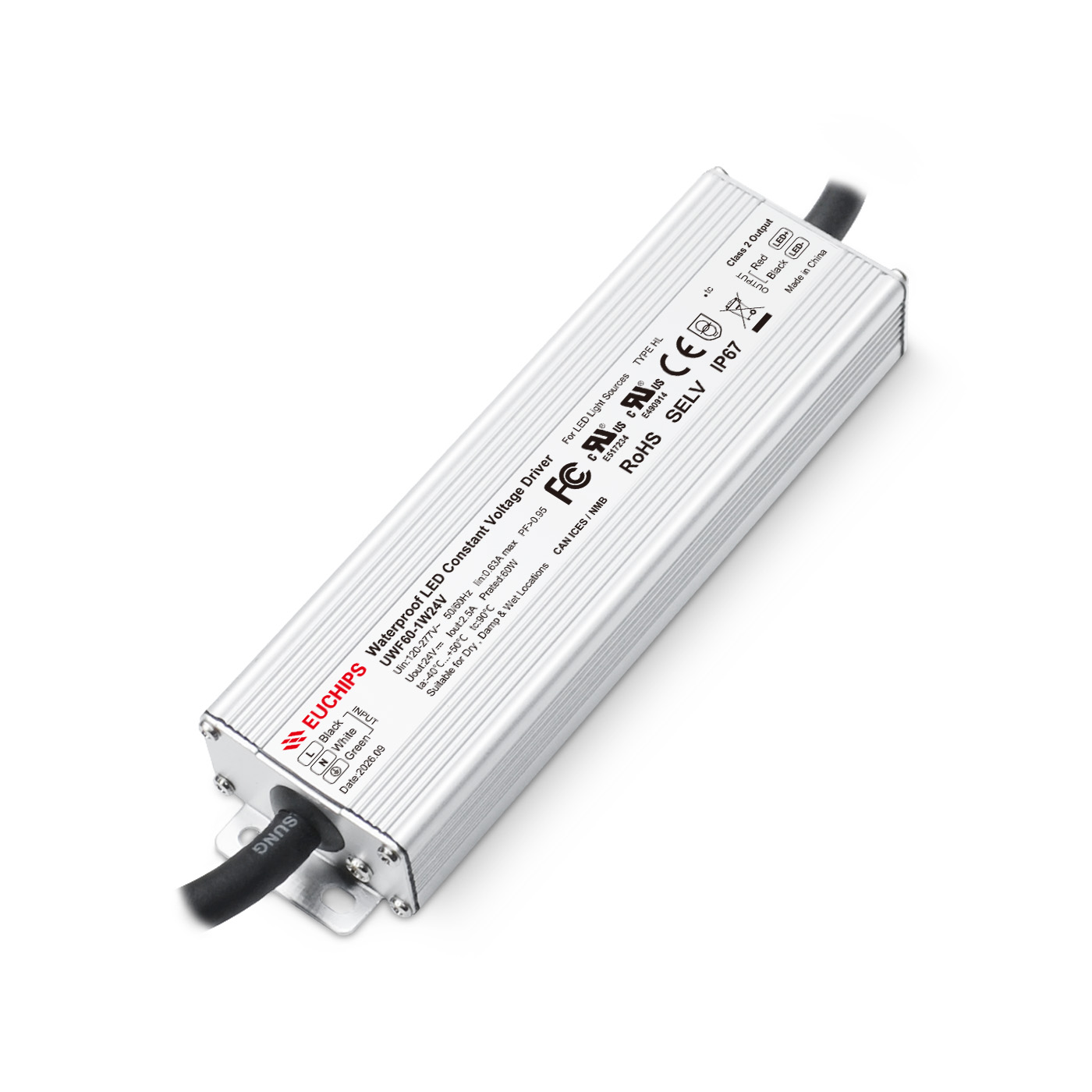

60W 24VDC Non-dimmable Waterproof CV Driver UWF60-1W24V
60W 24VDC Non-dimmable Waterproof CV Driver UWF60-1W24V
Features
• Rated input voltage range: 120-277Vac.
• Isolated constant voltage design.
• Built-in active PFC function.
• No-Load Power < 0.5 W.
• Class 2 Output.
• All-around protection: SCP, OLP, OVP
• Input surge protection: Differential mode: 4kV, Common mode: 6kV.
• IP67 design for indoor and outdoor applications. suitable for dry / damp / wet locations
• Safety according to CE & UL8750 &FCC Part 15 class B.
• 5-year warranty
Models
|
Model Number |
Input Voltage Range | Max. Output Power | Output Voltage | Output Current Range | Efficiency (Typ.) |
PF (Typ.) |
THD (Typ.) |
|
UWF60-1W24V |
90-305Vac |
60W |
24Vdc | 0-2.5A |
90% |
0.97 |
10% |
Note:
1. All specifications are measured at 25℃ ambient temperature, input voltage 230Vac, and the typical value tested by full load.
Technical Parameters
|
Parameter |
Min. |
Typ. |
Max. |
Remark | |
|
Input |
Rated Input AC Voltage |
120Vac |
230Vac |
277Vac |
|
| Input AC Voltage Range |
90Vac |
- |
305Vac |
Reference derating curve | |
| Frequency Range |
47Hz |
50/60Hz |
63Hz |
||
| Input AC Current |
- |
- |
0.63A |
At 120Vac input and 100% load | |
| Input AC Power |
- |
- |
75W |
At 120Vac input and 100% load | |
| Leakage Current |
- |
- |
0.70mA |
IEC 60598-1; 240Vac/50Hz | |
|
0.75MIU |
UL 8750;277Vac/60Hz. | ||||
| Inrush Current |
- |
- |
35A |
At 120Vac input and 100% load, 25℃ Cold Start | |
|
50A |
At 230Vac input and 100% load, 25℃ Cold Start | ||||
|
60A |
At 277Vac input and 100% load, 25℃ Cold Start | ||||
| No-load Power |
- |
- |
0.5W |
At 230Vac input | |
| Power Factor |
0.95 |
0.98 |
- |
At 120Vac, 50-60Hz, 70%-100% load | |
|
0.94 |
0.97 |
- |
At 230Vac, 50-60Hz, 70%-100% load | ||
|
0.90 |
0.95 |
- |
At 277Vac, 50-60Hz, 70%-100% load | ||
| THD |
- |
10% |
20% |
At 120-277Vac, 50-60Hz, 70%-100% load | |
|
Parameter |
Min. |
Typ. |
Max. |
Remark | |
|
Output |
Output Voltage Range |
22.8V |
24V |
25.2V |
±5% |
| Open Circuit Voltage |
- |
- |
25.2V |
At 100% load, 20 MHz BW | |
| Total Output Voltage Ripple(Pk-Avg) |
-2% |
- |
+2% |
At 100% load, 20 MHz BW | |
| Output Current Range |
- |
- |
2.50A |
||
| Efficiency @120Vac |
86.5% |
88.0% |
- |
Measured at 100% load | |
| Efficiency @230Vac |
88.0% |
89.5% |
- |
Measured at 100% load | |
| Efficiency @277Vac |
88.5% |
90.0% |
- |
Measured at 100% load | |
| Startup Overshoot Voltage |
- |
- |
5% |
At 100% load | |
| Line Regulation |
-1% |
- |
+1% |
At 100% load | |
| Load Regulation |
-3% |
- |
+3% |
Input Voltage 100-240Vac, load changes from 70% to 100%. | |
| Turn-on Delay Time |
- |
- |
1.5s |
At 120-277Vac input and 100% load | |
| Dynamic Response deviation |
-2.0V |
- |
+2.0V |
R/S: 1 A/μs, 25% ~ 100% load. | |
| Dynamic Response settling time |
- |
- |
10ms |
||
|
Other Characteristic s |
Operating Case Temperature For safety (Tc) |
-40℃ |
25℃ |
+90℃ |
|
| Operating Ambient TemperatureFor safety (Ta) |
-40℃ |
25℃ |
+50℃ |
At 120-277VAC input | |
| Operating Case Temperature For warranty (Tc) |
-40℃ |
25℃ |
+75℃ |
Humidity: 10% RH to 95% RH | |
| Storage Temperature (Ta) |
-40℃ |
25℃ |
+85℃ |
Humidity: 20% RH to 95% RH | |
| Altitude |
-65m |
- |
4000m |
||
| Temperature Coefficient |
-0.06%/℃ |
- |
+0.06%/℃ |
Tc:0 ℃~90℃ | |
| Over Load Protection |
130%load |
- |
180%load |
Self-recovery | |
| Short Circuit Protection |
- |
- |
- |
Self-recovery, short circuit without damage | |
| Lifetime (Tc≤85℃) |
≥50,000 hours |
At 230Vac,100% load, please refer to lifetime vs. case temperature curve | |||
| MTBF |
200, 000 hours |
At 230Vac,80% load, Ta=25 ℃ (MIL-HDBK-217F) | |||
| Warranty |
5 years |
Tc ≤ 75℃ | |||
| Net Weight |
250g |
||||
| Dimension | 145mm*40.8mm*22.5mm | L x W x H | |||
| Package | 30PCS/Carton; 7.6kg±5%/Carton; Carton Size: 270*203*186mm | L x W x H | |||
Note: All the parameters above are tested Ta 25℃ and LED load, unless specified.
