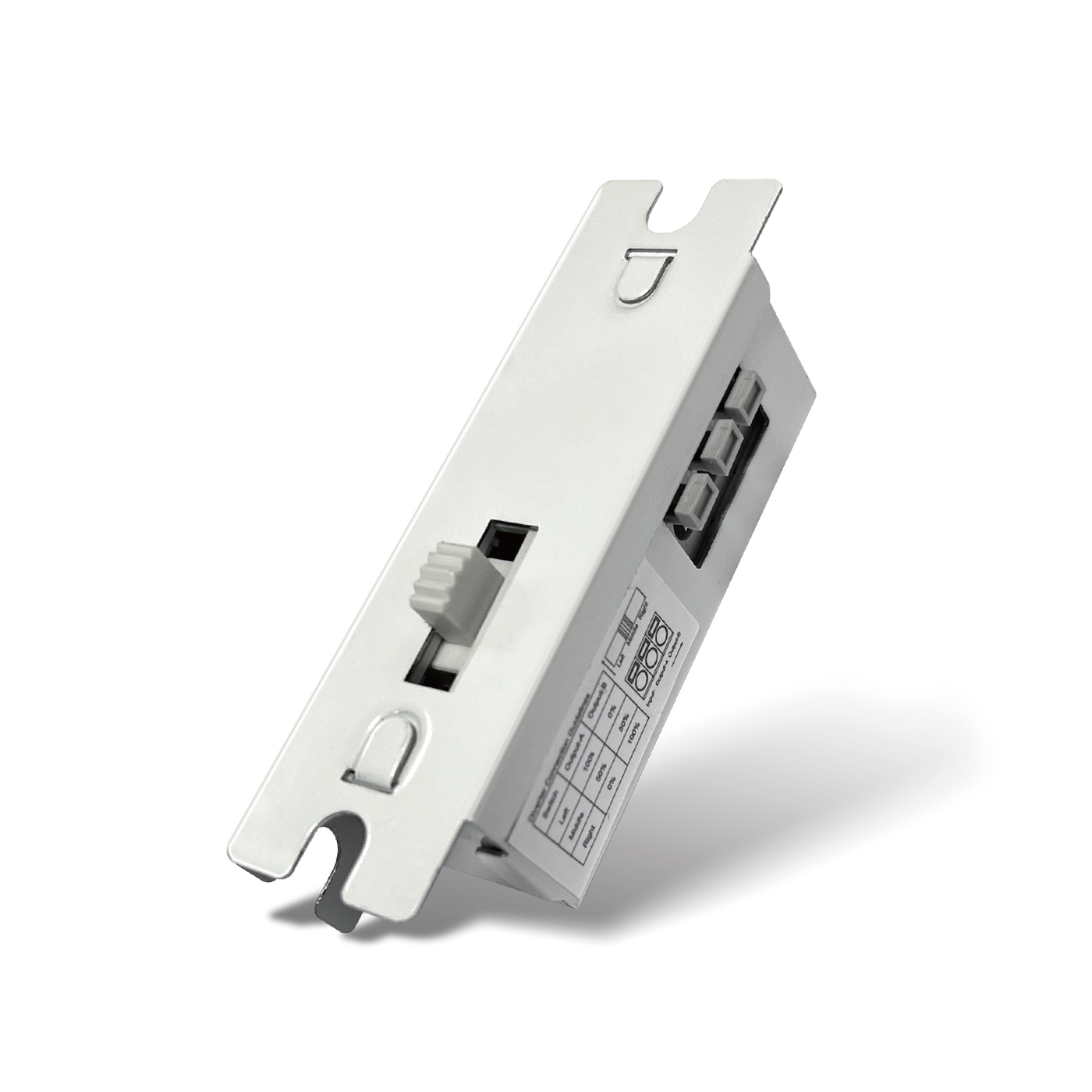

Current Distributor ARC-CCT DIMMER-3
Current Distributor ARC-CCT DIMMER-3

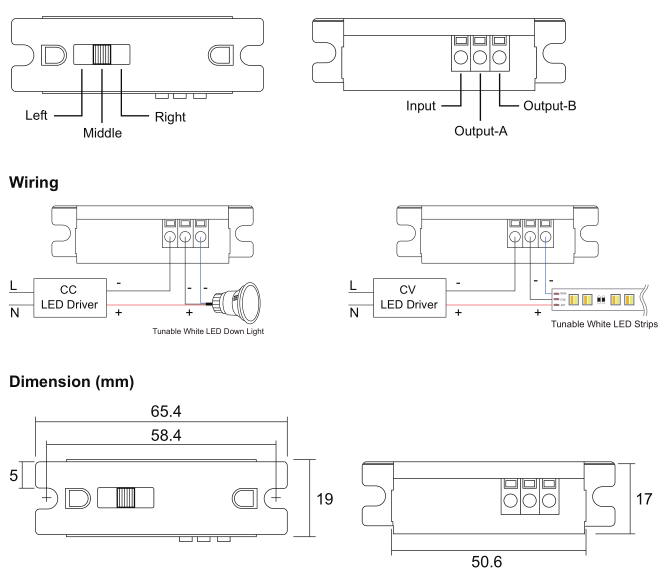

Function Diagram
| Switch | Output-A | Output-B |
| Left | 100% | 0% |
| Middle | 50% | 50% |
| Right | 0% | 100% |
Use the switch can change the output current channel.
1, when the switch on the left , the output A is 100%, output B is 0%.
2, when the switch on the middle , the output A is 50%, output B is 50%.
3, when the switch on the right , the output A is 0%, output B is 100%.
